Doorman™ Pet Door
Installation and Setup Instruction
3 Setup and Operation Instructions
3.1
Electronics Installation
The installation of the electronics module is required for every Doorman assembly. This can be done
before or after the kit is installed in a door or wall.
3.1.1 RAC00-17200 and RAC00-17201 (Basic Doorman)

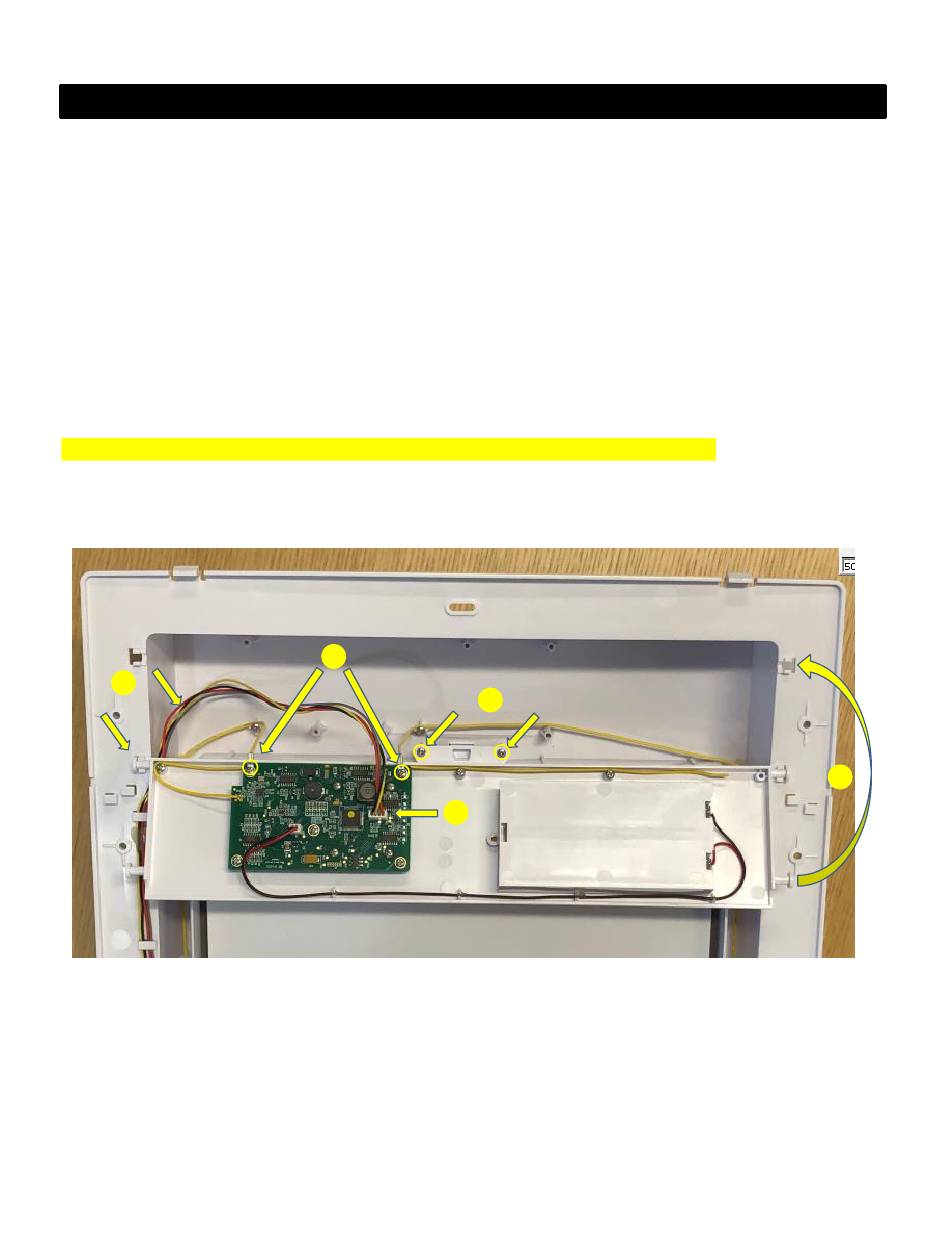

Unpackage the Boundary Plus
1. Insert the PIR sensor plug into the opening and secure with the two screws enclosed.
2. Snap the bottom two lugs of the Module into the bottom two catches on the Doorman Kit frame.
Ensure the Locking Mechanism wire harness is fed under the module.
3. Remove the two-bottom Printed Circuit Board Assembly (PCBA) mounting screws and connect
the loop wire to the PCBA with the mounting screws.
NOTE: The Doorman will not work if the loop wire is not connected.
IMPORTANT: DO NOT short ring terminal/s to other components on circuit board.
4. Connect the Locking Mechanism wire harness to the PCBA.
5. Rotate the module up and snap the top two lugs into the top two catches of the frame.
2
U:\My Documents\Invisible Fence\Field Testing\Boundary Plus 2.0\Doorman\210318co Doorman Install Manual.docx
®
Doorman Kit and the Boundary Plus Doorman Module.
