Rac00-17201 Boundary Plus ® Doorman Module; Rac00-17202 Boundary Plus Smart ™ Doorman Module - INVISIBLE FENCE Doorman Installation And Setup Instruction

®
Invisible Fence Brand
Doorman™ Pet Door
Installation and Setup Instruction
2.1.2 RAC00-17201 BOUNDARY PLUS

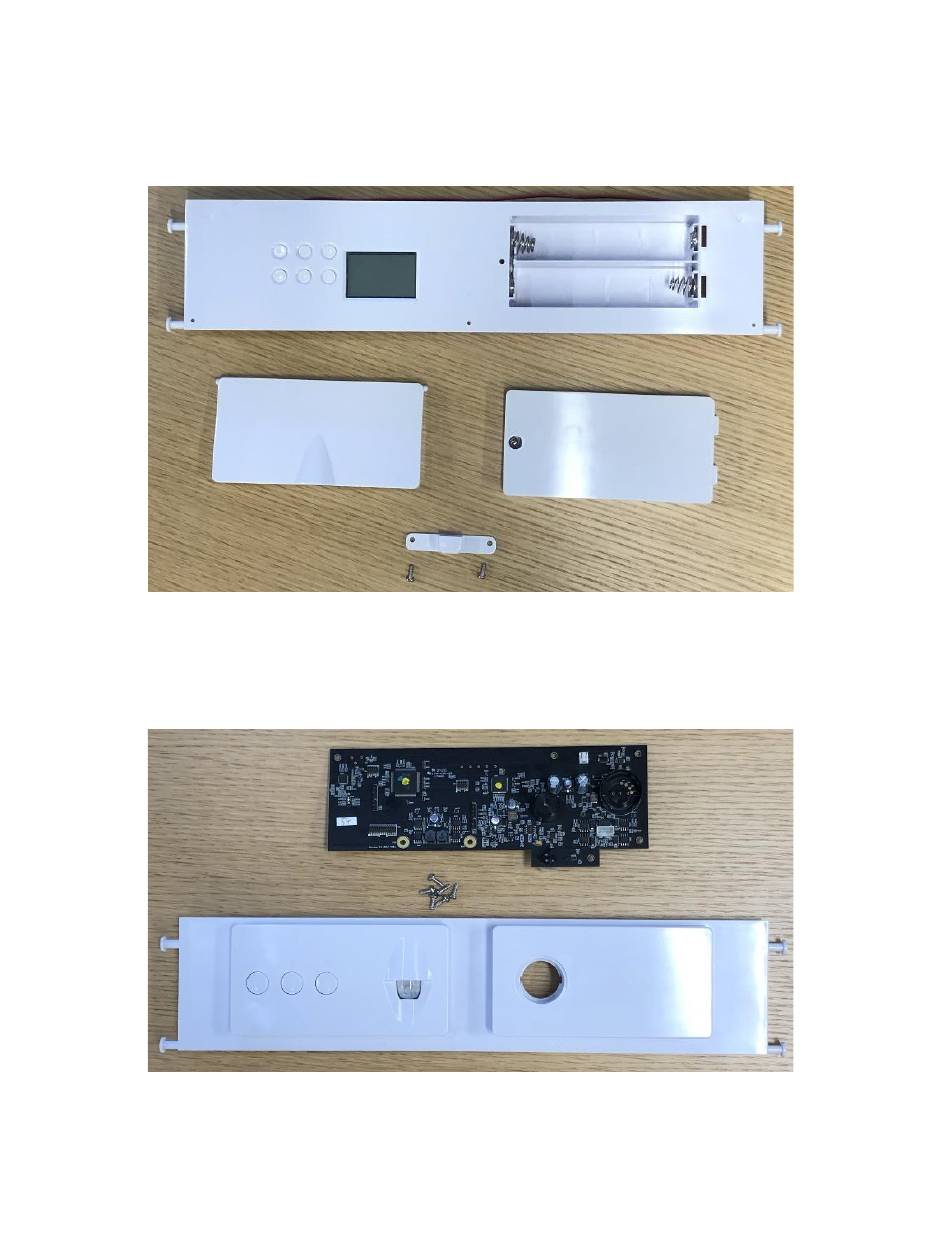

Image 2 below shows all parts included with the Boundary Plus Doorman Module. This SKU should be
selected for an 800/BP Doorman replacement or new install. These are the same electronics that are in the
current Doorman assembly.
2.1.3 RAC00-17202 BOUNDARY PLUS SMART
Image 3 below shows all parts included with the Boundary Plus Smart Doorman Module. This SKU
should be selected when installing a Doorman with the Boundary Plus Smart System.
Main Board
U:\My Documents\Invisible Fence\Field Testing\Boundary Plus 2.0\Doorman\210318co Doorman Install Manual.docx
®
DOORMAN MODULE
Control Panel
UI Cover Flap
AUTO LOCK UNLOCK
Battery Cover
PIR Plug and Screws
Image 2
™
DOORMAN MODULE
Main Board Mounting Screws
Control Panel
Image 3
4 of 22
