Page 11: Sigma Control 2 Quick Installation Guide

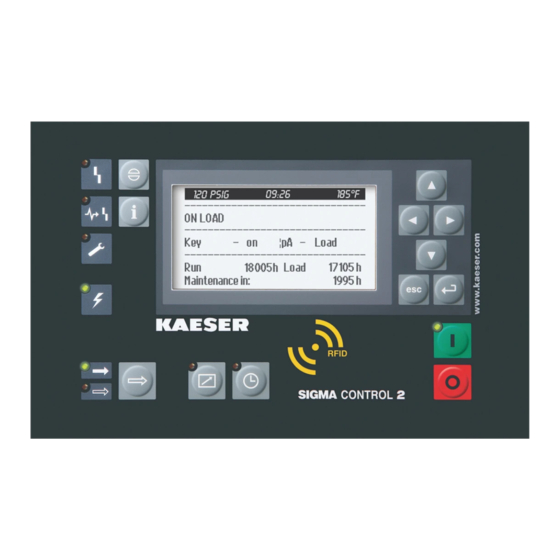

SIGMA CONTROL 2 Quick installation guide Operating elements 1 SIGMA CONTROL 2 Quick installation guide Operating elements Fig. 1 Operating elements Item Description Function «Up» Scrolls up the menu options. Increases a parameter value. «Left» Jumps to the left. Moves the cursor position to the left.
Page 12: Display Elements
SIGMA CONTROL 2 Quick installation guide Display elements Display elements Fig. 2 Display elements Item Description Function Display illuminates green when the machine switched on. Display Graphic display with 8 lines and 30 characters per line. Time control Continuous green light when the machine is controlled by the timer.
Page 13: Functions - Overview
SIGMA CONTROL 2 Quick installation guide Functions – Overview Menu No. Menu designation Function Performance data Displays measured data of the machine and its components (e.g., motors) Operating data Displays operating hours of the machine and its components Maintenance Displays maintenance data of the machine and its components...
Page 14: Tab. 4 Functions - Overview
SIGMA CONTROL 2 Quick installation guide Functions – Overview Function Menu Action steps Chapter Activating the – Activate the «Remote control» key – Press «Remote control» 8.2.13 «remote control» <Operating data – Operating hours – Motor / Block> Displaying oper‐...
Page 15: Regarding This Document Using This Document
The licenses can be also found under these addresses: http://www.gnu.org/licenses http://code.google.com/p/curve25519-donna/ Within three years from receipt of SIGMA CONTROL 2, you may obtain the complete source code of the copyright-protected software packages by sending a corresponding order to the following ad‐ dress:...
Page 16: Certification
➤ Please note the symbols and labels used in this document. 2.5.1 Warnings Warnings indicate danger potentially resulting in personal injury, if the measures specified are not taken. User Manual Controller SIGMA CONTROL 2 BLOWER ≥ 2.5.X 901700 09 HCE...
Page 17: Potential Damage Warnings
Potential effects when ignoring the warning are indicated here. ➤ The protective measures against the damages are shown here. ➤ Carefully read and fully comply with warnings against damages. User Manual Controller 901700 09 HCE SIGMA CONTROL 2 BLOWER ≥ 2.5.X...
Page 18: Other Alert Notes And Their Symbols
The cause is specified in the help text ... ➤ ... as is a solution. This symbol identifies important information or measures regarding the protection of the envi‐ ronment. Further information Further subjects are introduced here. User Manual Controller SIGMA CONTROL 2 BLOWER ≥ 2.5.X 901700 09 HCE...
Page 19: Technical Specifications 3.1 Controller Sigma Control 2
Graphical display [px] 255 x 128 Width [mm] Height [mm] Maximum number of lines/characters 8/30 Colours Black/white with grey scale Lighting LED backlit px ≙ pixel Tab. 9 Display data User Manual Controller 901700 09 HCE SIGMA CONTROL 2 BLOWER ≥ 2.5.X...
Page 20: Fig. 3 Mcs Interfaces
The positions of the interfaces X1–X6 are marked on the rear of the controller. Tab. 10 MCS interfaces Identification with RFID Equipment Card Characteristic Value Hardware on the SIGMA CONTROL 2 controller RFID reader Hardware (external) RFID Equipment Card Recognition distance [m] Max. 0.05 Frequency [MHz] 13.56...
Page 21: Input/Output Module
Power is provided by the power supply unit within the machine. Characteristic Value Rated voltage (stabilised) [V DC] Current consump‐ tion SIGMA CONTROL 2 with IOM 1 [A] IOM ≙ Input/Output module Tab. 13 Power supply specifications 3.1.2.2 Maximum cable lengths...
Page 22: Sensors
Value Sensing resistance (to DIN IEC 751) PT100 Connection Two-core Tab. 18 Resistance thermometer Communication modules SIGMA CONTROL 2 supports the following communication modules: ■ PROFIBUS (Option C41) ■ Modbus (Option C42) ■ DeviceNet (Option C43) ■ Modbus TCP (Option C44) ■...
Page 23: Profibus Module
Value Controller SIGMA CONTROL 2 SIGMA AIR MANAGER 4.0 SIGMA CONTROL 2 or ASCII, RS485 or RS232, galvanically isolated Baud rate Adjustable, possible baud rates: [bps] 1200 / 2400 / 4800 / 9600 / 19200 / 38400 / 57600 / 76800 / 115200...
Page 24: Modbus Tcp Module
7_9696_PA. Bold elements: Factory setting Tab. 21 Technical Specifications - SIGMA CONTROL 2 interface Assignment of the SIGMA CONTROL 2 interface The Modbus interface is galvanically isolated and features RS485 and RS2232 signals. To use the RS232 interface, connect Pin 2 with Pin 3.
Page 25: Devicenet Module
Baud rate [kbps] Automatic recognition, possible baud rates: 125–500 Input data [byte] Output data [byte] 128 Data content "Technical description SIGMA CONTROL 2 process image", document number 7_7601xPA. Tab. 26 Technical specifications - SIGMA CONTROL 2 communication module User Manual...
Page 26: Profinet Module
Feature Value Controller SIGMA CONTROL 2 SIGMA AIR MANAGER 4.0 SIGMA CONTROL 2 device (Slave) with RT classification, conformity class B, topology detection (LLDP), network management (SNMP), redundancy, MRP protocol Connection 2x RJ45 ports (Cat5e), 2-port switch, potential isolation Baud...
Page 27: Ethernet/Ip-Module
Housing Cable shield — High-impedance (1 MOhm/47 nF) connection with func‐ tional earthing (FE) * Position of pins 1 through 8, see chapter 9 Tab. 29 Assignment of the SIGMA CONTROL 2 interface Recommended conduit Feature Value Conductor PROFINET conductor, CAT5 shielded, CU, for example: 7.7629.0 Plug Bus plug RJ45, IP20, for example: 7.7628.0 or 7.7628.1...
Page 28: Tab. 32 Configuration Of The Ethernet/Ip-Interface
Value Conductor Network conductor, CAT5 shielded, CU, for example: 7.7629.0 Plug Bus plug RJ45, IP20, for example: 7.7628.1 Maximum cable length [m] Tab. 33 EtherNet/IP-Interface - Cabling recommendation User Manual Controller SIGMA CONTROL 2 BLOWER ≥ 2.5.X 901700 09 HCE...
Page 29: Safety And Responsibility Basic Instructions
The safety regulations of the machine in which SIGMA CONTROL 2 is installed apply. Specified use SIGMA CONTROL 2 is solely intended for the control of machines in which SIGMA CONTROL 2 is factory-installed. Any other use is considered incorrect. The manufacturer is not liable for any dam‐...
Page 30: Design And Function
All other sections apply to both machine types. The controller SIGMA CONTROL 2 controls, regulates, monitors, and protects the machine. All parameters needed to operate KAESER blowers can be set and displayed using the controller. Various user-dependent password mechanisms protect the parameters.
Page 31: Fig. 4 System Structure
Display of warning and maintenance messages for due maintenance on the display of the SIGMA CONTROL 2. The protective function allows: ■ Automatic machine shutdown on alarms that may lead to damage to the machine, e.g. overcur‐ rent, overpressure, overtemperature. User Manual Controller 901700 09 HCE SIGMA CONTROL 2 BLOWER ≥ 2.5.X...
Page 32: Operating Panel
Toggles between the LOAD and IDLE operating points. «Information» Displays the event memory. «Acknowledgement» Confirms/acknowledges alarms and warning messages. If permissible: Resets the fault counter (RESET). not for SXC Tab. 34 Operating elements User Manual Controller SIGMA CONTROL 2 BLOWER ≥ 2.5.X 901700 09 HCE...
Page 33: Display Elements
RFID is the abbreviation for “Radio Frequency Identification” and makes possible to identify per‐ sons and objects. Placing a suitable transponder in front of the RFID reader of the controller will automatically acti‐ vate the communication between transponder and SIGMA CONTROL 2. User Manual Controller 901700 09 HCE SIGMA CONTROL 2 BLOWER ≥...
Page 34: Display
Press «Enter» or one of the arrow keys to open the main menu. Here, you can set the language to be used for the display of texts or open the various submenus. User Manual Controller SIGMA CONTROL 2 BLOWER ≥ 2.5.X 901700 09 HCE...
Page 35: Operating Mode
The following parameters with their current values are displayed in line 8: ■ The hours during which the machine was activated ■ Remaining desiccant service life of the machine until the next maintenance. User Manual Controller 901700 09 HCE SIGMA CONTROL 2 BLOWER ≥ 2.5.X...
Page 36: Main Menu
The «Enter» key affects only the active line. In some lines, you can change more than one parameter. In this case, you must first select the specific parameter with the «Left» or «Right» keys. User Manual Controller SIGMA CONTROL 2 BLOWER ≥ 2.5.X 901700 09 HCE...
Page 37: Activating Keys With Check Boxes
5.4.4 Activating keys with check boxes Certain keys of the SIGMA CONTROL 2 are locked by default. Activate the corresponding check boxes in the active line of the display to unlock these keys. First, press «Enter» to switch into setting mode. The check box will flash.
Page 38: Kaeser Connect
For this purpose, you must generate a password once (see Chapter 8.2.5). KAESER CONNECT does not require additional software to do so. The display language of KAESER CONNECT can be set independently to the language used with SIGMA CONTROL 2. Fig. 9...
Page 39: Menu - Overview
■ Date display format ■ Time display format Backup Saving data via KAESER CONNECT from SIGMA CONTROL 2 to a PC not for SXC Tab. 39 KAESER CONNECT functions Further information For opening KAESER CONNECT, login and other procedures, please see chapter 8.3.
Page 40: Menu Structure
■ Statistics ■ DI/DO display ■ Current operating mode Status menu, please see ta‐ For details of the ble 41. Power switching with frequency converter (OFC/SFC) Screw blower User Manual Controller SIGMA CONTROL 2 BLOWER ≥ 2.5.X 901700 09 HCE...
Page 41 Filter transmission venting Electrical equipment Annual maintenance due on Configuration menu, please 5 Configuration For details of the see table 42. Power switching with frequency converter (OFC/SFC) Screw blower User Manual Controller 901700 09 HCE SIGMA CONTROL 2 BLOWER ≥ 2.5.X...
Page 42 ■ Block ■ Sound enclosure cooling ■ AFxM-valve ■ Aftercooler Components menu, please For details of the see table 45. Power switching with frequency converter (OFC/SFC) Screw blower User Manual Controller SIGMA CONTROL 2 BLOWER ≥ 2.5.X 901700 09 HCE...
Page 43: Tab. 40 Menu Structure Of Main Menu
Load (FAD) since/Reset Motor starts total since/Reset Motor starts /h Motor starts /d 1.3 DI/DO display 1st I/O module DI/DO display only visible in the event of parametrisation error User Manual Controller 901700 09 HCE SIGMA CONTROL 2 BLOWER ≥ 2.5.X...
Page 44: Tab. 41 Status Menu
Model: Date/Time Time zone ■ Time server ─ active: ─ IP address Date format Time format Pressure unit Temperature unit Display illumination Power switching with frequency converter (OFC/SFC) User Manual Controller SIGMA CONTROL 2 BLOWER ≥ 2.5.X 901700 09 HCE...
Page 45 Load control Load on/Load off Load on/Load off ─ xA/xB Clock xA/xB RC dt maintenance hours Ramp up time Ramp down time: Power switching with frequency converter (OFC/SFC) User Manual Controller 901700 09 HCE SIGMA CONTROL 2 BLOWER ≥ 2.5.X...
Page 46: Tab. 42 Configuration Menu
External message 2 ─ External message 3 ■ Switch ─ ─ ─ ─ ─ ─ ─ block speed Power switching with frequency converter (OFC/SFC) Configuration menu Tab. 42 User Manual Controller SIGMA CONTROL 2 BLOWER ≥ 2.5.X 901700 09 HCE...
Page 47: Tab. 43 Communication Menu
The following KAESER communications mod‐ ules may be used: ■ PROFIBUS ■ Modbus ■ Modbus TCP ■ DeviceNet ■ PROFINET ■ EtherNet/IP Communication menu Tab. 43 User Manual Controller 901700 09 HCE SIGMA CONTROL 2 BLOWER ≥ 2.5.X...
Page 48: Tab. 44 Connections Menu
Master ─ SAM 4.0 active: Send/Receive Send ─ IP address ─ Port ─ Communication error Start td Timeout Load signal Restart Timeout Cycle time Connections menu Tab. 44 User Manual Controller SIGMA CONTROL 2 BLOWER ≥ 2.5.X 901700 09 HCE...
Page 49 Motor temperature ─ Collection ─ ■ Greasing system ─ ─ ─ Interval ─ Target/Actual ─ Alarm ─ td/Actual Motor type Power switching with frequency converter (OFC/SFC) Screw blower User Manual Controller 901700 09 HCE SIGMA CONTROL 2 BLOWER ≥ 2.5.X...
Page 50 ─ ─ ─ ─ ─ n_ref, p ■ Speed monitoring ■ Vibration monitoring ─ VSE Status ─ ─ ↑ V1 Power switching with frequency converter (OFC/SFC) Screw blower User Manual Controller SIGMA CONTROL 2 BLOWER ≥ 2.5.X 901700 09 HCE...
Page 51: Control Modes
Screw blower Components menu Tab. 45 Control modes The behaviour of machines with SIGMA CONTROL 2 is determined by three software control modes interacting with each other. 5.8.1 Ready control mode The ready control mode specifies whether individual machines or machines under master control can be activated.
Page 52: Operating Control
Tab. 46 SIGMA CONTROL 2 ready states When the operating voltage is applied to the SIGMA CONTROL 2 controller, the operating control is in OFF mode. If all faults are inactive, pressing «ON» produces the ON ready mode. If remote control is active, the remote load demand and remote idle demand signals are evaluated.
Page 53 The Load/Idle valve is open. IDLE The air generated by the compressor is vented into the atmosphere. The drive motor runs unloaded and consumes very little power. IDLE LED lights green. ■ User Manual Controller 901700 09 HCE SIGMA CONTROL 2 BLOWER ≥ 2.5.X...
Page 54 5.8.2.1 Operating control without load/idle valve When the operating voltage is applied to SIGMA CONTROL 2, the operation control is in STOP operating mode and then switches to READY mode. Triggered by the Load run command, the drive motor starts via the MOTOR START operating mode and switches to LOAD operating mode.
Page 55 The Stop command or the end of the shut-down switches the control to the STOP state. User Manual Controller 901700 09 HCE SIGMA CONTROL 2 BLOWER ≥ 2.5.X...
Page 56: Installation And Operating Conditions
Direct sunlight (UV radiation) can destroy the display screen. ➤ Do not allow the display screen to be subjected to direct sunlight. ➤ See the machine's operating manual for required conditions. User Manual Controller SIGMA CONTROL 2 BLOWER ≥ 2.5.X 901700 09 HCE...
Page 57: Installation
Time control: Risk of injury caused by unexpected starting! ➤ Make sure the power supply disconnecting device is switched off before commencing any work on the machine. Tab. 49 Machine identification User Manual Controller 901700 09 HCE SIGMA CONTROL 2 BLOWER ≥ 2.5.X...
Page 58: Initial Start-Up Outline
8 Initial Start-up Outline SIGMA CONTROL 2 was designed and developed for a number of applications. The settings that can be made are correspondingly varied. It is possible that only a few of these settings are needed for the initial start-up. This depends on the application.
Page 59: Selecting Menu Options
All menu options can be selected with the «Down», «Up» and «Enter» keys. Example: Select the < Configuration – General > menu option 1. Switch on the machine and wait for SIGMA CONTROL 2 to start. The operating mode is displayed.
Page 60: Setting The Language
8 0 ° C Main menu Active line with current set language ----------------English GB---------------- Sub-menu ▶1 Status Sub-menu ▶2 Performance data Sub-menu ▶3 Operating data Sub-menu ▶4 Maintenance Sub-menu ▶5 Configuration User Manual Controller SIGMA CONTROL 2 BLOWER ≥ 2.5.X 901700 09 HCE...
Page 61: Noting The User Name
8.2.4 User log-on with RFID Equipment Card The RFID Equipment Card enables you to easily and quickly log on at SIGMA CONTROL 2. It au‐ thorises you to access advanced functions of the controller. Advanced access rights allow you to: ■...
Page 62: Generating A Password
In the event that your RFID Equipment Card is damaged or lost, you must manually log on to SIGMA CONTROL 2. A password is also required to use KAESER CONNECT to log on at SIGMA CONTROL 2 (see chapter 8.3).
Page 63: Manual User Log-On
Name line. 2. Use «Up» or «Down» to select the 3. Press «Enter». The setting mode is active. A column with alphanumeric characters is displayed. The selected character flashes. User Manual Controller 901700 09 HCE SIGMA CONTROL 2 BLOWER ≥ 2.5.X...
Page 64: Create The Master Rfid Equipment Card
11. Use «Up» or «Down» to select the 12. Press «Enter». Current access level 2 is displayed. Result You are now logged on to SIGMA CONTROL 2 with access level 2, having manually input your user name and the password. 8.2.7 Create the master RFID Equipment Card If you are running several KAESER machines with the SIGMA CONTROL 2 control it may make sense to create a master RFID Equipment Card with which you can log onto all machines.
Page 65: Checking/Setting Time And Date
See chapter 8.2.16. <Configuration – General> menu. 1. Open the 5.1 Date/Time line. 2. Use «Up» or «Down» to select the User Manual Controller 901700 09 HCE SIGMA CONTROL 2 BLOWER ≥ 2.5.X...
Page 66 4. Press «Enter». 00.00.00 flashes. The display for days 5. Use «Up» or «Down» to set the day. 6. Press the «Right» arrow. 00.00.00 flashes. The display for months User Manual Controller SIGMA CONTROL 2 BLOWER ≥ 2.5.X 901700 09 HCE...
Page 67: Set The Time Zone
11. Press «Escape» repeatedly to leave this menu. 8.2.9 Set the time zone Set the time zone for the SIGMA CONTROL 2 to ensure the timely automatic conversion from win‐ ter time (standard time) to daylight savings time, for example. Precondition Access level 2 is activated.
Page 68: Tab. 52 Possible Settings For The Time Format
0 8 : 1 5 A M 8 0 ° C Menu 5.1 General Europe/London ······························ ▶2 Time server ······························ Date format MM/DD/YY time format Time format hh:mm:ssAM/PM 3. Press «Enter». hh:mm:ssAM/PM indication flashes. User Manual Controller SIGMA CONTROL 2 BLOWER ≥ 2.5.X 901700 09 HCE...
Page 69: Tab. 53 Possible Settings For The Pressure Unit
The setting is applied. 6. Press «Escape» repeatedly to leave this menu. Setting the temperature display units Set the temperature unit for display: Format Example °C 46°C 319K User Manual Controller 901700 09 HCE SIGMA CONTROL 2 BLOWER ≥ 2.5.X...
Page 70: Setting The Display Illumination
Tab. 55 Display illumination Precondition Access level 2 is activated. <Configuration – General> menu. 1. Open the 5.1 2. Use «Up» or «Down» to select the Display illumination line. User Manual Controller SIGMA CONTROL 2 BLOWER ≥ 2.5.X 901700 09 HCE...
Page 71: Setting The Contrast And The Brightness
Contrast and brightness are set. 8.2.13 Activating the remote control The «remote control» key on the operating panel of the SIGMA CONTROL 2 can be activated or deactivated. Various menus offer check boxes for this setting. Precondition Access level 2 is activated.
Page 72: Ip Configuration
8.2.14 IP configuration For the SIGMA CONTROL 2 to be connected to the network, you must set the IP configuration (for KAESER CONNECT for example). If you use SIGMA CONTROL 2 as the master control of two machines, you set other network IP configuration menu (see chapter 8.7.4).
Page 73: Tab. 56 Network Parameters
192.168.001.001 Example address DNS Server 1 008.008.008.008 Example address DNS Server 2 008.008.004.004 Active line Restart network ☐ 12. Press «Enter». The check box Restart network will flash. User Manual Controller 901700 09 HCE SIGMA CONTROL 2 BLOWER ≥ 2.5.X...
Page 74: Setting The E-Mail Function
The network is restarted. The set network parameters are active. 8.2.15 Setting the e-mail function SIGMA CONTROL 2 is able to send messages via e-mail. For this purpose, a network connection with an SMTP server is required. Setting e-mail parameters Precondition Access level 2 is activated.
Page 75 Setting the controller 6. Set the e-mail parameters as described above: If SIGMA CONTROL 2 is connected via SIGMA NETWORK to SAM 4.0 and emails are to be SMTP forwarded via SAM 4.0, then enter the IP address of interface X6 of SAM 4.0 in the server: field.
Page 76: Setting The Time Server
8.2.16 Setting the time server If SIGMA CONTROL 2 is connected to the network, you can set the access to an SNTP server available in the Internet or a local Intranet. SIGMA CONTROL 2 then automatically imports the date and time settings and ensures continuous synchronisation of the internal clock with the exter‐...
Page 77: Kaeser Connect Benefits
12. Press «Escape» repeatedly to leave this menu. Result Access to the selected time server is active. The internal clock of SIGMA CONTROL 2 is permanently synchronised. KAESER CONNECT benefits Using an Internet-capable device with web browser, you can use KAESER CONNECT to remotely display these SIGMA CONTROL 2 menus: ■...
Page 78: Open Kaeser Connect
The user name (see chapter 8.2.3) and password (see chapter 8.2.5) are known. The controller's IP address is known, see chapters 8.2.14 and 8.7.4. 1. Use an Ethernet cable to connect SIGMA CONTROL 2 to the Internet-capable device or net‐ work.
Page 79: System Status Menu
7. Click to set the selected language Result KAESER CONNECT is displayed in the set language. 8.3.2 System status menu Precondition KAESER CONNECT for SIGMA CONTROL 2 is displayed. User Manual Controller 901700 09 HCE SIGMA CONTROL 2 BLOWER ≥ 2.5.X...
Page 80: Fig. 19 System Status Menu
Initial Start-up KAESER CONNECT benefits System status menu Fig. 19 System status menu element. 1. Click the System status menu is displayed Fig. 20 Main menu User Manual Controller SIGMA CONTROL 2 BLOWER ≥ 2.5.X 901700 09 HCE...
Page 81: Graphs Menu
Initial Start-up KAESER CONNECT benefits 2. Click in the SIGMA CONTROL 2 display. The Main menu is displayed. 3. Click the numbered lines. The system displays the corresponding sub-menus. 4. Press ESC repeatedly to leave this menu. 8.3.3 Graphs menu...
Page 82: Fig. 22 Control Keys
An SD card with sufficient free memory is inserted in the X5 SD card slot The SD card was inserted for the entire operating time of the machine. The SIGMA CONTROL 2 data recorder function is activated. Start: . 1. Enter the date and time for the start time in the required time period in End: .
Page 83: Messages Menu
■ Blower messages ■ System messages ■ Diagnostic messages Precondition KAESER CONNECT for SIGMA CONTROL 2 is displayed. Messages (illustration similar) Fig. 23 Messages menu element. 1. Click the Messages menu is displayed 2. Click the required message type. 3. Check messages.
Page 84: User Management Menu
User name: 6 to 16 characters, the second character must not be a number ■ Password: 6 to 16 characters Precondition The generated password is available. KAESER CONNECT for SIGMA CONTROL 2 is displayed. User Manual Controller SIGMA CONTROL 2 BLOWER ≥ 2.5.X 901700 09 HCE...
Page 85: Fig. 25 User Management Menu
Log on for write access: window User name: field. 3. Enter your user name in the Password: field. 4. Enter your password in the 5. Click OK. User management menu is displayed User Manual Controller 901700 09 HCE SIGMA CONTROL 2 BLOWER ≥ 2.5.X...
Page 86: Fig. 27 User Management Menu
1. Click the required user account in the list. Password: field. 2. Enter a new password in the Repeat password: field. 3. Re-enter the same new password in the 4. Click Update user. User Manual Controller SIGMA CONTROL 2 BLOWER ≥ 2.5.X 901700 09 HCE...
Page 87: Settings Menu
Settings menu Fig. 28 For example, you want to convert your units to US values: Precondition KAESER CONNECT for SIGMA CONTROL 2 is displayed. 1. Click the Settings menu element. 2. Click the arrow key for the unit of pressure.
Page 88: Save Data Menu
Initial Start-up KAESER CONNECT benefits 8.3.8 Save data menu Backup menu allows you to download data from SIGMA CONTROL 2 to the Internet-capable device. The following backup types are available: ■ Backup all ■ Log files ■ Settings ■ User information Precondition KAESER CONNECT for SIGMA CONTROL 2 is displayed.
Page 89: Kaeser Connect Exit
Result The data is downloaded to the Internet-capable device. 8.3.10 KAESER CONNECT exit In order to close KAESER CONNECTfor SIGMA CONTROL 2, click Logout in the header. ➤ Click Logout. Result The system displays a message confirming the successful logout.
Page 90: Displaying And Setting The Blower Properties
The installation elevation can be set within certain limits: Precondition Access level 2 is activated. 1. Open the 5.2 <Configuration – Blower properties> menu. Altitude line. 2. Use «Up» or «Down» to select the User Manual Controller SIGMA CONTROL 2 BLOWER ≥ 2.5.X 901700 09 HCE...
Page 91: Machine Start And Machine Stop
Automatic start/stop in timer mode Overview Time control ■ Select menu ■ Set clock program ■ Activating time control 8.5.1.1 Select the Time control menu Precondition Access level 2 is activated. User Manual Controller 901700 09 HCE SIGMA CONTROL 2 BLOWER ≥ 2.5.X...
Page 92: Tab. 61 User-Defined Clock Programme Machine On/Off
All current switching points are reset Reset ☐ ······························ Active line n.a. 00:00AM n.a. 00:00AM n.a. 00:00AM User-defined clock program No.: Time Function Tab. 61 User-defined clock programme machine ON/OFF User Manual Controller SIGMA CONTROL 2 BLOWER ≥ 2.5.X 901700 09 HCE...
Page 93: Tab. 62 Example Of A Machine On/Off Clock Program
3. Press «Enter». n.a. indication flashes. 4. Use «Up» or «Down» to set the weekdays. 5. Press the «Enter» key. The setting is applied. 6. Press the «Right» key. User Manual Controller 901700 09 HCE SIGMA CONTROL 2 BLOWER ≥ 2.5.X...
Page 94 Reset ☐ ······························ Switching point 01: Mon-Fri 06:30AM Switching point 02 Mon-Fri 12:00PM Switching point 03 Mon-Fri 01:00PM 3. Press the «Up» key. The check box is activated. User Manual Controller SIGMA CONTROL 2 BLOWER ≥ 2.5.X 901700 09 HCE...
Page 95: Automatic Start/Stop With Timer
Precondition The «Time control» key is activated; see chapter 8.5.1.3. ➤ Press the «Time control» key on the SIGMA CONTROL 2 operating panel to activate the time control. Time control LED on the operating panel of the SIGMA CONTROL 2 signalises with green Result continuous light that the machine is operated with activated time control.
Page 96: Automatic Restart" Function
The first machine may start immediately and does not require a delay time. Machine number Start time [sec] Delay time [sec] –– –– User Manual Controller SIGMA CONTROL 2 BLOWER ≥ 2.5.X 901700 09 HCE...
Page 97: Tab. 63 Delay Time For Automatic Restart
5. Press the «Enter» key. The setting is applied. Result You have adjusted the delay tome for the restart after a power supply failure from 1 s to 10 s. User Manual Controller 901700 09 HCE SIGMA CONTROL 2 BLOWER ≥ 2.5.X...
Page 98: Controlling Machine From A Remote Location
■ Activating the remote control On LED lights green. ■ Press the «ON »key. The Two methods are available to start the machine remotely from a control centre: User Manual Controller SIGMA CONTROL 2 BLOWER ≥ 2.5.X 901700 09 HCE...
Page 99 The setting is applied. 7. Press the «Right» key. 8. Press «Enter». The check box assigned to the input flashes. 9. Press the «Up» key. The check box is activated. User Manual Controller 901700 09 HCE SIGMA CONTROL 2 BLOWER ≥ 2.5.X...
Page 100 The setting is applied. 7. Press the «Right» key. 8. Press «Enter». The check box assigned to the input flashes. 9. Press the «Up» key. The check box is activated. User Manual Controller SIGMA CONTROL 2 BLOWER ≥ 2.5.X 901700 09 HCE...
Page 101: Operating Modes In Frequency-Controlled Machines
8.5.4.3 Activating the remote control ➤ Activate remote control see chapter 8.2.13. Result SIGMA CONTROL 2 remote control is activated. Operating modes in frequency-controlled machines Operating You can set various operating modes in frequency-controlled machines. Use the 5.4 modes menu for specifying the settings. The selection options for the operating modes depend on Current signal the configuration of the AII1.02 current signal.
Page 102: Current Signal Aii1.02
─ Precondition Access level 2 is activated. The operating mode is displayed. Fixed speed or Pressure control mode is set in the 5.4 <Configuration – Operating modes> menu. User Manual Controller SIGMA CONTROL 2 BLOWER ≥ 2.5.X 901700 09 HCE...
Page 103: Setting The Operating Mode
The setting mode is active. The currently set language flashes. 4. Use «Up» or «Down» to set the required operating mode. 5. Press «Enter». The setting is applied. User Manual Controller 901700 09 HCE SIGMA CONTROL 2 BLOWER ≥ 2.5.X...
Page 104: Constant Speed
4. Press «Enter». The setting is applied. ▶1Fixed speed line. 5. Use «Up» or «Down» to select the 6. Press «Enter». Fixed speed menu is displayed. The 5.4.1 User Manual Controller SIGMA CONTROL 2 BLOWER ≥ 2.5.X 901700 09 HCE...
Page 105: Pressure Control
Access level 2 is activated. <Configuration – Operating modes – Pressure control> menu. 1. Open the 5.4.2 2. Use «Up» or «Down» to select the Source actual pressure line. User Manual Controller 901700 09 HCE SIGMA CONTROL 2 BLOWER ≥ 2.5.X...
Page 106 Local set pressure 1.0bar 1.0rpm / mbar 1.00rpm / (mbar *s) Set pressure rise time Local set pressure . 4. Use «Up» or «Down» to set the value for User Manual Controller SIGMA CONTROL 2 BLOWER ≥ 2.5.X 901700 09 HCE...
Page 107 PI controller and is performed empirically. Precondition Access level 2 is activated. Starting value KP: 0.1 rpm / mbar Starting value KI: 0.01 rpm / (mbar *s) User Manual Controller 901700 09 HCE SIGMA CONTROL 2 BLOWER ≥ 2.5.X...
Page 108: External Speed Definition
Current signal AII1.02 menu to set the scaling of the 4–20 mA signal. The galvanic Use the 5.5.1 decoupling of the signal is performed via a buffer amplifier installed in the control cabinet. User Manual Controller SIGMA CONTROL 2 BLOWER ≥ 2.5.X 901700 09 HCE...
Page 109: Control With External Variable
Load off . Both target value pairs are used depending on the set operating mode. off , the following operating modes are available: In addition to ■ xA (permanently) ■ xB (permanently) User Manual Controller 901700 09 HCE SIGMA CONTROL 2 BLOWER ≥ 2.5.X...
Page 110 ▶3 External values control ------------------------------ Ramp up time External values control operating mode. 3. Use «Up» or «Down» to set the 4. Press «Enter». The setting is applied. User Manual Controller SIGMA CONTROL 2 BLOWER ≥ 2.5.X 901700 09 HCE...
Page 111 1rpm/% 10rpm/s/% Set value Actual value Set value ramp-up time Pressure control for the set‐ 2. Set the control parameters for the PI controller. See chapter 8.6.4 ting. User Manual Controller 901700 09 HCE SIGMA CONTROL 2 BLOWER ≥ 2.5.X...
Page 112: Sfc Acceleration Time
Ramp up time is the time from minimum speed to reaching the machine-specific maximum speed. Ramp up time and Ramp down time: which can be set at SIGMA CONTROL 2 The values for are added to the similar parameters that have already been set in the FC.
Page 113: Sam 4.0 Mode
Timer control (lowest priority) 8.7.2 SAM 4.0 mode You must modify the settings in SIGMA CONTROL 2 for the operation via SIGMA NETWORK us‐ ing, for example, the KAESER SIGMA AIR MANAGER 4.0 (SAM 4.0). Precondition SIGMA CONTROL 2 is connected to SAM 4.0 via SIGMA NETWORK and ready for operation (see the SAM 4.0 operating manual in the chapter “Installation”)
Page 114 Setting the machine for master control operation Setting SAM 4.0 mode The IP address for SAM 4.0 has been set on SIGMA CONTROL 2 at the factory: 169.254.100.100 and must not be changed. The same applies to Port 2000. 1. Open the 8.1.2.2 <Communication –...
Page 115 For the communication with SAM 4.0, the value of Start td must be set to 30 s. SIGMA CONTROL 2 can monitor the bus communication at user level. For this purpose, the bus master reads a value ("toggle bit") that changes with every bus cycle and returns it without change.
Page 116: Master Control Via Communication Module
In both cases, the communication module must be set for the actual application in the menu of SIGMA CONTROL 2. SIGMA CONTROL 2 supports the following KAESER communication modules: ■...
Page 117: Tab. 66 Setting The Starttd Parameter
Starttd parameter Tab. 66 Setting the SIGMA CONTROL 2 monitors the bus communication at log level (PROFIBUS). If there is a check Communication error , this monitoring in the Send mode can be switched off by deacti‐ box behind vating the check box.
Page 118: Tab. 67 Setting The Timeout Parameter
For this purpose, the bus master reads a value ("toggle bit") that changes with every bus cycle and returns it without change. SIGMA CONTROL 2 returns a bus alarm if the Timeout ). Activate monitoring by setting a check bit does not change for a time longer than set ( mark ☑.
Page 119: Tab. 68 Setting The Starttd Parameter
For this purpose, the bus master reads a value ("toggle bit") that changes with every bus cycle and returns it without change. SIGMA CONTROL 2 returns a bus alarm if the Timeout ). Activate the check box to enable monitor‐...
Page 120: Tab. 70 Setting The Starttd Parameter
For this purpose, the bus master reads a value ("toggle bit") that changes with every bus cycle and returns it without change. SIGMA CONTROL 2 returns a bus alarm if the Timeout ). Activate the check box to enable monitor‐...
Page 121: Tab. 72 Setting The Starttd Parameter
For this purpose, the bus master reads a value ("toggle bit") that changes with every bus cycle and returns it without change. SIGMA CONTROL 2 returns a bus alarm if the Timeout ). Activate the check box to enable monitor‐...
Page 122: Tab. 73 Setting The Timeout Parameter
Type line. and displays it in the 3. Select the data exchange direction: ► SIGMA CONTROL 2 ⇆ Bus master (SIGMA CONTROL 2 sends process data and receives Send/Receive or Master : Set Com module . control data): Send or ►...
Page 123: Tab. 74 Setting The Starttd Parameter
For this purpose, the bus master reads a value ("toggle bit") that changes with every bus cycle and returns it without change. SIGMA CONTROL 2 returns a bus alarm if the Timeout ). Activate the check box to enable monitor‐...
Page 124: Tab. 76 Setting The Starttd Parameter
For this purpose, the bus master reads a value ("toggle bit") that changes with every bus cycle and returns it without change. SIGMA CONTROL 2 returns a bus alarm if the Timeout ). Activate the check box to enable monitor‐...
Page 125: Master Control Of Two Machines In Master/Slave Operation
8.7.4 Master control of two machines in master/slave operation Two machines with SIGMA CONTROL 2 work as master/slave in the same air network. The mas‐ ter controls the machine with the controller configured as slave. For both machines to work in redundancy operation, the electrical connections and the set‐...
Page 126: Fig. 31 Direct Connection Of Two Sigma Control 2
24V range (blue wiring) of the ducts. 3. Attach the RJ45-plug to the cable end. 4. Plug the RJ45 plug into the Ethernet interface X1 of the SIGMA CONTROL 2 until it latches. For connecting the machines to a network (LAN) or switch: Connect the Ethernet cable for each machine to the LAN connection or switch.
Page 127 The controller of machine 1 is set as master. 8.7.4.3 Setting the machine 2 controller as slave Precondition The electrical connection is made. Access level 2 is activated. User Manual Controller 901700 09 HCE SIGMA CONTROL 2 BLOWER ≥ 2.5.X...
Page 128 ➤ Setting the load balancing (see chapter 8.7.4.5). Activating the remote control ➤ Activate remote control see chapter 8.2.13. Result The remote control is activated. The controller of machine 2 is set as slave. User Manual Controller SIGMA CONTROL 2 BLOWER ≥ 2.5.X 901700 09 HCE...
Page 129 Master state ready Slave state ready 4. Press the «Up» key. The check box is activated. 5. Press «Enter». The setting is applied. Result Load balancing is activated. User Manual Controller 901700 09 HCE SIGMA CONTROL 2 BLOWER ≥ 2.5.X...
Page 130: Setting Input And Output Signals
☐ ¦ Logic : ······························ Controller on DOR1.03 ☐ ¦ Logic : ······························ 8.8.1.2 Assigning a message to an output 1. Select the required message with the «Up» or «Down» keys. User Manual Controller SIGMA CONTROL 2 BLOWER ≥ 2.5.X 901700 09 HCE...
Page 131: Output Input Signals On The Display
If an input signal is classified as fault, the controller goes into the alarm state and shuts down the machine. Overview External messages menu for specifying the settings. Use the ■ Enter the message text ■ Assign and activate the input User Manual Controller 901700 09 HCE SIGMA CONTROL 2 BLOWER ≥ 2.5.X...
Page 132 5. Press the «Right» arrow. The cursor jumps to the next position of the message text. 6. Enter the remaining characters of the message text in the same manner. User Manual Controller SIGMA CONTROL 2 BLOWER ≥ 2.5.X 901700 09 HCE...
Page 133 «DOWN» key and counted upwards from 0 (zero) in 1 second increments with the «UP» key. td line. 1. Use «Up» or «Down» to select the User Manual Controller 901700 09 HCE SIGMA CONTROL 2 BLOWER ≥ 2.5.X...
Page 134: Tab. 80 Logic Settings
For messages at 24 V, the logic is set with the + symbol. 8.8.2.6 Setting the message type 1. Select the message type line with the «Up» and «Down» keys. User Manual Controller SIGMA CONTROL 2 BLOWER ≥ 2.5.X 901700 09 HCE...
Page 135 The output is assigned and activated. External message 1 and as output signal at the Result The signal at the DI digital input is available as selected DOR output. User Manual Controller 901700 09 HCE SIGMA CONTROL 2 BLOWER ≥ 2.5.X...
Page 136: Switching And/Or Triggering Messages With Thresholds
8 0 ° C Menu 5.10.3 Switch Active line ▶1 p1 ▶2 p2 ▶3 T1 ▶4 T2 ▶5 T3 ▶6 T_S 2. Use «Up» or «Down» to select the measured value. User Manual Controller SIGMA CONTROL 2 BLOWER ≥ 2.5.X 901700 09 HCE...
Page 137 «DOWN» key and counted upwards from 0 (zero) in 1 second increments with the «UP» key. td line. 1. Use «Up» or «Down» to select the User Manual Controller 901700 09 HCE SIGMA CONTROL 2 BLOWER ≥ 2.5.X...
Page 138 8. Press «Enter». The output is assigned and activated. ok is displayed. 8.8.3.4 Setting the message type 1. Select the message type line with the «Up» and «Down» keys. User Manual Controller SIGMA CONTROL 2 BLOWER ≥ 2.5.X 901700 09 HCE...
Page 139 SP + switching differential SD , the message and output are reset. The switching behaviour is inver‐ Logic parameter. ted by setting "-" of The settings for the other measured values are carried out in the same manner. User Manual Controller 901700 09 HCE SIGMA CONTROL 2 BLOWER ≥ 2.5.X...
Page 140: Activating Remote Acknowledgement
DI has been selected. The input 4. Press «Enter». The display for the currently set input flashes. 5. Select the input DI1.05 with the «Up» or «Down» key. User Manual Controller SIGMA CONTROL 2 BLOWER ≥ 2.5.X 901700 09 HCE...
Page 141: Error Behaviour
AII1.02 (with access level 2 dispay only) SAM 4.0 . In the following example, the behaviour in master control mode is set with Precondition Access level 2 is activated. User Manual Controller 901700 09 HCE SIGMA CONTROL 2 BLOWER ≥ 2.5.X...
Page 142: Commissioning The Machine
The actual working pressure, the time and the airend discharge temperature are displayed in the first line of the display. The operating mode is mapped as a pipe and instrument diagram on the display. User Manual Controller SIGMA CONTROL 2 BLOWER ≥ 2.5.X 901700 09 HCE...
Page 143: Fig. 32 Operating Mode
Initial Start-up 8.11 Commissioning the machine Fig. 32 Operating mode 2. Continue the commissioning process as described in chapter "Commissioning" of the ma‐ chine's operating manual. User Manual Controller 901700 09 HCE SIGMA CONTROL 2 BLOWER ≥ 2.5.X...
Page 144: Operation
The ambient conditions as described in Chapter "Installation and Operating Conditions" are met 1. Switch on the user's mains disconnect. 2. Switch on the machine and wait for SIGMA CONTROL 2 to start. voltage applied to controller LED lights green.
Page 145: Switching Off
Result The EMERGENCY STOP command device remains latched after actuation. The machine is secured against an automatic restart. User Manual Controller 901700 09 HCE SIGMA CONTROL 2 BLOWER ≥ 2.5.X...
Page 146: Acknowledging Alarm And Warning Messages
Warning LED (yellow) Alarm LED (red) Key «Acknowledge» Alarm message An alarm message shuts the machine down automatically. Alarm LED flashes. The red Precondition The fault has been rectified User Manual Controller SIGMA CONTROL 2 BLOWER ≥ 2.5.X 901700 09 HCE...
Page 147: Displaying Messages
Selected submenu: ■ Blower messages ■ Diagnostic messages ■ System messages Segment: ■ Message number ■ Type of message ■ Message status ■ Message date ■ Message time User Manual Controller 901700 09 HCE SIGMA CONTROL 2 BLOWER ≥ 2.5.X...
Page 148: Status - Messages Menu
Menu 1.1 Messages active line ▶1 Current messages ▶2 Messages history ▶3 Address error ------------------------------ Number of currently registered faults current Alarms Number of currently registered warnings Warnings User Manual Controller SIGMA CONTROL 2 BLOWER ≥ 2.5.X 901700 09 HCE...
Page 149 0015 W a 04/16/19 01:06:43PM Message text for message 0015 Bus alarm 0005 W c 04/16/19 08:15:37AM Message text for message 0005 T1 ↑ 3. Press «Escape» repeatedly to leave this menu. User Manual Controller 901700 09 HCE SIGMA CONTROL 2 BLOWER ≥ 2.5.X...
Page 150: Displaying Analogue Data
Speed ─ Current ─ DC link voltage DC link voltage ─ Torque Displaying analogue data Precondition The operating mode is displayed. <Performance data> menu. 1. Open the 2 User Manual Controller SIGMA CONTROL 2 BLOWER ≥ 2.5.X 901700 09 HCE...
Page 151: Displaying Operating Data
Motor : Running time of drive motor (adjustable) ─ Block : Running time of blower block (adjustable) ─ SIGMA CONTROL 2 : Controller running time ─ OFC/SFC : FC block drive: Running time of the frequency converter ─ Display the operating hours Precondition The operating mode is displayed.
Page 152 5. Press the «Enter» key. The setting is applied. 6. Press «Escape» repeatedly to leave this menu. 0 h . Result The operating hours for the new drive motor are set to User Manual Controller SIGMA CONTROL 2 BLOWER ≥ 2.5.X 901700 09 HCE...
Page 153: Setting The Maintenance Interval
The counter for the maintenance interval is reset. 10. Press «Escape» repeatedly to leave this menu. Communication modules 9.8.1 Displays at the PROFIBUS module The communication module features LEDs providing information about the module status. User Manual Controller 901700 09 HCE SIGMA CONTROL 2 BLOWER ≥ 2.5.X...
Page 154: Display At The Modbus Module
Sub-D port, 9 poles Colour State Meaning Common rail Module without voltage or no communication system Yellow illuminates continuously Module connected to bus, communication is running illuminates continuously Error User Manual Controller SIGMA CONTROL 2 BLOWER ≥ 2.5.X 901700 09 HCE...
Page 155: Displays At The Modbus Tcp Module
Monitoring time exceeded (time-out) Module without voltage Green illuminates continuously Module in operation illuminates continuously Internal fault, module in "EXCEPTION" status flashes Fault in diagnostic object or IP address conflict User Manual Controller 901700 09 HCE SIGMA CONTROL 2 BLOWER ≥ 2.5.X...
Page 156: Display At The Devicenet Module
Self test Tab. 91 DeviceNet communications module – Interpretation of LEDs 9.8.5 Displays at the PROFINET module The communication module features LEDs providing information about the module status. User Manual Controller SIGMA CONTROL 2 BLOWER ≥ 2.5.X 901700 09 HCE...
Page 157: Fig. 40 Profinet Communication Module - Leds And Interface
Station name not set flashes 4:1 (on:off) Internal error No connection. Green illuminates continuously Connection established, no communication flashes Communication in operation Tab. 92 PROFINET communications module – Interpretation of LEDs User Manual Controller 901700 09 HCE SIGMA CONTROL 2 BLOWER ≥ 2.5.X...
Page 158: Displays At The Ethernet/Ip-Module
Communication running, 10 Mbit/s Tab. 93 EtherNet/IP communication module – Interpretation of LEDs Save data SIGMA CONTROL 2 settings can be backed up to an SD card. User Manual Controller SIGMA CONTROL 2 BLOWER ≥ 2.5.X 901700 09 HCE...
Page 159 Precondition An SD card with compatible file system (FAT32) and minimum 50 MB free memory is plugged into the SD card slot X5 of SIGMA CONTROL 2 The write protection of the SD card has been deactivated. Access level 2 is activated.
Page 160: Format Sd Card
: ☐ Status recognised ······························ Active line Format SD card : ☑ 5. Press the «Enter» key. A security query is displayed. 6. Press «Enter». SD card being formatted. User Manual Controller SIGMA CONTROL 2 BLOWER ≥ 2.5.X 901700 09 HCE...
Page 161: 10 Fault Recognition And Rectification
10.1 Basic instructions The following tables are intended to assist in locating faults. SIGMA CONTROL 2 will indicate three types of faults: ■ Fault on the machine: red LED flashes, the machine is shut down, see chapters 10.2 and 10.5.
Page 162 0017 A T2/T1 temperature differ‐ Check operating conditions. dT ⇞ ence too high. Check all feed lines, discharge lines, the inlet and the discharge silencers and the blower block. User Manual Controller SIGMA CONTROL 2 BLOWER ≥ 2.5.X 901700 09 HCE...
Page 163 0033 A Fault STO channels Check STO channels Blower motor FC: STO- function inactive 0034 A Fault STO channels Check STO channels Blower motor FC off - STO? User Manual Controller 901700 09 HCE SIGMA CONTROL 2 BLOWER ≥ 2.5.X...
Page 164 0098 A Switch T_S 0100 A Fault of frequency converter Check the manual of frequency converter Frequency converter provided by the customer provided by the customer group alarm User Manual Controller SIGMA CONTROL 2 BLOWER ≥ 2.5.X 901700 09 HCE...
Page 165: Interpreting Warning Messages
In this table, you will see "%d" for a variable value, e.g. a number, duration or I/O address. Messages 0021, 0074–0075 and 0092-0096 are customer-specific. Complete possible causes and remedies for your defined message text (see chapter 8.8). User Manual Controller 901700 09 HCE SIGMA CONTROL 2 BLOWER ≥ 2.5.X...
Page 166 Differential pressure too low. Check operating conditions. dp ↓ Check all feed lines, dis‐ charge lines, the inlet and the discharge silencers and the blower block. 0014 W External message 1 User Manual Controller SIGMA CONTROL 2 BLOWER ≥ 2.5.X 901700 09 HCE...
Page 167 The test operation is active. Conclude the test operation. Machine test measurement of block speed active 0027W Relevant only for commissioning Call HPC service technician. Machine test safety valve active User Manual Controller 901700 09 HCE SIGMA CONTROL 2 BLOWER ≥ 2.5.X...
Page 168 Switch block speed 0097 W Bus link via SIGMA NETWORK interrup‐ Check bus lines and plug. SAM 4.0 communication error 0098 W Switch T3 0099 W Switch T_S User Manual Controller SIGMA CONTROL 2 BLOWER ≥ 2.5.X 901700 09 HCE...
Page 169 Call HPC service technician. SD card write error 0868 W No continuity in line for ext. sensor at an‐ Check cable runs and sensor AII%d.0%d - open alogue input. connections. circuit User Manual Controller 901700 09 HCE SIGMA CONTROL 2 BLOWER ≥ 2.5.X...
Page 170: Interpreting Operation Messages
Power OFF → ON 0038 O Pressure peaks in the vacuum network Drag indicator p1 ⇟ 0039 O Pressure peaks in the compressed air network Drag indicator p2 ⇞ User Manual Controller SIGMA CONTROL 2 BLOWER ≥ 2.5.X 901700 09 HCE...
Page 171: Interpreting Diagnostic Messages
Diagnostic messages are identified with the letter D. They provide information on the status of the controller, the connected input and output modules and support the HPC service technician in trouble-shooting. User Manual Controller 901700 09 HCE SIGMA CONTROL 2 BLOWER ≥ 2.5.X...
Page 172: Interpreting System Messages
Machine and SIGMA CONTROL 2 In the event of a fault in the bus communication, the red "Communication" and the yellow "Warn‐ ing" LEDs flash at the SIGMA CONTROL 2. The system displays the following warning message: Message Possible cause...
Page 173: Troubleshooting At The Modbus Module
Machine and SIGMA CONTROL 2 In the event of a fault in the bus communication, the red "Communication" and the yellow "Warn‐ ing" LEDs flash at the SIGMA CONTROL 2. The system displays the following warning message: Message Possible cause...
Page 174: Troubleshooting Modbus Tcp/Ethernet Ip-Module
Machine and SIGMA CONTROL 2 In the event of a fault in the bus communication, the red "Communication" and the yellow "Warn‐ ing" LEDs flash at the SIGMA CONTROL 2. The system displays the following warning message: Message Possible cause...
Page 175: Troubleshooting At The Devicenet Module
Machine and SIGMA CONTROL 2 In the event of a fault in the bus communication, the red "Communication" and the yellow "Warn‐ ing" LEDs flash at the SIGMA CONTROL 2. The system displays the following warning message: Message Possible cause...
Page 176: Tab. 105 Fault Indications At The Devicenet Communication Module
Incorrect slave address Set the slave address at the of the module. SIGMA CONTROL 2 as parametrised at the bus master. See chapter 8 for the setting. Internal software Defective module. Call the HPC service technician.
Page 177: Troubleshooting, Profinet Module
Machine and SIGMA CONTROL 2 In the event of a fault in the bus communication, the red "Communication" and the yellow "Warn‐ ing" LEDs flash at the SIGMA CONTROL 2. The system displays the following warning message: Message Possible cause...
Page 178: 11 Maintenance
Contact HPC service technician. With a discharged butter battery the date and time of the controller always restarts on the 1stof January 1970 at 01:00:00 in the time zone Europe/Berlin. User Manual Controller SIGMA CONTROL 2 BLOWER ≥ 2.5.X 901700 09 HCE...
Page 179: 12 Spares, Operating Materials, Service
Displaying the version number, machine model, material number and serial number <Configuration – General – System information> menu. 1. Open the 5.1.1 SIGMA CONTROL 2 - MCS line. 2. Use «Up» or «Down» to select the Header 4 0 0 m b a r 0 8 : 1 5 A M 8 0 °...
Page 180 Spares, Operating Materials, Service 12.3 Displaying the version number, machine model, material number and serial number 3. Press «Enter». 5.1.1.1 SIGMA CONTROL 2 - MCS menu is displayed. Header 4 0 0 m b a r 0 8 : 1 5 A M 8 0 °...
Page 181 2. Detach the power supply and connecting line to the compressed air network at the user side. 3. Option K2/K9: Detach the user connecting lines and use compressed air (<2 bar) to blow out the cooling wa‐ ter system until liquid no longer escapes. User Manual Controller 901700 09 HCE SIGMA CONTROL 2 BLOWER ≥ 2.5.X...
Page 182 4. Use a suitable tool to remove the internally installed buffer battery. 5. Properly dispose of the buffer battery. 6. Hand the SIGMA CONTROL 2 over to an authorised disposal expert. 13.5.1 Battery disposal in accordance with local environmental regulations.
Page 183: Fig. 42 Battery Labelling
You actively contribute to the protection of our environment when you bring used batteries to the appropriate recycling system. Further information Refer to the SIGMA CONTROL 2user manual for details regarding battery removal and replace‐ ment. User Manual Controller 901700 09 HCE SIGMA CONTROL 2 BLOWER ≥ 2.5.X...
Page 184 Decommissioning, Storage and Transport 13.5 Disposal User Manual Controller SIGMA CONTROL 2 BLOWER ≥ 2.5.X 901700 09 HCE...

KAESER KOMPRESSOREN SIGMA CONTROL 2 User Manual

Quick Links

Troubleshooting

Need help?

Questions and answers

Related Manuals for KAESER KOMPRESSOREN SIGMA CONTROL 2

Summary of Contents for KAESER KOMPRESSOREN SIGMA CONTROL 2

Table of Contents
