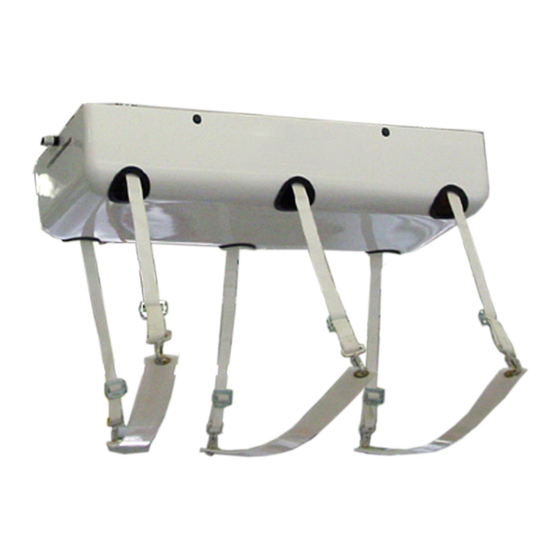

Mortuary Lift Ultimate 1000 Lift Installation Suggestions
Hide thumbs
Also See for Ultimate 1000 Lift:
- Quick start manual (4 pages) ,
- Installation manual (19 pages) ,
- Installation manual (20 pages)
Related Manuals for Mortuary Lift Ultimate 1000 Lift
Summary of Contents for Mortuary Lift Ultimate 1000 Lift
- Page 1 Installation Suggestions 127 Cottage Grove Avenue S.E. Cedar Rapids, Iowa 52403 800-628-8809 • 319-364-4910 www.mortuarylift.com...
- Page 2 We strongly urge you to verify the proposed details of your unique installation with a local engineer and a local building code official to verify its adequacy and ensure compliance with local codes and ordinances. MORTUARY LIFT COMPANY (800) 628-8809...
- Page 3 STATIONARY INSTALLATION on a Wood Joist Ceiling This machine will lift itself to the ceiling as shown & described below. 1. Locate ceiling joists and pre-drill six 1/4” holes (depending on your joist spacing) for 3/8” lag screws approximately 2” deep on 16” centers. 2.
- Page 4 C. Insert and tighten the center (2) lag screws until the metal washer touches the frame and does not rattle. Sample: Suspended monorail track mount on a wood joist ceiling mounted perpendicular to the joists MORTUARY LIFT COMPANY (800) 628-8809...
- Page 5 Machine Base • (4) Circular holes Circular Holes: • 9/16” Diameter • 2” from short edge of machine base • Used for stationary mounting with lag bolts or All Thread Slotted Holes: • (10) Slotted holes – (5) on each side of the machine •...
- Page 6 Revised 10-03-18 127 Cottage Grove Avenue S.E. Cedar Rapids, Iowa 52403 800-628-8809 • 319-364-4910 www.mortuarylift.com...
