Schwinn IC PRO Quick Start Manual
  1. Manuals
  2. Brands
  3. Schwinn Manuals
  4. Fitness Equipment
  5. IC Pro
  6. Quick start manual

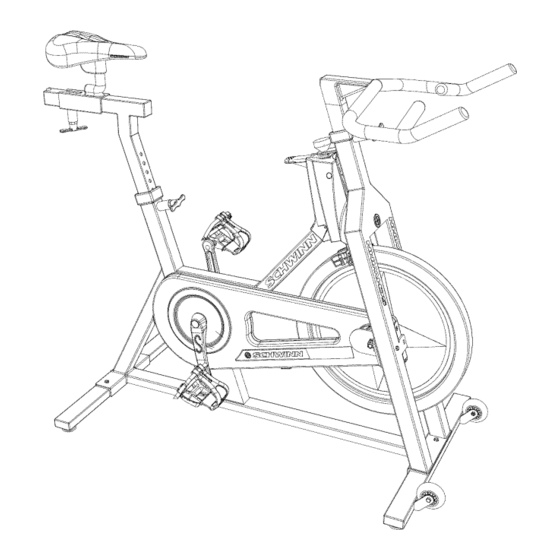

Schwinn IC PRO Quick Start Manual

Institutional cardio
Hide thumbs Also See for IC PRO:
1
2
3
4
5
6

Advertisement

Table of Contents

IC PRO
5
6
14
10
43
TECHNICAL SERVICE
63 62
68
8
29
50
20
69
44
11
18
19
25
2
3
17
57
55
53
(800) 864-1270
9
31
7
13
15
12
51
16
1
47
40
44
45
4
54
37
FAX (877) 686-6466
SCHWINN
INSTITUTIONAL CARDIO
42
12
34
20 60
50
23
34
32
19
46
44
21
33
39
45
22
19
24
56
58
65
27
26
41
48
19
59
205

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IC PRO and is the answer not in the manual?

Questions and answers

Related Manuals for Schwinn IC PRO

Summary of Contents for Schwinn IC PRO

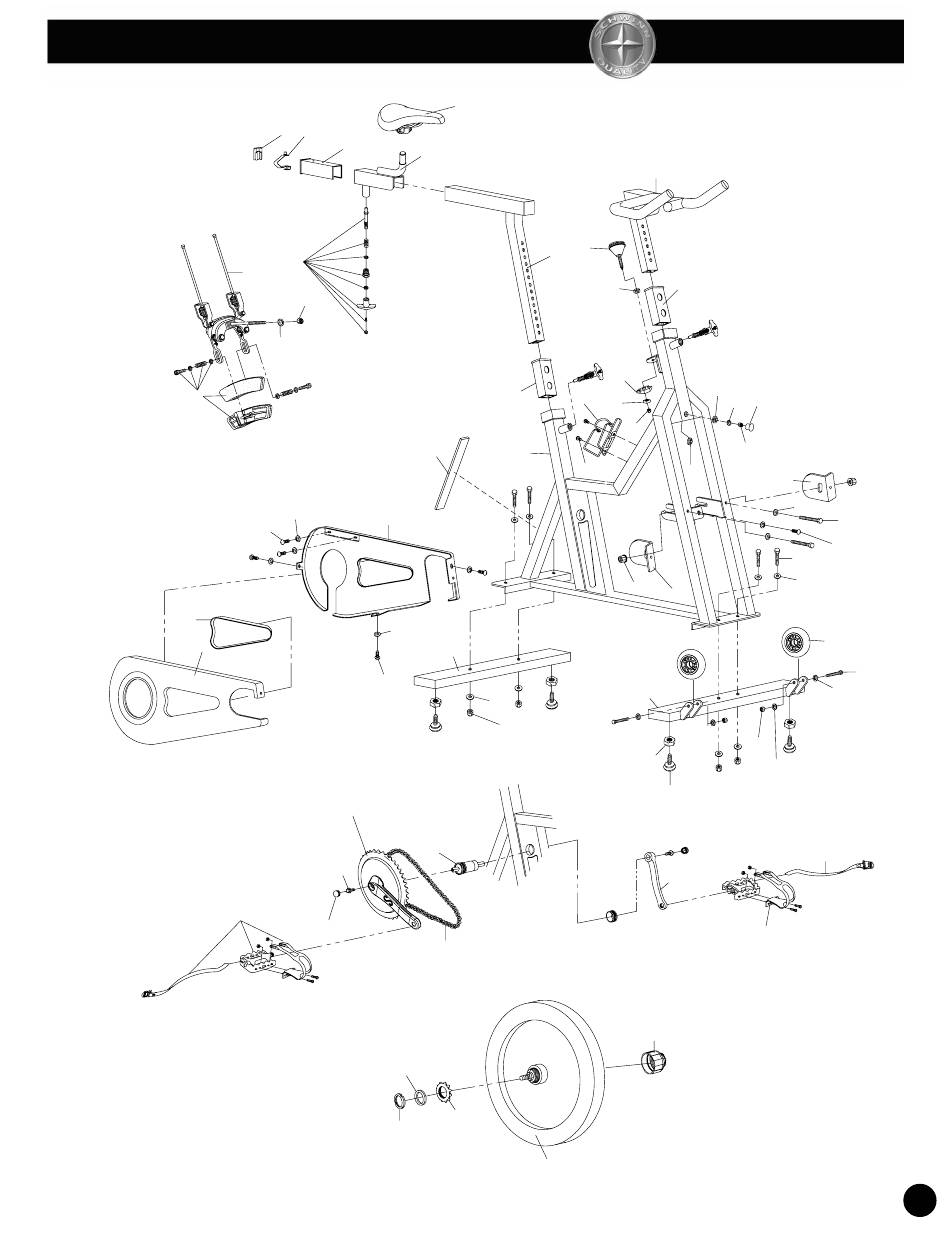

  • Page 1 SCHWINN IC PRO INSTITUTIONAL CARDIO 63 62 20 60 TECHNICAL SERVICE (800) 864-1270 FAX (877) 686-6466...
