Roper Rhodes Hampton HAM400FC Manual

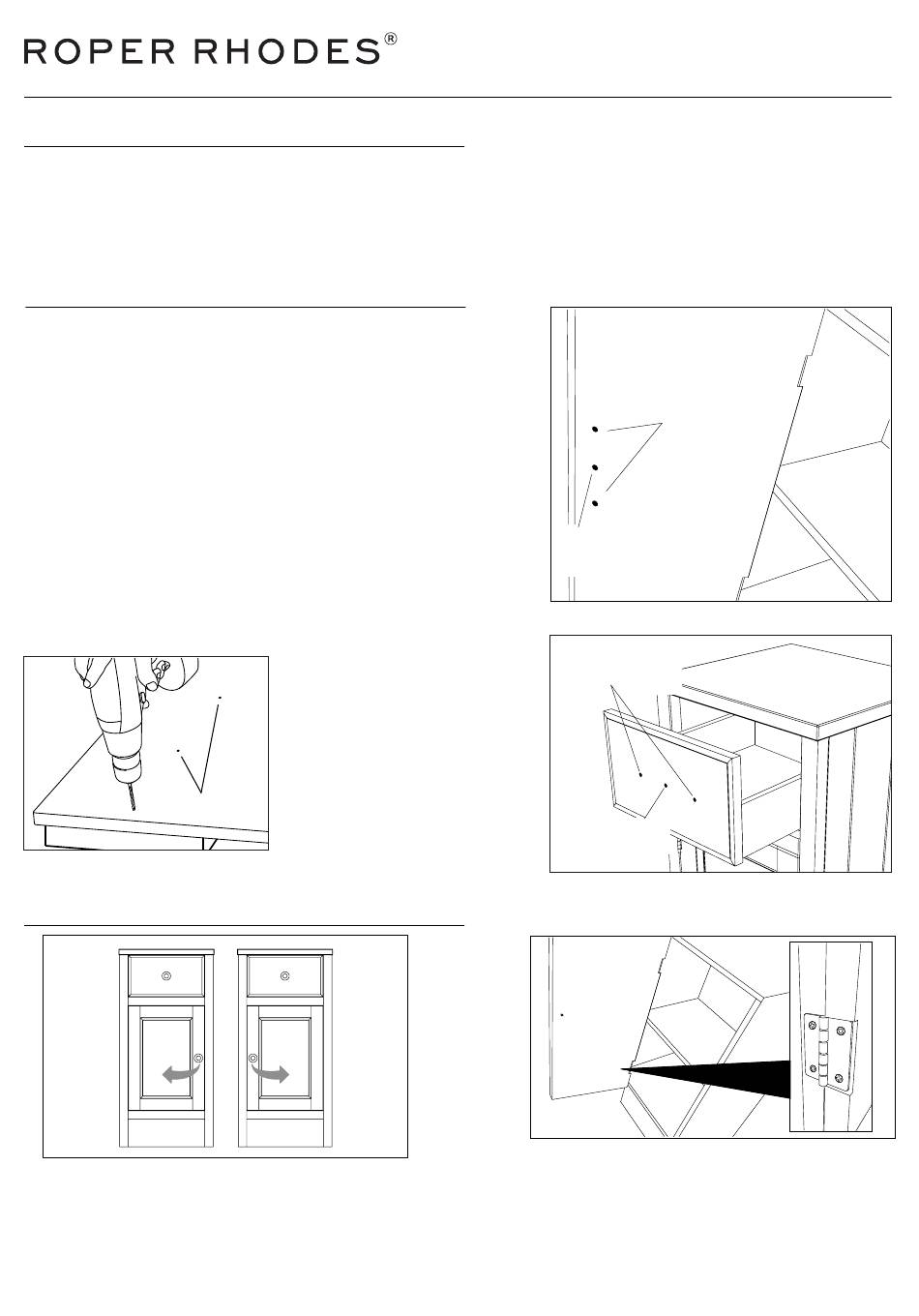

JOINING UNITS

This unit can be joined to other units with furniture fixing bolts (not provided). It is recommended that units are joined before they are fixed to
the wall.Clamp the units together using suitable clamps, ensuring they are flush and level with each other. Drill holes through the side of the
unit and using the bolts, join units together. Remove clamps and fix the assembly to the wall as required using corner brackets (not
supplied).

FITTING HANDLES

• A pilot hole located at the back of the door can be drilled if
using a single screw knob.
• If you have chosen a pull handle with 2 screws then please
pilot and then drill through the door with the handles in the
desired location.
• Carefully drill any holes using a clamped block of wood to
protect the front of the door/drawer - See fig. 1.
• Drill the door from the back (Fig. 2) and the drawer from the
front (Fig. 3)
• The handles can simply be screwed into place using the
screws supplied.
• If you choose third party handles please measure carefully
before drilling.
Block of wood

DOOR REVERSING

L
Depending on the intended location of the unit, you have
the option of choosing whether you want a left or right
hand opening door.
Pilot holes
Figure 1
R
Customer Services, Roper Rhodes Ltd, Brassmill Lane Trading Estate, Bath, BA1 3JF
Tel:01225 303 900 | Fax: 01225 448 877
Email: sales@roperrhodes.co.uk | Web: www.roperrhodes.co.uk
Recommended
for knob (Pilot
hole included)
Recommended
position for handle
Recommended
for knob
Figure 4
Choose the desired handing and fix hinges to the door
and then the carcass

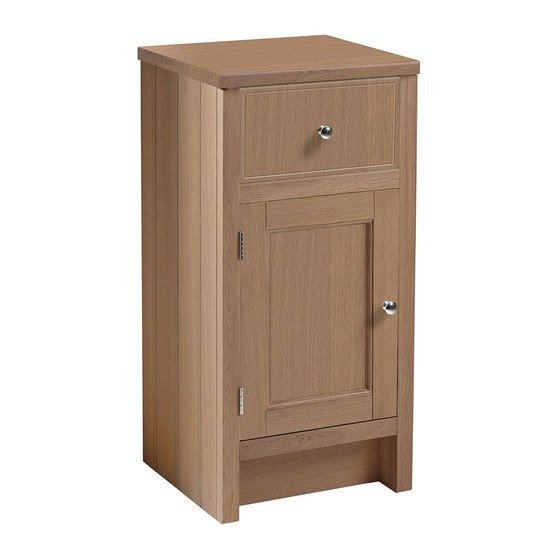

FLOOR CUPBOARD UNIT / HAM400FC
Please retain for future use
Recommended
position for handle
RR-HAMFC REV : JH/08/2016
HAMPTON
Figure 2
Figure 3
Figure 5
