Roper Rhodes Cypher 600 Unit FM Installation & Aftercare Instructions

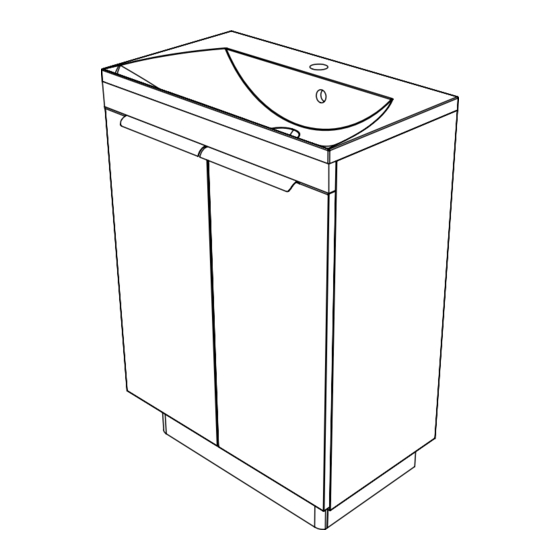

Cypher 600 Unit FM
Installation Procedure:
Before You Start
It is recommended that the unit and basin are secured to a suitably reinforced wall to ensure stability. The wall plugs supplied are only suitable for solid stone/brick
walls. For plasterboard walls use specialist wall plugs along with supplementary wall strengthening as units can be very heavy. Seek advice from a specialist about the
suitability of fixings to be used.
Wear suitable eye protection when drilling. Take care when using power tools near water - the use of a residual current device (RCD) is recommended. Beware of
hidden pipes or cables. Take care when drilling tiled surfaces as the drill might slip. Use a piece of masking tape to prevent the drill from wandering.
Optional plinth
The unit is supplied with a plinth box. The use of this is optional giving the choice of a wallmounted or floormounted look.
If the plinth is not used we recommend that the unit is also secure to the wall at the base (as well as the top) using corner brackets or similar (not supplied)
If the plinth is required (For a floormounted unit). We recommend that this is installed prior to fixing the unit to the wall. a) Carefully turn the unit upside-down onto a flat
and soft surface. b) Fix plinth box into place using the dowels supplied. c) Turn unit the correct way up. d) Locate in desire location and then fix to the wall using the wall
brackets as below:
1

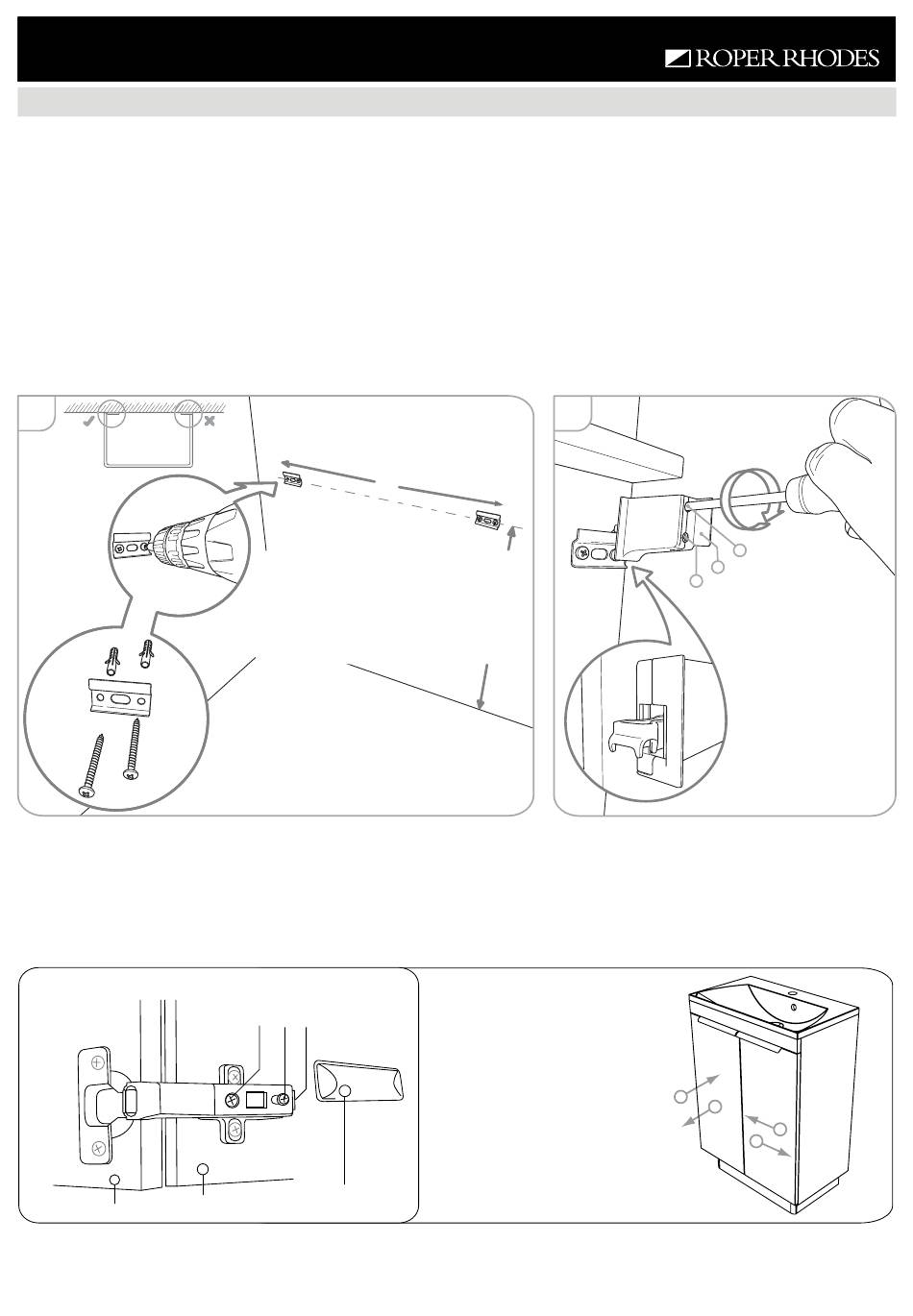

Hinge Adjustment
Hinges may require adjustment for correct door alignment. This is achieved with the adjustable soft close hinges using the adjustment screws
A and B (see Drawing 1). To access these you will first have to remove the screw cap cover. The hinges also feature a quick release mechanism
to quickly and easily detach the door from the furniture frame, this is activated by pressing button C (see Drawing 1).
Drawing 1
Furniture Frame
Door
Installation & aftercare instructions
Please retain for future reference
Mark the location of each of the wall mounting
plates ensuring that they are positioned inside the
sidewalls of the vanity unit. We would recommend
the height is set such that the overall height
including the basin is 860mm. For each mounting
plate drill two holes in the marked positions using a
8mm drill bit to a depth of 55mm.
A B C
Screw cap cover
Customer Services, Roper Rhodes Ltd, Brassmill Lane Trading
Estate, Bath, BA1 3JF
Tel:01225 303 900 | Fax: 01225 448 877
Email: sales@roperrhodes.co.uk | Web: www.roperrhodes.co.uk
2
Drawing 2
To make adjustment 1 (see Drawing 2)
tighten/loosen adjustment screw A.
To make adjustment 2 (see Drawing 2)
loosen adjustment screw B and then
slide the hinge into the required
position
B
C
A
Locate the hangers onto the
wall mounting plates. Wall
hangers not only tighten the
unit against the wall (Screw
A) but also offer up/down
adjustment to fine-tune the
fixing position (Screw B).
Finally fold over flap C to
conceal the adjustment
screws on the wall hanger.
2
2
1
1
RR-CYPFM REV : 060813
