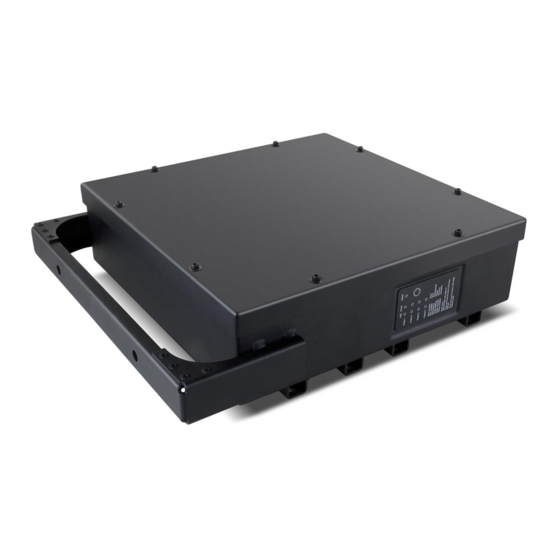

- Page 1 P3 PowerPort 1000 IP™ Rental model User Manual...
- Page 2 Martin™, Harman™ and all other trademarks in this...
-
Page 3: Table Of Contents
Contents Safety Information ......................4 Introduction ......................... 6 Overview ..........................6 Physical installation ......................7 Power and data connection ....................9 ......................9 AC mains power input ..................... 12 P3 video data input/throughput ....................12 Hybrid power + data output Using the product ...................... -
Page 4: Safety Information
Safety Information WARNING! Read the safety precautions in this section before installing, powering, operating or servicing this product. The following symbols are used to identify important safety information on the product and in this document: Warning! Warning! Warning! Warning! Safety hazard. Hazardous Fire hazard. - Page 5 • Connect the P3 PowerPort 1000 IP to AC mains power at 120-240 V~ (nominal), 50/60 Hz only. • Use only a source of AC mains power that complies with local building and electrical codes and has both overload and ground-fault (earth-fault) protection. •...
-
Page 6: Introduction
Introduction Thank you for selecting the Martin™ P3 PowerPort 1000 IP, an integrated power and data processor for Martin’s range of creative LED video products, including the VDO Sceptron™ line. When driven by one of Martin’s award-winning P3™ System Controllers, it powers connected products with high-quality image processing capabilities and extremely easy setup and configuration. -
Page 7: Physical Installation
Physical installation Warning! If suspending the product above ground level, secure it against failure of primary attachments with a safety cable that is approved for the weight of the product. Warning! If suspending the product from a truss, use 2 clamps to rig the product. Do not use only one rigging clamp. - Page 8 To hang the device on a truss: 1. Check that the rigging structure can support at least 10 times the weight of all devices and equipment to be installed on it. 2. Securely fasten two (2) rigging clamps through the clamp attachment points in the mounting bar.
-
Page 9: Power And Data Connection
Power and data connection Warning! For protection from electric shock, the P3 PowerPort 1000 IP must be electrically connected to ground (earth). The AC mains supply must be fitted with a fuse or overload circuit breaker and ground-fault (earth-fault) protection. Unused sockets must be capped. Warning! The power input cable must meet the specifications listed under ”Protection from electric shock”... - Page 10 P3 PowerPort 1000 IP™ Rental Model User Manual...
- Page 11 Power and data connection...
-
Page 12: P3 Video Data Input/Throughput
Connecting to an AC mains power source If you install a cord cap (mains plug) on the power cable, install a grounding-type (earthed) plug, following the plug manufacturer’s instructions. Table 1 shows some possible mains power pin identification schemes; if the pins are not clearly identified, or if you have any doubts about proper installation, consult a qualified electrician. -
Page 13: Using The Product
Using the product Warning! Before applying power to the P3 PowerPort 1000 IP: • Carefully review the safety information starting on page 4. • Check that the installation is safe and secure. Do not use the P3 PowerPort 1000 IP if the ambient temperature exceeds 55° C (131° F) or falls below -30° C (-22°... -
Page 14: Handling Dmx And Rdm
Status LED messages Color Output Indication Action required Busy (e.g. booting up or writing to Wait a moment for normal operation Blue Constant flash memory). to be resumed. Error. The P3 PowerPort 1000 IP Perform a factory reboot, followed by Constant has encountered a fatal error and a firmware upload. -
Page 15: Service And Maintenance
Service and maintenance Warning! Read “Safety Information” on page 4 before servicing the P3 PowerPort 1000 IP. Warning! Disconnect the P3 PowerPort 1000 IP from AC mains power before servicing. Warning! Refer any service operation not described in this manual to a qualified service technician. -
Page 16: Troubleshooting
Troubleshooting Problem Probable cause(s) Remedy Check that system is correctly connected, set up and running. Status LED on front panel lights Error has occurred. Hold control button pressed in until it turns blue, red. then release, to reboot P3 PowerPort 1000 IP. Restart P3 system controller. -
Page 17: Specifications
Specifications Physical Length ..............520 mm (20.5 in.) Width . - Page 18 Martin P3 PowerPort 1000 IP™, Rental Model ........
- Page 19 FCC Compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any Disposing of this product Martin™ products are supplied in compliance with Directive 2012/19/EC of the European Parliament and of the Council of the European Union on WEEE (Waste Electrical and Electronic Equipment), where applicable.
