Summary of Contents for ReSound RS DELHI

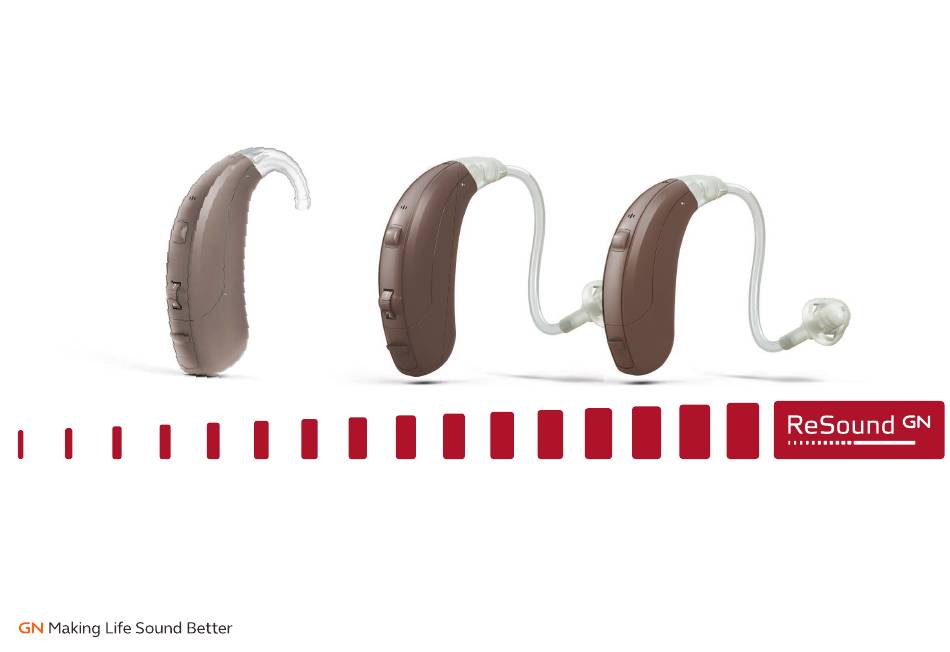

- Page 1 Technical Manual ReSound A/S Global Technical Operations RS DELHI Platform http://gto.gnresound.com Lautrupbjerg 7 DK-2750 Ballerup Denmark...
-
Page 2: Table Of Contents
Doc 0213850 rev M Table of Contents Form-Factor-Matrix & Product information ................3-4 Part list ............................... 5 Part list - test equipment ......................... 6 Part list - programmed service modules/ASM FRAME ............. 7 Part list - HSG parts ........................8-10 Part list, thin tubes/domes .....................11-12 BICROS set up - Delhi 90 .......................13 Disassemble procedure ......................14-15 Replace / reassembling .........................16... -
Page 3: Form-Factor-Matrix & Product Information
Form-Factor-Matrix & Product Information Doc 0213850 rev M This Technical Manual serves to outline the service & postponement procedure for products listed in the form-factor-matrix below: Product Platform Model Data Sheet Name DELHI VEA 3 VE360-DI 400052000 (60 models - 312 batt size) VEA 3 VE370-DVI DELHI... - Page 4 Product Information - Delhi 60/70/80 Doc 0213850 rev M Late 2012 new improved HSG parts, prog service module/ASM FRAME, hooks & thin tube adapt were introduced for the 60-70-80 models. A small overview for a repair situation: “Old” version: HSG parts require only one pin. TOP and BOT HSG are glued to be fixed and cannot be reused. HSG parts will fit old and new version of prog service modules.
-
Page 5: Part List
Part List Doc 0213850 rev M Description Part No Description Part No AUTOPHONE MAGNETS (3 pcs) 17294600 PIN,0.60X5.90 (for 60 HSG parts) 15344200 GENERIC BRUSH, BLK 17435000 PIN,0.60X8.20 (for 60 HSG parts) 16342400 AUD SHOE ASM,W/O TRMR,DELHI (60/70/80/90) 17631100 PIN,0.60X6.05 (for 70/80/90 HSG parts) 16059700 AUD SHOE ASM,W/TRMR,DELHI (90) 17598100... -
Page 6: Part List - Test Equipment
Part List - Test Equipment Doc 0213850 rev M TEST EQUIP DELHI90 Part No TEST EQUIP DELHI60 / 70 / 80 Part No TEST JIG, DELHI90 SERVICE JIG/FIXTURE 18097500 18985500 (white fixture attached to the brown test frame) TEST FRAME (HI test) 16902800 TEST RING (for good sealing during HI test) 15472600... -
Page 7: Part List - Programmed Service Modules/Asm Frame
Part List - Programmed Service Modules/ASM FRAME Doc 0213850 rev M COLOUR VE370-DVI VE270-DVI VE170-VI VE380-DVI VE280-DVI VE180-VI MG490-DVI MG290-DVI 18732400 18733500 18734200 18734400 18734600 18734800 18992400 18732401 18733501 18734201 18734401 18734601 18734801 18992401 18732402 18733502 18734202 18734402 18734602 18734802 18992402 18992502 18732403... -
Page 8: Part List - Hsg Parts
Part List - Housing Parts DELHI 60 Doc 0213850 rev M HSG BOT BATT COLOUR PB COVER HSG TOP DOOR printed) 18191000 18730600 18730500 18730700 18191001 18730601 18730501 18730701 18191002 18730602 18730502 18730702 18191003 18730603 18730503 18730703 18191004 18730604 18730504 18730704 GRY3 18191020... - Page 9 Part List - Housing Parts DELHI 70 & 80 Doc 0213850 rev M HSG BOT COLOUR HSG TOP printed) VE370-DVI VE270-DVI VE170-VI VE380-DVI VE280-DVI VE180-VI (single mic) (dual mic) 18734000 18732500 18732700 18733400 18734100 18734300 18734500 18734700 18734001 18732501 18732701 18733401 18734101 18734301...
- Page 10 Part List - Housing Parts DELHI 90 Doc 0213850 rev M HSG BOT BATT COLOUR HSG TOP PB COVER printed) DOOR MG490-DVI MG290-DVI 18994400 18994600 18191000 18994500 18994401 18994601 18191001 18994501 18994402 18994602 18994702 18191002 18994502 18994403 18994603 18994703 18191003 18994503 18994404 18994604...
- Page 11 Part List - SureFit Thin Tubes & Domes (for 60/70 models only) Doc 0213850 rev M THIN TUBE BLISTER PACKS THIN TUBE DOMES RIGHT LEFT (3 x cleaning tubes / 5 x thin tubes) Description THIN TUBE,SF,0A 19402600 19403500 (10 pcs) THIN TUBE,SF,0B 19402700 19403600...
-
Page 12: Part List, Thin Tubes/Domes
Part List - Thin Tubes & Domes (for 60/70 models only) Doc 0213850 rev M THIN TUBE BLISTER PACKS THIN TUBE DOMES Part No (5 tubes & 3 cleaning wires) Description THIN TUBE 2,0A,R,BLSTR 18628600 (10 pcs) THIN TUBE 2,0B,R,BLSTR 18628700 DOME,THNTUB/REC,SZ5,SM 18500800... -
Page 13: Bicros Set Up - Delhi 90
BICROS Set Up (90 models only) Doc 0213850 rev M DELHI 90 DELHI 90 BICROS (MBL) 18939002 Audio shoe BICROS Au- w/trimmer dio shoe 17598100 * 17637300 Audio cord in a suitable length 7000-4x * trimmer allows to adjust input signal. Note that also p/n 17631100 AUD SHOE ASM,W/O **TRIMMER can be used Page 13 of 22 Not subject to issue control when printed... -
Page 14: Disassemble Procedure
Disassemble Procedure Doc 0213850 rev M Remove the hook by turning it counterclockwise. Pull it out. Locate the two pins holding top and bot HSG and push them out using a pin removal tool. Lift them out by using a tweezer Separate the top HSG from the bot HSG and slowly remove the top HSG. - Page 15 Disassembled HI’s Doc 0213850 rev M DELHI 60 DELHI 70 / 80 DELHI 90 Page 15 of 22 Not subject to issue control when printed...
-
Page 16: Replace / Reassembling
Replace / Reassembling Doc 0213850 rev M Hold the bot HSG in the pos as shown and insert PC cover into the HSG with the tap pointing towards the hook. Be carefull not to damage the PC cover during reassembling as it is not an available spare part. Insert the module and gently push until it is complete in place. Mount the bat door PB cap shown from both sides Hole for PB in place... -
Page 17: Service & Postponement Procedure
Service & Postponement Procedure Doc 0213850 rev M Service Procedure: - Save user settings with Aventa fitting software - Disassemble faulty device - Replace module with a new service module from stock - Assemble device - Restore user settings with fitting software - Load customer serial No using DSA6000 Postponement Procedure: - Disassemble device... -
Page 18: Test Equipment
Test Equipment Doc 0213850 rev M Prog adaptor P/n 15472600 CS44 Prog cable Batt pill must be used p/n 17598200 Test ring (to be plugged into prog adapt) during test for 90 models 9022 907 69019 (R) p/n 17449400 size 13+ 9022 907 69029 (L) p/n 17449300 size 312+ p/n 17449500 size 675+... -
Page 19: Prepare For Hi Test
Prepare for HI Test - All Models Doc 0213850 rev M Push the PC cover open to get access to the connection points Make sure it is complete open. Otherwise there is not enough Open batt door and add a batt pill. Close batt door space for connecting the programming adaptor Page 19 of 22 Not subject to issue control when printed... - Page 20 Prepare for HI Test - All Models Doc 0213850 rev M Prog Adaptor: Press down the Insert the one end of prog adapt into the square prog port of the device. Push button to unlock after use the bottom part of prog adapt until it clicks to lock it on the device marks Connect CS44 prog cable to prog adapt in correct pos/direction (note the red marks) PROG...
-
Page 21: Testing
Testing - DELHI 60 / 70 / 80 Doc 0213850 rev M Use of test fixture is mandatory for all BTE during DSA6000 final HI testing. To use the fixture, place the HI in the fixture according to pic. Place it in the test chamber as shown and select the correct test tpix and make sure to follow instructions coming up on the screen. - Page 22 Testing - DELHI 90 Doc 0213850 rev M Important points to obtain a good & stable HI test: Test ring to make good sealing HI to be placed in a straight line HI almost floating, only touch the foam slightly HI prog adapt must not touch test jig Prog./Batt.
