Installation Instructions

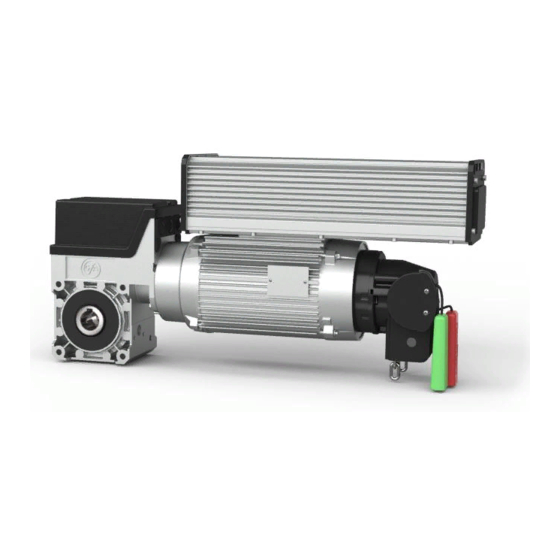

ELEKTROMAT
FT 80.5 FU-45,00
Model: 10003958 10011
-en-
Status: 25.11.2021

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ELEKTROMAT FT 80.5 FU-45,00 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for GFA ELEKTROMAT FT 80.5 FU-45,00

  • Page 1 Installation Instructions ELEKTROMAT FT 80.5 FU-45,00 Model: 10003958 10011 -en- Status: 25.11.2021...
  • Page 2 GfA ELEKTROMATEN GmbH & Co. KG Wiesenstraße 81 D-40549 Düsseldorf www.gfa-elektromaten.de info@gfa-elektromaten.de...
  • Page 3: Table Of Contents

    Table of contents General safety information ....................4     Technical data ........................ 6     Mechanical installation ....................7     Electrical installation ..................... 10     Limit switch setting ......................11     Motor connection ......................12    ...
  • Page 4: General Safety Information

    The safe operation of the product can only be ensured if it is used as specified. Follow the installation instructions. Observe all specifications, especially warnings, when installing the product in the overall system. GfA is not liable for damage resulting from non-observance of the installation instructions. The resulting overall system must be reassessed for its safety in accordance with applicable standards and directives (e.g.
  • Page 5 Warning - Failure to follow these installation instructions may result in severe injury or death.  Please read these instructions before using the product.  Keep these instructions handy.  Include these instructions when passing on the product to third parties. Warning - Danger from improper use of the product! ...
  • Page 6: Technical Data

    2 Technical data Designation Unit Output speed Output torque 800 (800) Output / hollow shaft 45,00 Series FT SG50/SG85 Limit switch range (maximum revolutions of the output / hollow shaft) Supply voltage 1N~ 230 Operating current 6,60 Operating frequency 50/60 Power factor cos φ...
  • Page 7: Mechanical Installation

    3 Mechanical installation Prerequisites The permissible loads on walls, fastenings, mountings and transmission elements must not be exceeded, even for maximum holding torques or locking torques (▶ refer to technical data). Connection elements ▶ Self-locking connection ▶ Utilize the hole diameter ▶...
  • Page 8 Mounting Four holes are provided for mounting.
  • Page 9 Installation The descriptions below apply to general door specifications. The specifications of the door manufacturer must also be observed during installation. Warning - Potential injury or danger to life!  During installation, be sure to use a lifting device that has a sufficient load- carrying capacity.
  • Page 10: Electrical Installation

    4 Electrical installation Warning - Danger to life from electric current!  Switch the mains OFF and check that the cables are de-energised  Observe the applicable regulations and standards  Make a proper electrical connection  Use suitable tools Performing electrical installation Remove the cover.
  • Page 11: Limit Switch Setting

    5 Limit switch setting The setting of the final limit positions OPEN and CLOSE is described in the instructions for the door control. The door control must meet Performance Level c! Use only door controls that evaluate the limit switch according to EN 12543 and meet Performance Level c.
  • Page 12: Motor Connection

    6 Motor connection Motor X13 Motor plug 7 Limit switch connection Release switch X12 DES connection Safety circuit Channel B (RS485) Ground Channel A (RS485) Safety circuit Supply voltage Connection cable freqency inverter (FI)
  • Page 13: Emergency Manual Operation Lever

    8 Emergency manual operation lever The emergency manual operation is provided as a means of opening or closing doors that do not have electric power supply. Operation interrupts the control voltage. Electrical operation is no longer possible. Warning - Injury through improper operation! ...
  • Page 14: Completing Commissioning / Inspection

    9 Completing commissioning / inspection Check the following components and then install all covers. Gearbox Check the drive unit for loss of oil (a few drops can be neglected). Protect the output-shaft permanently against corrosion. Mounting Check that all connection elements (consoles, torque mounts, screws, locking rings, etc.) are secure and in proper condition.
  • Page 15: Disposal

    Dispose of old devices properly according to local legal regulations. Return old devices to the return and collection systems available. You can also return GfA products free of charge. Please apply enough postage to the package and mark it as "old devices".
  • Page 16: Declaration Of Incorporation / Declaration Of Conformity

    EMC Directive 2014/30/EU within the meaning of RoHS Directive 2011/65/EU The following requirements from Appendix I of GfA ELEKTROMATEN GmbH & Co. KG the Machinery Directive 2006/42/EC are met: declare under our sole responsibility that the 1.1.2, 1.1.3, 1.1.5, 1.2.2, 1.2.3, 1.2.6, 1.3.2,...
