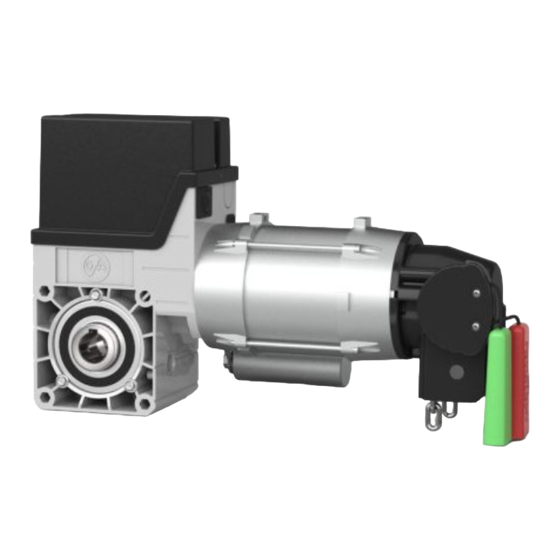

- Page 1 Installation Instructions ELEKTROMAT TSE 5.24 WS-25,40 Model: 10003805 00012 -en- Status: 16.11.2022...
- Page 2 GfA ELEKTROMATEN GmbH & Co. KG Wiesenstraße 81 D-40549 Düsseldorf www.gfa-elektromaten.de info@gfa-elektromaten.de...
-
Page 3: Table Of Contents
Table of contents General safety information ....................4 Technical data ........................ 6 Mechanical installation ....................7 Electrical installation ..................... 12 Limit switch adjustment ....................14 Selecting the operating mode ..................16 ... -
Page 4: General Safety Information
The safe operation of the product can only be ensured if it is used as specified. Follow the installation instructions. Observe all specifications, especially warnings, when installing the product in the overall system. GfA is not liable for damage resulting from non-observance of the installation instructions. The resulting overall system must be reassessed for its safety in accordance with applicable standards and directives (e.g. - Page 5 Warning - Failure to follow these installation instructions may result in severe injury or death. Please read these instructions before using the product. Keep these instructions handy. Include these instructions when passing on the product to third parties. Warning - Danger from improper use of the product! ...
-
Page 6: Technical Data
2 Technical data Designation Unit Output speed Output torque 50 (50) Output / hollow shaft 25,40 Series KG 50 Limit switch range (maximum revolutions of the output / hollow shaft) Supply voltage 1N~ 230 Operating current 3,50 Operating frequency Power factor cos φ 0,99 Safety circuit Degree of protection... -
Page 7: Mechanical Installation
3 Mechanical installation Prerequisites The permissible loads on walls, fastenings, mountings and transmission elements must not be exceeded, even for maximum holding torques or locking torques (▶ refer to technical data). Connection elements: ▶ Self-locking connection ▶ Utilize the hole diameter ▶... - Page 8 Mounting Three holes are provided for mounting. ▶ Use at least 2 of these (①). ▶ Use the connection elements supplied (②). Keys are used to connect to the door shaft. ▶ Use a key that is at least as long as the hollow shaft (③). BAGAD01101_Z001 M8x120...
- Page 9 Installation The descriptions below apply to general door specifications. The specifications of the door manufacturer must also be observed during installation. Warning - Potential injury or danger to life! During installation, be sure to use a lifting device that has a sufficient load- carrying capacity.
- Page 10 BAGAE01103_Z002 ▶ Attach the drive unit. Note – possible stalling of the gearbox! Do not hit the gearbox with a hammer when placing the drive unit on the shaft. Hammer blows or similar impacts of force may stall the gearbox. ▶...
- Page 11 ▶ Secure the keys (version Ⓑ only). BAGAE01107_Z001...
-
Page 12: Electrical Installation
4 Electrical installation Warning - Danger to life from electric current! Switch the mains OFF and check that the cables are de-energised Observe the applicable regulations and standards Make a proper electrical connection Use suitable tools Installation location for the control! ... - Page 13 Performing electrical installation Remove the cover. Connect the supply cables. BAHGB01_Z001 BAHGA01_Z001 Completing the electrical installation Mount the cable entries and/or cable glands.
-
Page 14: Limit Switch Adjustment
5 Limit switch adjustment Adjust the limit switches to define the final limits positions for OPEN and CLOSE. Prerequisite The door must open when the OPEN pushbutton is operated. If the door closes, U and Z must exchanged with the current switched off. - Page 15 Check the position of the door: Close the door ① until the cam is free and open the door again ② at OPEN final limit position. Carry out fine adjustment to correct the OPEN final limit position. Check the door position after correction.
-
Page 16: Selecting The Operating Mode
6 Selecting the operating mode The operating mode can be selected using the switch ① Hold to run OPEN Hold to run CLOSE ② Self hold OPEN Hold to run CLOSE 7 Message door OPEN The T801 has a potential-free NO contact that is closed when the final limit position OPEN is reached. -
Page 17: Motor Connection
8 Motor connection Operating capacitor Thermal contact Motor Motor plug 9 Limit switch connection Micro-fuse Operating mode selector S10 Emergency manual operation Terminal mains supply motor / safety circuit Terminal slack-rope switch Terminal control device STOPP Control voltage OPEN CLOSE Signal relay OPEN signal NO contact... -
Page 18: Control Device Connection
10 Control device connection ① Three push button ② Key-switch with STOP- button ③ Three push button Slack-rope switch... -
Page 19: Emergency Manual Operation (Rapid Hand Chain Operator)
11 Emergency manual operation (rapid hand chain operator) Emergency manual operation is designed for opening or closing the door without power supply. Its activation interrupts the control voltage. Electrical operation is no longer possible. Warning – Injuries due to incorrect operation! ... - Page 20 Switch on by pulling the red handle. Open or close by pulling the chain. Switch off by pulling the green handle.
-
Page 21: Completing Commissioning / Inspection
12 Completing commissioning / inspection Check the following components and then install all covers. Gearbox Check the drive unit for loss of oil (a few drops can be neglected). Protect the output-shaft permanently against corrosion. Mounting Check that all connection elements (consoles, torque mounts, screws, locking rings, etc.) are secure and in proper condition. -
Page 22: Disposal
Dispose of old devices properly according to local legal regulations. Return old devices to the return and collection systems available. You can also return GfA products free of charge. Please apply enough postage to the package and mark it as "old devices". -
Page 23: Declaration Of Incorporation / Declaration Of Conformity
EMC Directive 2014/30/EU within the meaning of RoHS Directive 2011/65/EU The following requirements from Appendix I of GfA ELEKTROMATEN GmbH & Co. KG the Machinery Directive 2006/42/EC are met: declare under our sole responsibility that the 1.1.2, 1.1.3, 1.1.5, 1.2.2, 1.2.3, 1.2.6, 1.3.2,... -
Page 24: Ukca: Declaration Of Incorporation / Declaration Of Conformity
Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012 The following requirements from Appendix I of GfA ELEKTROMATEN GmbH & Co. KG the Supply Machinery (Safety) Regulations 2008 declare under our sole responsibility that the...
