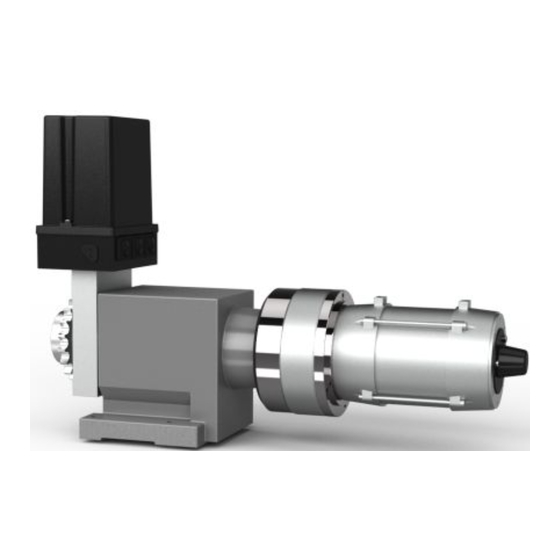

- Page 1 Pos: null /BA_Module/BA_AA Deckblatt/BAAA000001_M003 @ 17\mod_1444211755814_28.docx @ 891110 @ @ 1 Installation Instructions ELEKTROMAT FS 15.20-25,00 Model: 10003485 10002 -en- Status: 21.01.2022 Pos: null /BA_Module/BA_Seitenumbruch @ 0\mod_1190719383361_0.docx @ 550 @ @ 1...
-
Page 2: Table Of Contents
Pos: null /BA_Module/BA_DA Inhaltsverzeichnis/BADA000002_M001 @ 5\mod_1342530432542_28.docx @ 754855 @ @ 1 Table of contents Safety-relevant chapter ..........................3 Explanation of symbols ........................... 3 Specified use ..............................3 General safety instructions ..........................4 Technical data ............................. 5 ... -
Page 3: Safety-Relevant Chapter
Observe all specifications, especially warnings, when installing the product in the overall system. GfA is not liable for damage resulting from non-observance of the installation instructions. The resulting overall system must be reassessed for its safety in accordance with applicable standards and directives (e.g. CE marking). -
Page 4: General Safety Instructions
Lock the door during the inspection. Contact the service department if you have difficulty assessing the damage. Pos: null /FS_ELEKTROMATEN_Module/Sicherheitskapitel_FS_Adresse-GfA @ 66\mod_1618401305511_28.docx @ 1747514 @ @ 1 Pos: null /BA_Module_Manuell/Allgemeine_Module/BA_Seitenumbruch @ 29\mod_1567592807787_0.docx @ 1515778 @ @ 1 GfA ELEKTROMATEN GmbH & Co. KG Wiesenstraße 81... -
Page 5: Technical Data
Pos: null /Aktualisierung-ELEKTROMATEN-MAL/BA_FA/BAFA_Module/TD_00_Abtriebsdrehzahl @ 32\mod_1581323779969_28.docx @ 1578026 @ 1 @ 1 2 Technical data Designation Unit Output speed Pos: null /Aktualisierung-ELEKTROMATEN-MAL/BA_FA/BAFA_Module/TD_01_Allgemeine_Technische Daten @ 62\mod_1604419390202_28.docx @ 1712036 @ @ 1 Output torque 150 (150) Output / hollow shaft 25,00 Series FS 15 Limit switch range (maximum revolutions of the output / hollow shaft) Supply voltage... -
Page 6: Product Overview
Pos: null /FS_ELEKTROMATEN_Module/Produktübersicht/Produktübersicht_FS_Komponenten_C @ 33\mod_1587034546368_28.docx @ 1646141 @ 1 @ 1 3 Product overview Designation Output shaft: Note the recommendation for the number of teeth on the sprocket and the pitch in the technical data. Spur gear Intermediate flange with centrifugal brake: In the case of fire, the centrifugal brake regulates the speed that the door uses to close. -
Page 7: Storing
Pos: null /FS_ELEKTROMATEN_Module/Lagern/Lagern _ELEKTROMATEN @ 60\mod_1597916702984_28.docx @ 1698026 @ 1 @ 1 4 Storing Store the product in the original packaging. Ensure the following environmental conditions for storage: Closed, dry, dark and vibration-free rooms Temperatures between +5 °C and +40 °C ... -
Page 8: Mechanical Installation
Pos: null /FS_ELEKTROMATEN_Module/Mechanische Montage/Allgemeine Sicherheitshinweise/FS_MechMontage_allgSicherheitshinweise @ 60\mod_1598341728650_28.docx @ 1698954 @ 12 @ 1 6 Mechanical installation General safety information WARNING Danger to life from electric shock! Working on the mechanics may damage electrical lines or components. Danger to life or risk of severe injury from electric current. -
Page 9: Mounting
Pos: null /FS_ELEKTROMATEN_Module/Mechanische Montage/Befestigung/FS_MechMontage_Befestigung_BEF8_AGTFS015 @ 60\mod_1598358709306_28.docx @ 1699244 @ 2 @ 1 Mounting Only use the fastening points shown for mounting the product. Alternative mounting options for separately available accessories are not described here. Use the mounting instructions of the accessories for this purpose. Pos: null /BA_Module_Manuell/Allgemeine_Module/BA_Seitenumbruch @ 29\mod_1567592807787_0.docx @ 1515778 @ @ 1... -
Page 10: Connection Elements
Pos: null /FS_ELEKTROMATEN_Module/Mechanische Montage/Verbindungselemente/FS_MechMontage_Verbindungselemente @ 60\mod_1598356251599_28.docx @ 1699116 @ 2 @ 1 Connection elements WARNING Danger to life from falling parts and uncontrolled movements. The permissible loads on structures, walls, fastenings, connection and transmission elements must not be exceeded, even with maximum holding or locking torques. Please note the technical data of the drive unit. -
Page 11: Work Steps
Work steps WARNING Danger to life from incorrectly installed transmission elements A chain with too little or too much tension may skip or break. As a result, parts of the door structure may become loose and drop. The drive unit or door construction may also suffer damage. ... - Page 12 Tighten the fastening screw of the sprocket. Tension the chain. The slack side (Ⓐ) must not exceed the height of a chain link (Ⓑ). We recommend using a chain tensioner. From an angle of 60°, a chain tensioner is required in the slack side.
-
Page 13: Electrical Installation
Pos: null /FS_ELEKTROMATEN_Module/Elektrische Montage durchführen/Allgemeine Sicherheitshinweise/ELEK-Montage_ELEKTROMATEN-FS_AllgSicherheitshinweise @ 60\mod_1597921777837_28.docx @ 1698708 @ 12 @ 1 7 Electrical installation General information WARNING Danger to life from electric shock! Improper wiring may result in severe or fatal injury from electrical current. Allow only competent people to carry out the work. ... -
Page 14: Attaching The Connection Cables
Pos: null /FS_ELEKTROMATEN_Module/Elektrische Montage durchführen/Verbindungsleitungen anschließen/FS_ElekMontage_Verbinden_Motorstecker @ 60\mod_1598362352275_28.docx @ 1699344 @ 2 @ 1 Attaching the connection cables Remove the limit switch cover. Plug in the motor connector. Pos: null /FS_ELEKTROMATEN_Module/Elektrische Montage durchführen/Verbindungsleitungen anschließen/FS_ElekMontage_Verbinden_Endschalterstecker_DES @ 60\mod_1599822795971_28.docx @ 1701699 @ @ 1 ... -
Page 15: Digital Limit Switch - Function
Pos: null /FS_ELEKTROMATEN_Module/Elektrische Montage durchführen/Endschalter_Funktion/Endschalter_DES_Funktion @ 60\mod_1599816902299_28.docx @ 1701594 @ 2 @ 1 Digital limit switch - function The digital limit switch turns off the drive unit when the final limit positions are reached. A compatible door control can evaluate the digital limit switch. Terminals 21 to 28: safety circuit Terminals 21 to 28 are reserved for the safety circuit. -
Page 16: Motor Connection
Pos: null /BA_Module/BA_MA Motoranschluss/BAMA010005_M002 @ 34\mod_1589878882361_28.docx @ 1651202 @ 1 @ 1 8 Motor connection Motor X13 Motor plug X14 Brake plug Magnetic brake Pos: null /BA_Module/BA_NA Endschalteranschluss/BANA101002_M002 @ 55\mod_1593593155932_28.docx @ 1682056 @ 1 @ 1 9 Limit switch connection Thermal contact X12 DES connection Safety circuit... -
Page 17: Working Current Brake
Pos: null /FS_ELEKTROMATEN_Module/Bremsen/Arbeitsstrombremse/FS_ElekMontage_Arbeitsstrombremse @ 60\mod_1599571861815_28.docx @ 1700955 @ 1 @ 1 10 Working current brake The fire protection drive unit includes a working current brake. The braking force is applied when current is present. When the power supply is interrupted, the door closes by gravity. Pos: null /BA_Module_Manuell/Allgemeine_Module/BA_Seitenumbruch @ 29\mod_1567592807787_0.docx @ 1515778 @ @ 1... -
Page 18: Maintenance
Pos: null /BA_Module/BA_WA Abschluss Inbetriebnahme/ Wartung/BAWA000126_M001 @ 62\mod_1604653107963_28.docx @ 1712685 @ 122 @ 1 11 Maintenance WARNING Danger to life from electric shock Improper wiring may result in severe or fatal injury from electrical current. Allow only competent people to carry out the work. ... -
Page 19: Checklist For Fault Correction
In the case of a fault, follow the instructions shown on the door control. Find damage to the door mechanism or door leaf first. The following only mentions faults on the drive unit. When contacting GfA Service, have the serial number of the drive unit ready (see the 11-digit number next to "ID"... -
Page 20: Disposal
Dispose of old devices properly according to local legal regulations. Return old devices to the return and collection systems available. You can also return GfA products free of charge. Please apply enough postage to the package and mark it as "old devices". -
Page 21: Declaration Of Incorporation / Declaration Of Conformity
RoHS Directive 2011/65/EU The following requirements from Appendix I of GfA ELEKTROMATEN GmbH & Co. KG the Machinery Directive 2006/42/EC are met: declare under our sole responsibility that the 1.1.2, 1.1.3, 1.1.5, 1.2.2, 1.2.3, 1.2.6, 1.3.2, following product complies with the above 1.3.3, 1.3.9, 1.5.1, 1.5.2, 1.5.4, 1.5.6, 1.5.7,... - Page 24 === Ende der Liste für Textmarke Inhalt1 ===...
