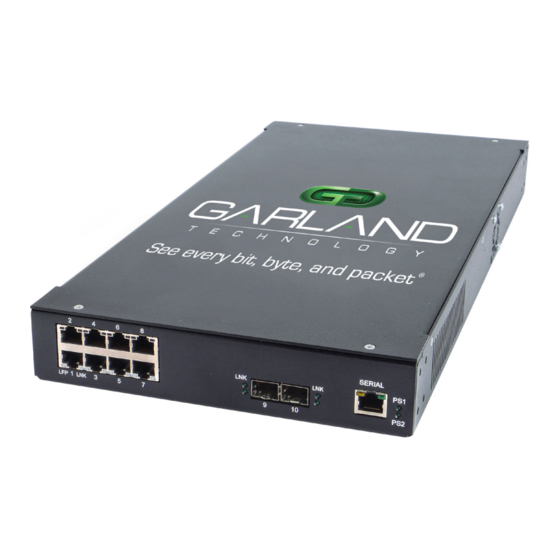

Garland AggregatorTAP INT1G10CSA Install Manual

This document describes the front panel, LED indications, interface and the installation procedure for the
INT1G10CSA. This Aggregator TAP is ideal for 10/100/1000MB copper network monitoring. The
innovative design allows these TAPs to be easily installed into any copper 10/100/1000MB network
segment.

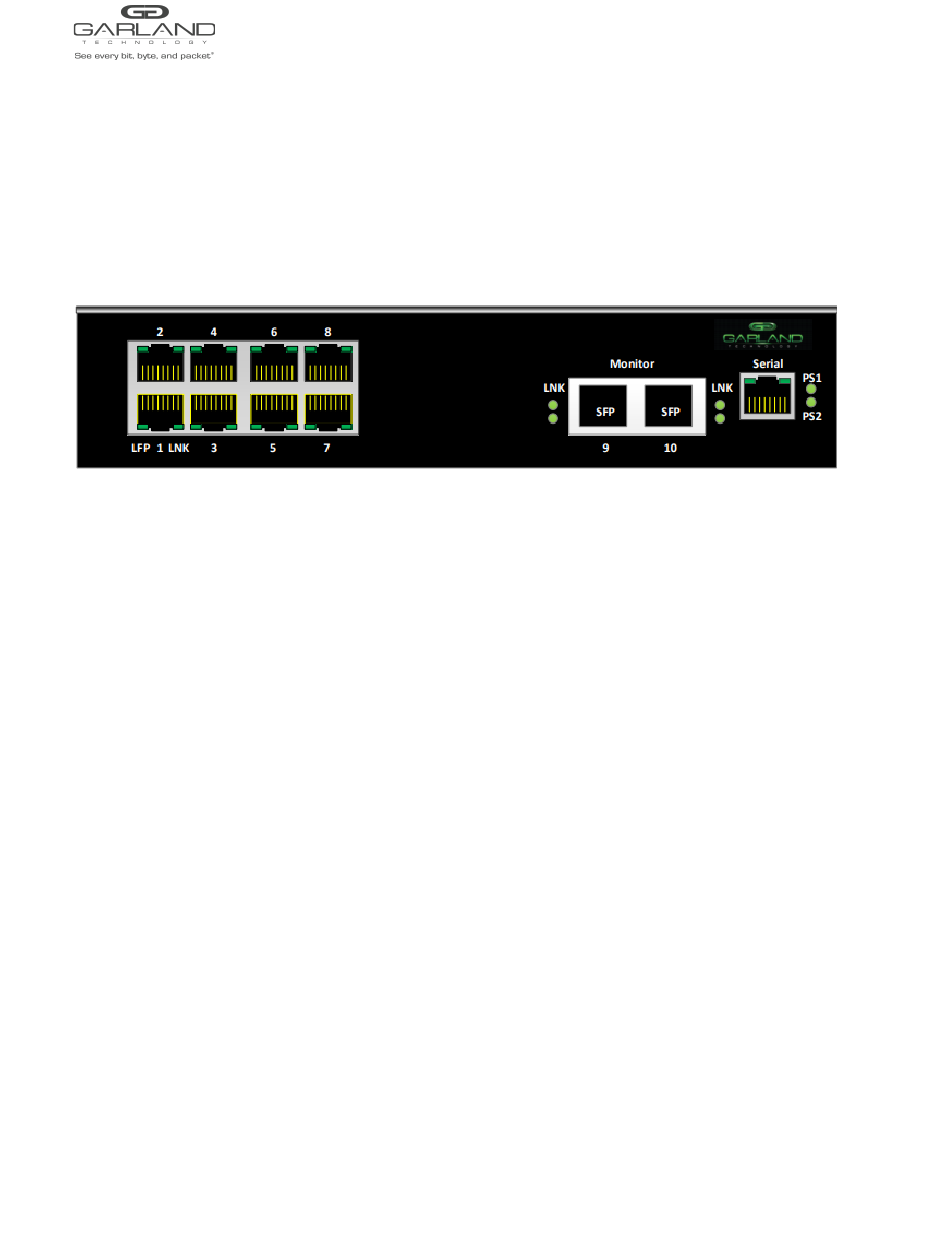

Front Panel
LED Indications
Port 1 LFP
Port 1 LNK
Port 2 LFP
Port 2 LNK
Port 3 LFP
Port 3 LNK
Port 4 LFP
Port 4 LNK
Port 5 LFP
Port 5 LNK
Port 6 LFP
Port 6 LNK
Port 7 LFP
Port 7 LNK
Port 8 LFP
Port 8 LNK
Port 9 LNK
Port 9 Activity
Port 10 LNK
Port 10 Activity
PS1
PS2
Interfaces
Serial
Garland Technology | 716.242.8500 | garlandtechnology.com/support
Copyright © 2021 Garland Technology, LLC. All rights reserved.
Orange indicates LFP on Off indicates LFP off
Link LED
Orange indicates LFP on Off indicates LFP off
Link LED
Orange indicates LFP on Off indicates LFP off
Link LED
Orange indicates LFP on Off indicates LFP off
Link LED
Orange indicates LFP on Off indicates LFP off
Link LED
Orange indicates LFP on Off indicates LFP off
Link LED
Orange indicates LFP on Off indicates LFP off
Link LED
Orange indicates LFP on Off indicates LFP off
Link LED
Link/Activity LED
Solid Green indicates no Activity Flashing Green indicates activity
Link/Activity LED
Solid Green indicates no Activity Flashing Green indicates activity
Power Supply 1 LED (Green indicates normal / Off indicates power not applied)
Power Supply 2 LED (Green indicates normal / Off indicates power not applied)
Serial Interface used to configure the INT1G10CSA
(see Settings for the Console Port)
