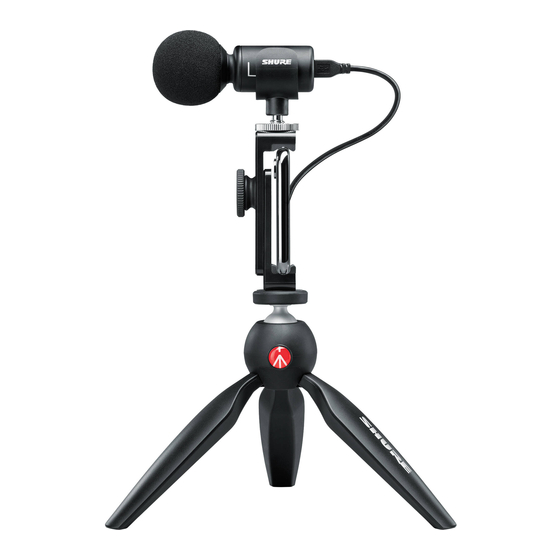

- Page 1 MV88plus Stereo USB Micro- phone Shure MV88+ Stereo USB Microphone The Shure digital USB microphone, MV88+ Stereo USB, user guide. Version: 1.0 (2021-I)
-
Page 2: Table Of Contents
Shure Incorporated Table of Contents Limiter MV88plus Stereo USB Microphone Shure MV88+ Compressor Stereo USB Microphone High Pass Filter General Description Left-Right Channel Swap Features Equalizer Quick Setup Streaming Tips Windscreen Control your Levels Use Lock Mode to Lock In Your Sound... -
Page 3: Mv88Plus Stereo Usb Microphone Shure Mv88
Shure MV88+ Stereo USB Microphone General Description ® The Shure MV88+ is a professional quality condenser microphone that plugs directly into a mobile device using a Lightning or USB-C connector. Two microphone capsules in a Mid-Side configuration provide an adjustable stereo image, suitable for cap- ™ turing a variety of sources, including music and speech. The ShurePlus MOTIV app allows you to customize your sound with digital signal processing (DSP), preset mode selection, gain adjustment, compression, and stereo width control. -
Page 4: Quick Setup
Shure Incorporated Quick Setup Mounting the Microphone Windscreen The windscreen offers maximum protection from plosives and creates a warmer, more intimate sound for speech applications, like podcasting and gaming. The MV88+ Microphone The MV88+ features two capsules: one capsule has a cardioid pattern and picks up sound directly in front of the microphone. -
Page 5: Mv88+ Outputs
Shure Incorporated Note: The app has a Left-Right Channel Swap to flip the audio channels. MV88+ Outputs • 3.5mm monitor output for connecting to headphones and earphones • Send audio to your recording device using the micro-B USB port MV88+ LEDs Android/Mac/PC... -
Page 6: Aiming The Microphone
The MV88+ fits into a standard A25D mic clip. So, you can place it anywhere that you can put a mic stand. Tip: For correct stereo orientation, ensure that the Shure name is clearly visible on the top of the microphone. If the name is not visible, adjust the microphone accordingly. -
Page 7: Handheld Recording
Shure Incorporated Handheld Recording The legs collapse to create a portable hand-held stand. The Shure MOTIV Desktop App Use the Shure MOTIV desktop app to quickly adjust microphone settings. The device stores the most recently used settings for quick setup. 7/17... -
Page 8: Mic Setup
Shure Incorporated Mic Setup ① Settings Click the three dots to access MOTIV software information, manage presets, application preferences and check for firmware updates. ② Mic Selection/Settings Lock Use the drop-down menu to access settings for your microphone. Click the lock to lock and unlock selected settings. -
Page 9: Preset Modes
Shure Incorporated ⑤ Monitor Mix slider Move the slider to adjust the levels of mic and playback sound sources. See "Monitor Mix Blend" for more information on monitoring. ⑥ Preset Modes Set stereo width, equalization, and compression for specific applications. See "Preset Modes" for more infor- mation. ⑦ Polar Pattern Selection Swipe to choose your pick-up pattern. Use the dots (handles) to adjust the width of the stereo im- age. Tip: Consider the location of the microphone and the size of the sound source when adjusting the width. For example, speech benefits from a narrow width, which improves clarity and rejects ambient (room) sound. -
Page 10: Polar Pattern Selection (Stereo And Mono Settings)
Shure Incorporated Polar Pattern Selection (Stereo and Mono Settings) The following demonstrates microphone capsule pick-up patterns. When operating in a mono mode, stereo width is not ad- justable. Front = On Stereo Sides = On Front = On Mono Cardioid Sides = Off Front = Off Mono Bidirectional Sides = On Front = On Raw Mid-Side Sides = On See "Raw Mid-Side Output"... -
Page 11: Monitor Mix Blend
Shure Incorporated Manual Decoding of Raw Mid-Side Audio Monitor Mix Blend Use the monitor mix slider to adjust how much of each source you can hear. For best results, start monitoring at the midpoint and adjust. • Move the slider towards the microphone icon (Mic) to hear more of the audio going into the mic. Like when you're singing over a recorded guitar track and want to clearly hear your voice. -
Page 12: High Pass Filter
Shure Incorporated High Pass Filter Choose no HPF for the most natural sound. Or select 75 Hz or 150 Hz to reduce wind noise, room noise, or proximity effect. 75 Hz Low frequency cutoff Provides a 6 dB-per-octave cutoff at 75 Hz. Helps eliminate floor rumble and low-frequency room noise from heating and air conditioning systems. -
Page 13: Firmware Update
Check for firmware update. Tap the three dots in the top right corner and select About MOTIV > Check for Update Note: Contact Shure Service and Repair if you continue to experience any issues. Firmware Update Take advantage of additional features and design enhancements by updating the firmware on your MOTIV Desktop Application when prompted. A notification will appear when a firmware update is available. You have the option to download the update im-... -
Page 14: System Requirements And Compatibility: Windows
Shure Incorporated • Minimum 2 GB of RAM • Minimum 500 MB of hard disk space System Requirements and Compatibility: Windows • Windows 10 • 64 bit • Minimum 2 GB of RAM • Minimum 500 MB of hard disk space System Requirements and Compatibility: iOS •... - Page 15 Shure Incorporated Sensitivity -37 dBFS/Pa at 1 kHz [1] [2] Maximum SPL 120 dB SPL [2] Limiter Compressor Equalizer 5-band Power Requirements Powered through USB or Lightning connector Housing All metal construction Net Weight Without Windscreen 79.0 g (2.78oz.) With Windscreen 81.5 g (2.87oz.) Dimensions Without Windscreen 27 x 27 x 77 mmH x W x D With Windscreen 44 x 44 x 93 mmH x W x D [1] 1 Pa=94 dB SPL [2]At Minimum Gain, Flat Mode...
-
Page 16: Certifications
This microphone for use with any microphone stand with a 5/8" threaded adapter. Note: Testing is based on the use of supplied and recommended cable types. The use of other than shielded (screened) cable types may degrade EMC per- formance. This product meets the Essential Requirements of all relevant European directives and is eligible for CE marking. The CE Declaration of Conformity can be obtained from: www.shure.com/europe/compliance Authorized European representative: Shure Europe GmbH Global Compliance Jakob-Dieffenbacher-Str. - Page 17 Shure Incorporated Made for iPhone Xs Max, iPhone Xs, iPhone XR, iPhone X, iPhone 8 Plus, iPhone 8, iPhone 7 Plus, iPhone 7, iPhone SE, iPhone 6s Plus, iPhone 6s, iPhone 6 Plus, iPhone 6, iPhone 5s, iPhone 5c, iPhone 5, iPad Pro (10.5-inch), iPad Pro (12.9- inch) 2nd generation, iPad Pro (12.9-inch) 1st generation, iPad Pro (9.7-inch), iPad mini 4, iPad mini 3, iPad mini 2, iPad Air 2,...
