- Page 1 Operating and installation instructions REMKO Wi-Fi stick Smart-Control For the room air conditioner series SKW, RVT, ATY, ML, MXW, RVD and RXT 0293-2021-06 Edition 1, en_GB Read the instructions prior to performing any task!
- Page 2 Read these operating instructions carefully before commis- sioning / using this device! These instructions are an integral part of the system and must always be kept near or on the device. Subject to modifications; No liability accepted for errors or mis- prints! Translation of the original...
-
Page 3: Table Of Contents
Technical data and scope of delivery....................7 2.1 Technical data..........................7 2.2 Scope of delivery..........................7 Operation............................... 8 3.1 General operation........................... 8 3.2 Connection via WPS........................9 3.3 Access via the REMKO Smart-Control app..................9 Assembly and installation........................10 Functions............................. 16 Index..............................18... -
Page 4: Safety And Usage Instructions
REMKO Wi-Fi stick Smart-Control Safety and usage instructions CAUTION! This combination of symbol and signal word 1.1 General safety notes warns of a potentially hazardous situation, which if not avoided may cause injury or mate- Carefully read the operating manual before com- rial and environmental damage. -
Page 5: Safety Notes For The Operator
The setup, connection and operation of the plete and return the "certificate of warranty" to units and its components must be undertaken REMKO GmbH & Co. KG at the time when the in accordance with the usage and operating units are purchased and commissioned. -
Page 6: Transportation And Packaging
REMKO Wi-Fi stick Smart-Control 1.11 Transportation and packaging The units are shipped in sturdy transport pack- aging. Immediately check the units on delivery and make a note of any damage or missing parts on the delivery note. Inform the forwarding agent and contractual partner. -
Page 7: Technical Data And Scope Of Delivery
Technical data and scope of delivery 2.1 Technical data Unit data Series Wi-Fi stick Smart-Control Operating mode Interface for control via App WLAN range approx. 100 WLAN radio class 802.11b/g/n Wi-Fi module Espressif manufacturer Frequency band 2412-2484 Transmitter power 19.5... -
Page 8: Operation

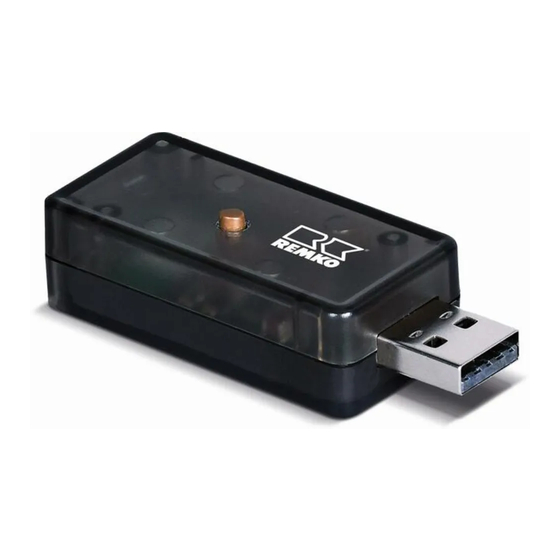

The REMKO Smart-Control Wi-Fi stick is an interface for enabling wireless connection between the REMKO indoor unit and a WLAN network. With the REMKO Smart-Control app, the indoor unit can be controlled via a mobile device. There is an LED on the Wi-Fi stick for reading the current status and a button for operating the Wi-Fi stick. -
Page 9: Connection Via Wps
3.3 Access via the REMKO Smart-Control app The REMKO Smart-Control app is available for end devices with iOS (from 13.7.) and Android (from 6.0) operating systems. By scanning the QR code, you should be redirected to the Apple App Store (iOS) or the Google Play Store. -
Page 10: Assembly And Installation
REMKO Wi-Fi stick Smart-Control Assembly and installation Disconnect the system from the power supply. The Wi-Fi stick is inserted into the existing inter- Open the unit cover. face. The interface is located on the SKW, RVT and ATY series units on the display board, which is Loosen the screw on the socket of the dis- attached on the right behind the unit's panel. - Page 11 Attach the remaining part of the interface board to the panel and fix it with the screw. Insert the Wi-Fi stick into the interface. Place the display board including the socket in its original position and fix it with the screw. Close the unit cover.
- Page 12 REMKO Wi-Fi stick Smart-Control ML and MXW (up to 08/2021) Loosen the Phillips screw and remove the adapter board. The standard adapter board is replaced by the interface board. The circuit board is attached to the left-hand side of the rear panel of the ML and MXW series units.
- Page 13 RVD 355-525 DC Connect the extension cable to the Smart- Port cable and attach the SmartPort to the The Wi-Fi stick is inserted into the interface of the bracket. Wi-Fi SmartPort. The SmartPort is connected to the control board on unit sizes RVD 355-525 DC. Replace the control board cover.
- Page 14 REMKO Wi-Fi stick Smart-Control RVD 685-1055 DC The Wi-Fi stick is inserted into the interface of the The Wi-Fi stick is inserted into the interface of the Wi-Fi adapter cable. The adapter cable is con- Wi-Fi SmartPort. The SmartPort is connected to nected to the control board on unit sizes RVD the control board.
- Page 15 Connect the extension cable to the Smart- Port cable and attach the SmartPort to the bracket. Set the rotary switch S1 to 0 and the two switches of the DIP switch S2 to OFF. Replace the control board cover. Close the filter grids.
-
Page 16: Functions
REMKO Wi-Fi stick Smart-Control Functions The following functions rates can be controlled with the Smart-Control app: Singlesplit Switching Operating mode Temperature Unit series on/off Adjusting Adjusting SKW 261-521 DC (from 2021) ML 265-685 DC (up to 07/2021) ML 265-685 DC (from 07/2021) - Page 17 Multisplit Switching Operating mode Temperature Unit series on/off Adjusting Adjusting MXW 204-524 (up to 07/2021) MXW 204-524 (from 07/2021) MXD 204-524 ATY 356 Multisplit (continued) Anti-freeze pro- Swing tection Unit series function Fan level function MXW 204-524 (up to 07/2021) MXW 204-524 (from 07/2021) MXD 204-524 ATY 356...
-
Page 18: Index
Access via app ......9 REMKO app ......9 Assembly . - Page 20 REMKO QUALITY WITH SYSTEMS Air-Conditioning | Heating | New Energies Telephone +49 (0) 5232 606-0 REMKO GmbH & Co. KG Hotline within Germany +49 (0) 5232 606-0 Klima- und Wärmetechnik Telefax +49 (0) 5232 606-260 Im Seelenkamp 12 E-mail info@remko.de...
