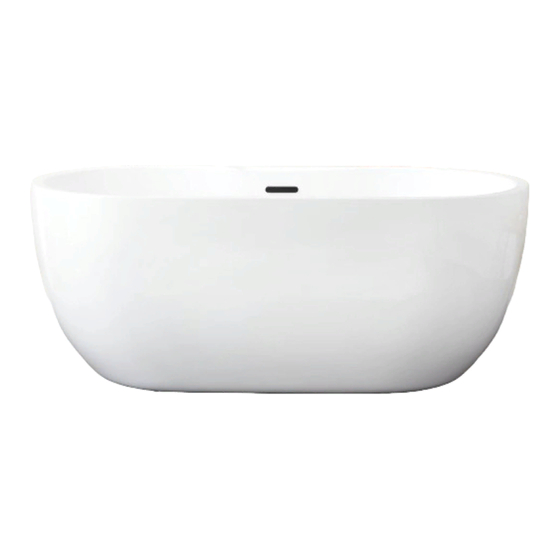

Solid surface tub

Advertisement

Quick Links

O C A L A
SOLID SURFACE TUB
BAÑERA OCALA DE SUPERFICIE SÓLIDA
SKU: 948060
BEFORE YOU BEGIN
We recommend consulting a professional if you are
unfamiliar with installing plumbing �xtures. Signature
Hardware accepts no liability for any damage to the
bathtub, plumbing, �oor, walls, or for personal injury
during installation.
Observe all local plumbing and building codes.
Unpack and inspect the product for shipping
damage. If any damage is found, contact our
Customer Relations team at 1-800-221-3379.
ANTES DE COMENZAR
Le recomendamos que consulte a un profesional si no
sabe cómo instalar accesorios de plomería. Signature
Hardware no asume ninguna responsabilidad con
respecto a los daños causados a la tina, sistema de
plomería, paredes, ni por daños personales que
ocurran durante la instalación.
Cumpla con todas las normas locales de plomería y
construcción.
Retire el empaque y verifique el grifo para ver si se
produjeron daños durante el envío. Si encuentra algún
daño, comuníquese con nuestro equipo de Servicio al
cliente al 1-800-221-3379.
For Warranty information, please visit: signaturehardware.com/services/warranty
Para obtener información sobre la garantía, visite: signaturehardware.com/services/warranty
TOOLS AND MATERIALS:
HERRAMIENTAS Y MATERIALES:
*Additional Tools and Materials for Quick Connect
Drop-In Drain
*Herramientas y materiales adicionales para drenaje
embutido de
conexión rápida
Pencil
Tape Measure
Lápiz
Adjustable
Wrench
Llave
ajustable
Damp Cloth
Paño húmedo
PVC y cemento
*1-3/4" Screws
*Long-nose Pliers
Pinzas de punta
1
Phillips
Screwdriver
Cinta métrica
Destornillador
Phillips
Level
Metal Blade
Hacksaw
Nivelador
Sierra para
metales
PVC Primer
Silicone Sealant
and Cement
(100% Neutral
Cure)
Pintura para
Sellador de
silicona (100%
curado neutro)
(x5)
Tornillos de
1-3/4" (x5)
REVISED 04/10/2020
CODES: SHOCFS5932, SHOCFS6632
1.800.221.3379

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OCALA 948060 and is the answer not in the manual?

Questions and answers

Summary of Contents for Signature Hardware OCALA 948060

  • Page 1 O C A L A SOLID SURFACE TUB BAÑERA OCALA DE SUPERFICIE SÓLIDA SKU: 948060 BEFORE YOU BEGIN TOOLS AND MATERIALS: We recommend consulting a professional if you are HERRAMIENTAS Y MATERIALES: unfamiliar with installing plumbing �xtures. Signature Hardware accepts no liability for any damage to the *Additional Tools and Materials for Quick Connect bathtub, plumbing, �oor, walls, or for personal injury Drop-In Drain...
  • Page 2: Getting Started

    O C A L A SOLID SURFACE TUB BAÑERA OCALA DE SUPERFICIE SÓLIDA SKU: 948060 GETTING STARTED PLANNING Ensure that you have gathered all the required PLANIFICACIÓN materials that are needed for the installation. Use the tub’s PDF speci�cation sheet as a reference Ensure that your bathroom �oor is adequately when planning your layout.
  • Page 3: Installation

    O C A L A SOLID SURFACE TUB BAÑERA OCALA DE SUPERFICIE SÓLIDA SKU: 948060 INSTALLATION 3. Connect the installed tub tailpiece to plumbing. INSTALACIÓN 3. Conecte el tubo de extensión de la bañera instalada en 1. Set the tub in the desired location and mark the la tubería.
  • Page 4 O C A L A SOLID SURFACE TUB BAÑERA OCALA DE SUPERFICIE SÓLIDA SKU: 948060 INSTALLATION 5. Place level across the top of the tub to ensure proper installation. If tub is not level, mortar should be WITH QUICK CONNECT DRAIN used to level tub.
  • Page 5 O C A L A SOLID SURFACE TUB BAÑERA OCALA DE SUPERFICIE SÓLIDA SKU: 948060 3. Cut the provided 1 ½” PVC pipe 3” shorter than the 5. Apply PVC primer and cement to the outside of the distance between the �oor and the p-trap (measure- PVC pipe and to the inside of the drop-in drain insert.
  • Page 6 O C A L A SOLID SURFACE TUB BAÑERA OCALA DE SUPERFICIE SÓLIDA SKU: 948060 7. Install the �ooring surface, such as tile, leaving an 9. Once ready for tub installation, apply the provided opening around the drain as shown. lubricant to the rubber portion of the inside of the drain.
  • Page 7 O C A L A SOLID SURFACE TUB BAÑERA OCALA DE SUPERFICIE SÓLIDA SKU: 948060 11. Optional: If installing a separately purchased tail 13. With caution, slowly drop the tub into position, piece and �oor �ange, measure and cut the 12” tail inserting the tail piece into the drop-in drain.
  • Page 8: Cleaning And Maintenance

    O C A L A SOLID SURFACE TUB BAÑERA OCALA DE SUPERFICIE SÓLIDA SKU: 948060 CLEANING AND MAINTENANCE SCRATCH REMOVAL LIMPIEZA Y MANTENIMIENTO 1. Use warm water to remove dirt and dust from the surface. SOLID SURFACE TUBS 2. Using wet #400 sandpaper, gently sand the damaged area in the direction parallel to the scratch.
