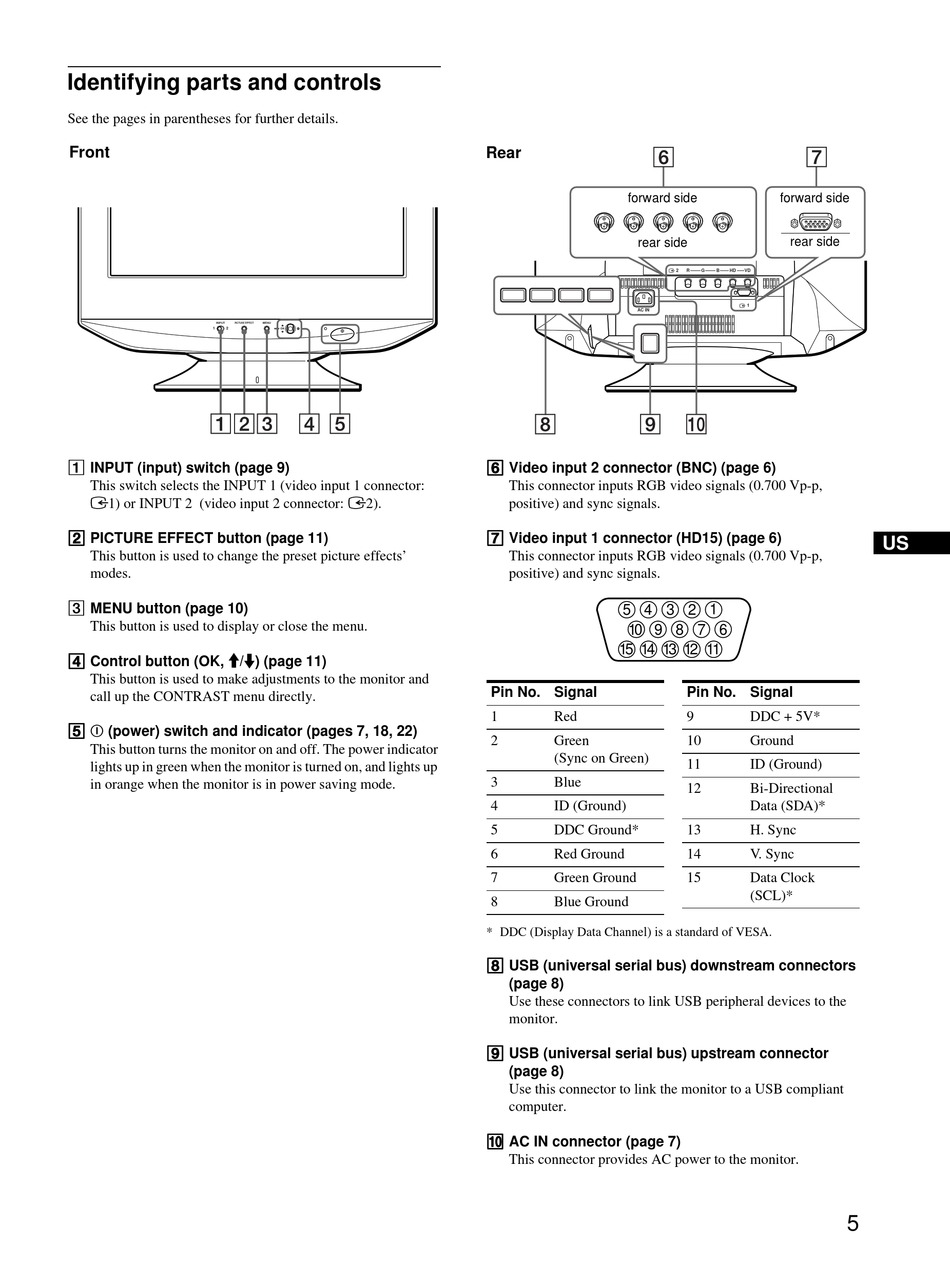

Identifying parts and controls

See the pages in parentheses for further details.
Front
INPUT PICTURE EFFECT
1 2
1 INPUT (input) switch (page 9)
This switch selects the INPUT 1 (video input 1 connector:
y1) or INPUT 2 (video input 2 connector: y2).
2 PICTURE EFFECT button (page 11) 2
2 2
This button is used to change the preset picture effects'
modes.
3 MENU button (page 10)
This button is used to display or close the menu.
4 Control button (OK, M/m) (page 11) 4
4 4
This button is used to make adjustments to the monitor and
call up the CONTRAST menu directly.
5 ! (power) switch and indicator (pages 7, 18, 22) 5
5 5
This button turns the monitor on and off. The power indicator
lights up in green when the monitor is turned on, and lights up
in orange when the monitor is in power saving mode.
MENU
OK
Rear
forward side
rear side
AC IN
6 Video input 2 connector (BNC) (page 6) 6 6 6
This connector inputs RGB video signals (0.700 Vp-p,
positive) and sync signals.
7 7 Video input 1 connector (HD15) (page 6)
7 7
This connector inputs RGB video signals (0.700 Vp-p,
positive) and sync signals.
5 4 3 2 1
10 9
15 14 13
Pin No. Signal
1 Red
2 Green
(Sync on Green)
3 Blue
4 ID (Ground)
5 DDC Ground*
6 Red Ground
7 Green Ground
8 Blue Ground
* DDC (Display Data Channel) is a standard of VESA.
8 USB (universal serial bus) downstream connectors 8 8 8
(page 8)
Use these connectors to link USB peripheral devices to the
monitor.
9 9 9 USB (universal serial bus) upstream connector 9
(page 8)
Use this connector to link the monitor to a USB compliant
computer.
q; q; AC IN connector (page 7)
q; q;
This connector provides AC power to the monitor.
forward side
rear side
2 R G B HD VD
1
8 7 6
12 11
Pin No. Signal
9 DDC + 5V*
10 Ground
11 ID (Ground)
12 Bi-Directional
Data (SDA)*
13 H. Sync
14 V. Sync
15 Data Clock
(SCL)*
5
