Sunjoy A103000704 Assembly Instructions

Coral coast graham 8 x 5 ft. grill gazebo

Download this manual

Assembly Instructions

Item#:A103000704

Coral Coast Graham 8 x 5 ft. Grill Gazebo

Part #

P000200452

P000200453

P000100323

P006100167

P000601327

P000501159

P000501160

P000601326

P000400883

P000400884

P000400885

P002100323

P000501161

P001100533

P001100532

P005800001

H010110005

H050010020

H010020012

H010110014

H040010004

H070010012

H090010017

SUNR006-1

Need help?

Do you have a question about the A103000704 and is the answer not in the manual?

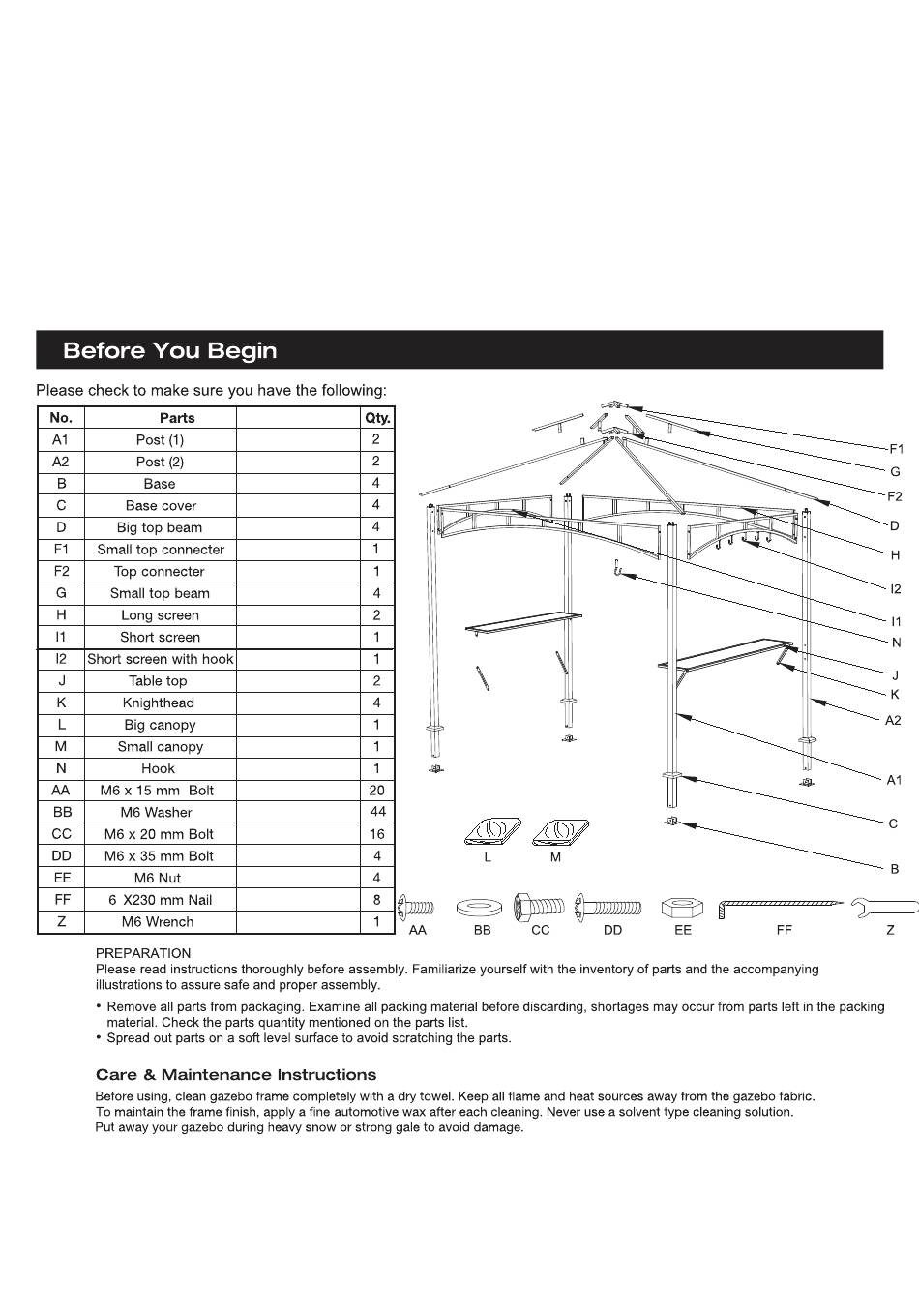

Page 1 Assembly Instructions Item#:A103000704 SUNR006-1 Coral Coast Graham 8 x 5 ft. Grill Gazebo Part # P000200452 P000200453 P000100323 P006100167 P000601327 P000501159 P000501160 P000601326 P000400883 P000400884 P000400885 P002100323 P000501161 P001100533 P001100532 P005800001 H010110005 H050010020 H010020012 H010110014 H040010004 H070010012 H090010017...
Page 2 Insert the big top beam (D) into Set the base cover (C) into the post A1 (A2) then use the top connector (F2). Hang the the bolt (AA) and washer hook (N) on the top connector (F2). (BB) to connect the base (B) and the post A1 (A2).
Page 3 Put the big canopy (L) onto the big top but do not fully spread it out. Attach the installed small top beam (G) to the big top beam (D). Attach the small canopy (M). Spread out the big canopy (L). Fasten the canopy and the beam with the velcros.
Page 4 This tent meets the flammability requirements of CPAI-84. The fabric may burn if left in continuous contact with any flame source. The application of any foreign substance to the tent fabric may render the flame – resistant properties ineffective. Manufacturer: Sunjoy Group Country of Origin: China ：2020200002...
