TC Electronic JUNE-60 V2 CHORUS Quick Start Manual

TC Electronic

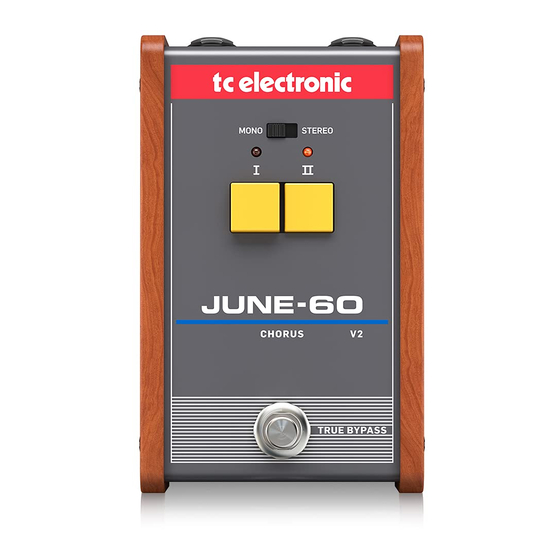

JUNE-60 V2 CHORUS
Authentic Recreation of the Juno-60
Synthesizer Chorus with 2-Button Interface
and BBD Circuitry
Quick Start Guide
(1)
(2)
(5)
(4)
(3)
V 1.0

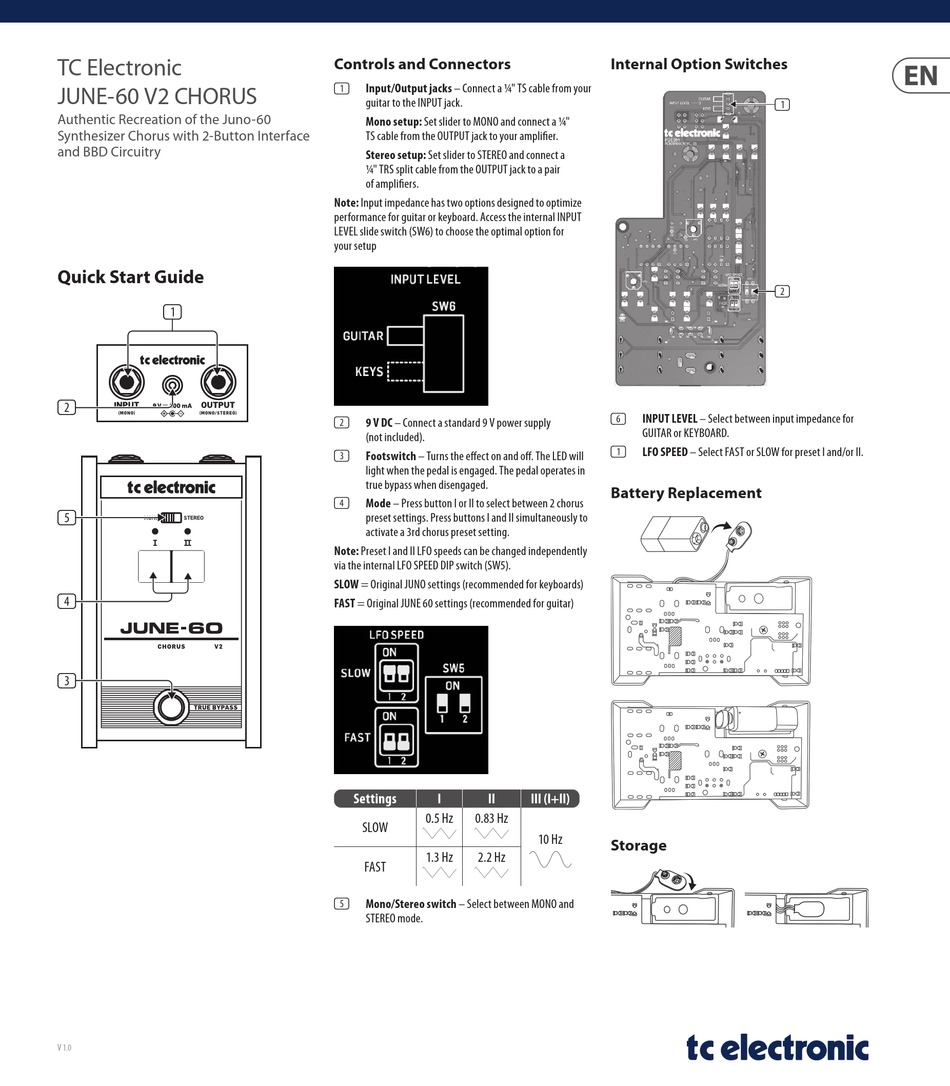

Controls and Connectors

Input/Output jacks – Connect a 1/4" TS cable from your
(1)
guitar to the INPUT jack.
Mono setup: Set slider to MONO and connect a 1/4"
TS cable from the OUTPUT jack to your amplifier.
Stereo setup: Set slider to STEREO and connect a
1/4" TRS split cable from the OUTPUT jack to a pair
of amplifiers.
Note: Input impedance has two options designed to optimize
performance for guitar or keyboard. Access the internal INPUT
LEVEL slide switch (SW6) to choose the optimal option for
your setup
9 V DC – Connect a standard 9 V power supply
(2)
(not included).
Footswitch – Turns the effect on and off. The LED will
(3)
light when the pedal is engaged. The pedal operates in
true bypass when disengaged.
Mode – Press button I or II to select between 2 chorus
(4)
preset settings. Press buttons I and II simultaneously to
activate a 3rd chorus preset setting.
Note: Preset I and II LFO speeds can be changed independently
via the internal LFO SPEED DIP switch (SW5).
SLOW = Original JUNO settings (recommended for keyboards)
FAST = Original JUNE 60 settings (recommended for guitar)
Settings I II
0.5 Hz 0.83 Hz
SLOW
1.3 Hz 2.2 Hz
FAST
Mono/Stereo switch – Select between MONO and
(5)
STEREO mode.

Internal Option Switches

INPUT LEVEL – Select between input impedance for
(6)
GUITAR or KEYBOARD.
LFO SPEED – Select FAST or SLOW for preset I and/or II.
(1)

Battery Replacement

III (I+II)
10 Hz

Storage

(1)
(2)
