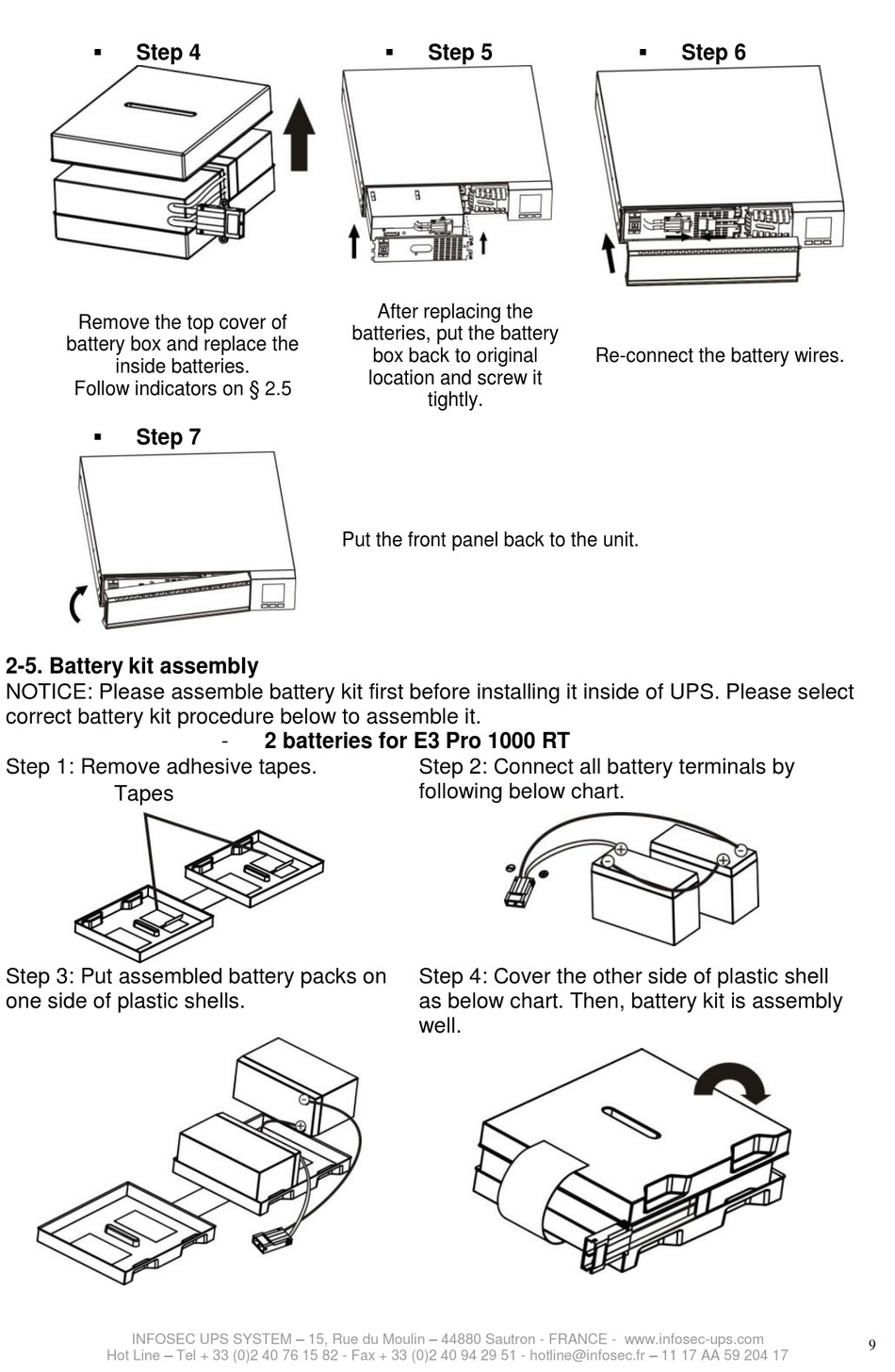

INFOSEC UPS SYSTEM E3 PRO RT 3000 VA User Manual page 9


Step 4
Remove the top cover of
battery box and replace the
inside batteries.
Follow indicators on § 2.5

Step 7
2-5. Battery kit assembly
NOTICE: Please assemble battery kit first before installing it inside of UPS. Please select
correct battery kit procedure below to assemble it.
Step 1: Remove adhesive tapes.
Tapes
Step 3: Put assembled battery packs on
one side of plastic shells.
INFOSEC UPS SYSTEM – 15, Rue du Moulin – 44880 Sautron - FRANCE - www.infosec-ups.com
Hot Line – Tel + 33 (0)2 40 76 15 82 - Fax + 33 (0)2 40 94 29 51 - hotline@infosec.fr – 11 17 AA 59 204 17

After replacing the
batteries, put the battery
box back to original
location and screw it
Put the front panel back to the unit.
- 2 batteries for E3 Pro 1000 RT
Step 5
tightly.
Step 2: Connect all battery terminals by
following below chart.
Step 4: Cover the other side of plastic shell
as below chart. Then, battery kit is assembly
well.

Step 6
Re-connect the battery wires.
