00: Exit setting
Interface

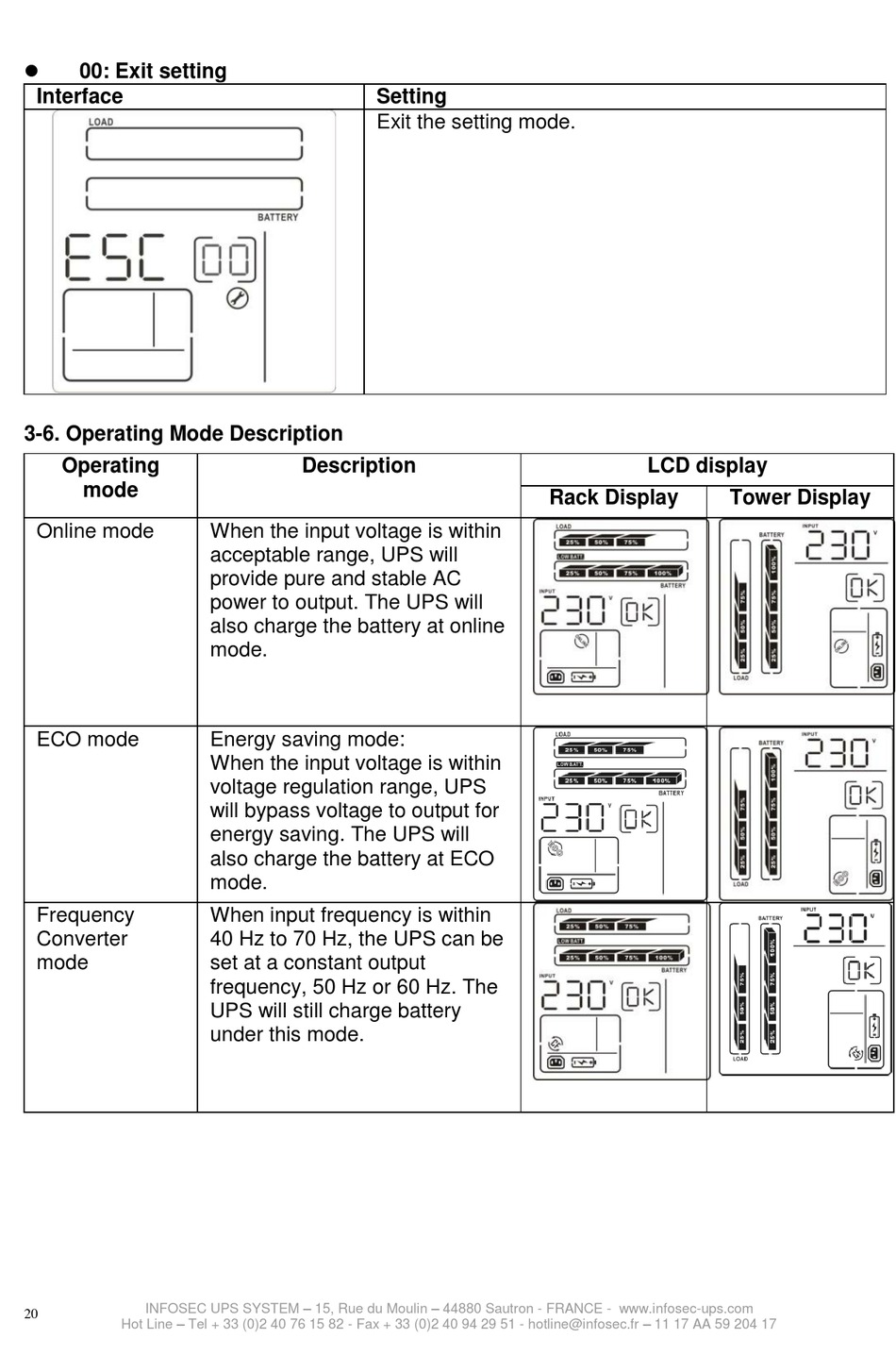

3-6. Operating Mode Description
Operating
mode
Online mode
ECO mode
Frequency
Converter
mode
INFOSEC UPS SYSTEM – 15, Rue du Moulin – 44880 Sautron - FRANCE - www.infosec-ups.com
20
Hot Line – Tel + 33 (0)2 40 76 15 82 - Fax + 33 (0)2 40 94 29 51 - hotline@infosec.fr – 11 17 AA 59 204 17
Setting
Exit the setting mode.
Description
When the input voltage is within
acceptable range, UPS will
provide pure and stable AC
power to output. The UPS will
also charge the battery at online
mode.
Energy saving mode:
When the input voltage is within
voltage regulation range, UPS
will bypass voltage to output for
energy saving. The UPS will
also charge the battery at ECO
mode.
When input frequency is within
40 Hz to 70 Hz, the UPS can be
set at a constant output
frequency, 50 Hz or 60 Hz. The
UPS will still charge battery
under this mode.
LCD display
Rack Display Tower Display
