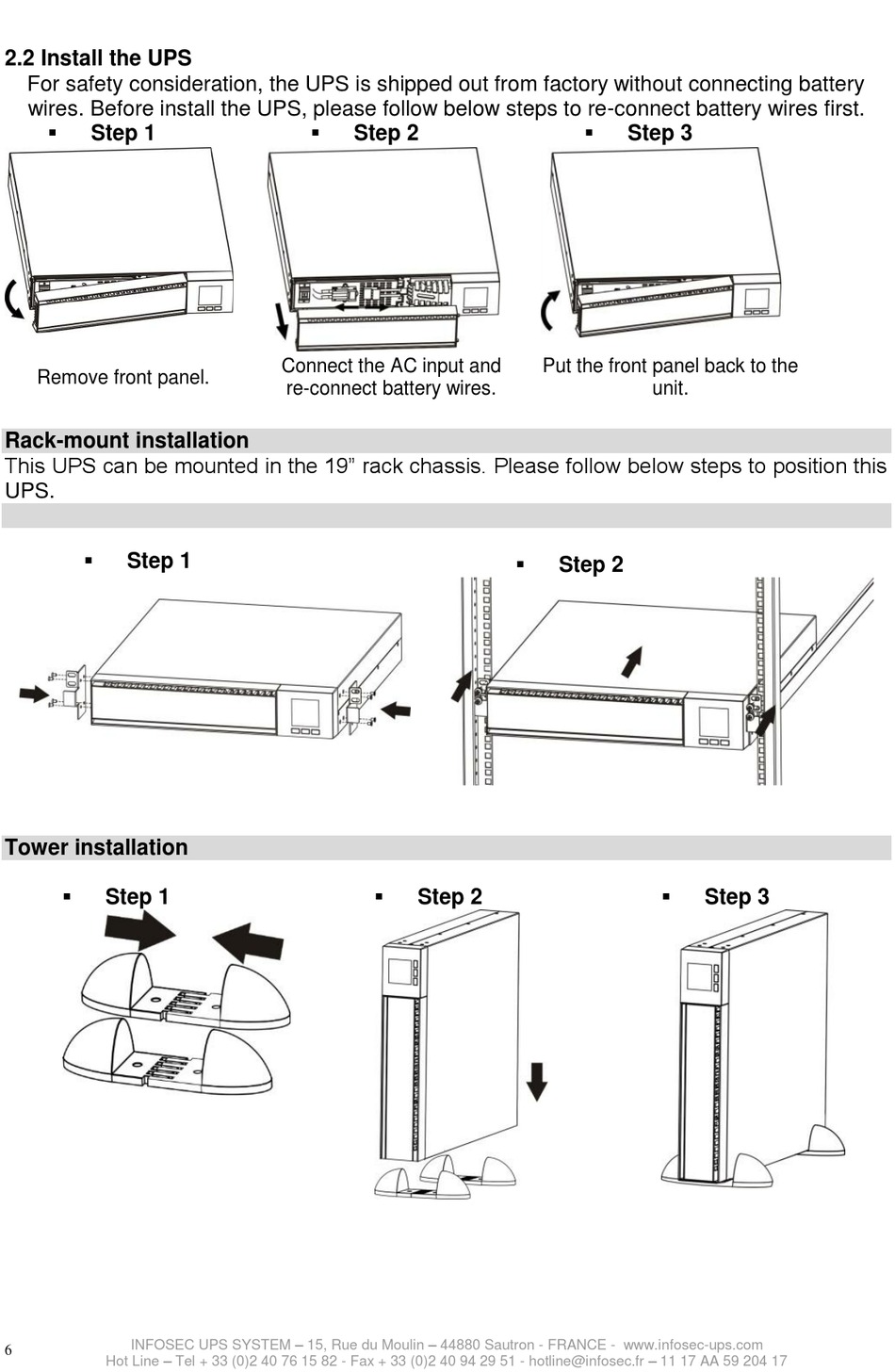

2.2 Install the UPS
For safety consideration, the UPS is shipped out from factory without connecting battery
wires. Before install the UPS, please follow below steps to re-connect battery wires first.

Step 1
Remove front panel.
Rack-mount installation
This UPS can be mounted in the 19" rack chassis. Please follow below steps to position this
UPS.

Step 1
Tower installation

Step 1
INFOSEC UPS SYSTEM – 15, Rue du Moulin – 44880 Sautron - FRANCE - www.infosec-ups.com
6
Hot Line – Tel + 33 (0)2 40 76 15 82 - Fax + 33 (0)2 40 94 29 51 - hotline@infosec.fr – 11 17 AA 59 204 17

Step 2
Connect the AC input and
re-connect battery wires.

Step 2

Step 3
Put the front panel back to the
unit.

Step 2

Step 3
