④ 剪掉扎扣，拔出推杆接线端子，找一新的推杆逆序装回
Remove the seat pad and wooden plate under it, cut the cable ties fixing the wire of the actuator, then pull out the
terminal. Proceed in the reverse order when replacing. Obviously, it is time-consuming.
Cable ties tightening the wire
of actuators

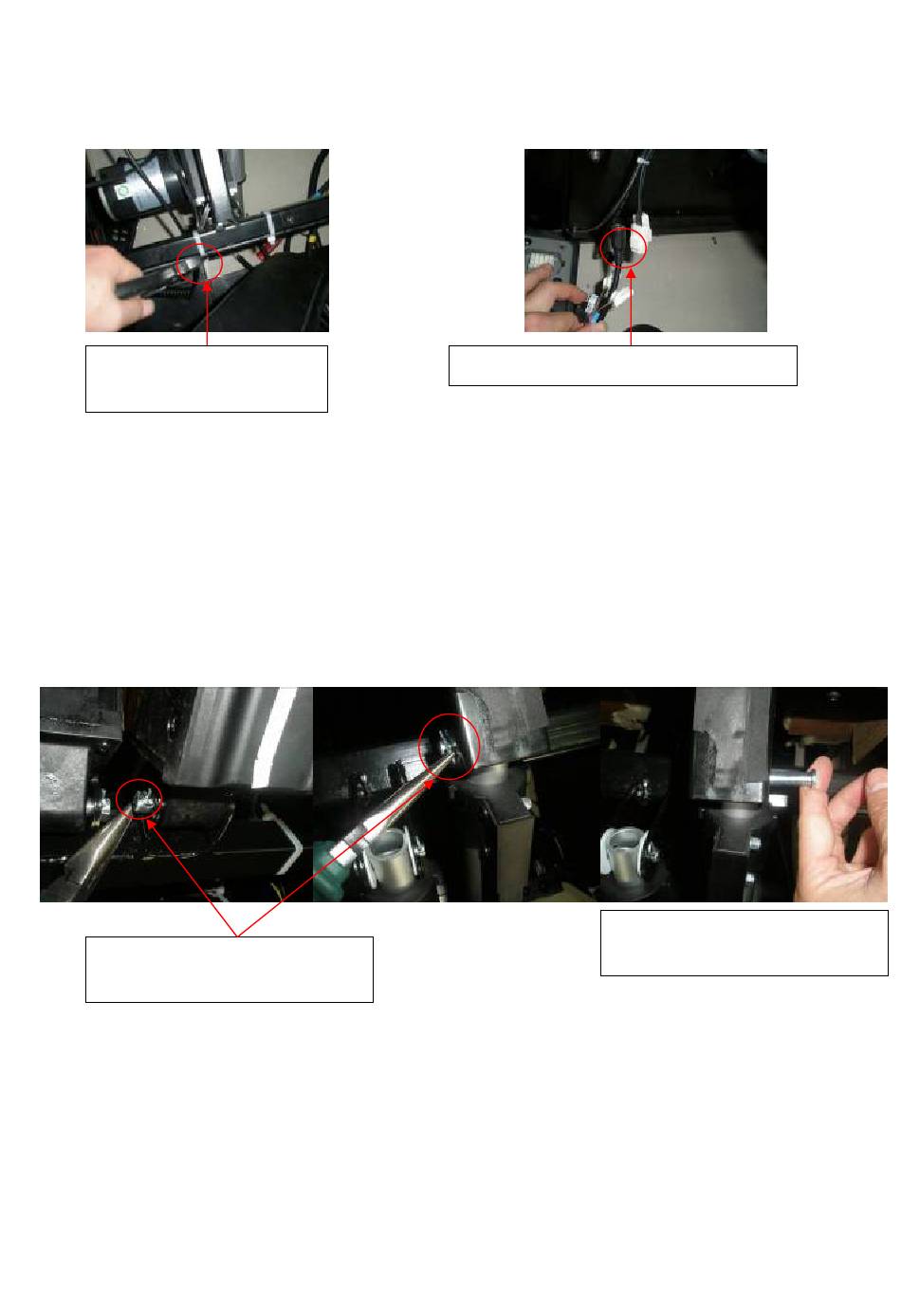

7. 小腿电动推杆的更换 Disassembly of the foot rest actuator
① 将小腿升至最高位置，可以看到小腿推杆两端的插销和销轴
Raise the foot rest to the extreme position, then you can find one end of the actuator is fixing on the U stay fork.
There are two plastic bush rings in the hole.
② 用尖嘴钳移出开口插销
Romove split pin, draw out flat head rivet securing the foot rest actuator on the U stay fork and remove the flat
head rivet.
③取出销轴 Romove split pin, draw out flat head rivet securing the foot rest actuator on the base frame and remove
the flat head rivet. Take care not forget the bush ring.
Flat head rivet securing the foot rest
actuator on the U stay fork
④ 剪掉扎扣，拔出推杆接线端子
Cut the cable ties fixing the wire of the actuator, then pull out the terminal. Take a new one, connect the terminals
and tighten the cable ties.
⑤ 更换新的推杆，逆序装回
Proceed in the reverse order of disassembly when assembly. Don't forget the bush ring in both ends.
Pull out the terminal (with red sleeve )
Flat head rivet securing the foot rest
actuator on the base frame
