[When mortise is viewed from above]

2. Install handle shaft

4. . Connect cable

Please connect the cables in
line with each color.
1) Check whether to lock automatically.
- If the door is not normally locked, please check auto-lock setting.
2) Check if Automatic/Manual lock works properly.
3) After registering the fingerprint/smartkey, confirm that the door is open
with the fingerprint/smartkey registered.
4) Explain sufficiently to customers about registration of
Fingerprint/smart key, password change.
5) Check if the door with the password registered is open.
- The password must be registered directly by customer.
6) Explain the internal double lock.
7) Explain battery replacement timing and emergency power supply.
8) Surely, deliver the warranty certificate and instruction manual that you
have written exactly to customer.
Caution Please insert batteries with the door open at installation.
Caution
Outter side
(O)
Inner side
Outter side
(X)
Inner side
Inner side
Outter side
5. Connect indoor and
outdoor body
PH M4 X 6

Check point

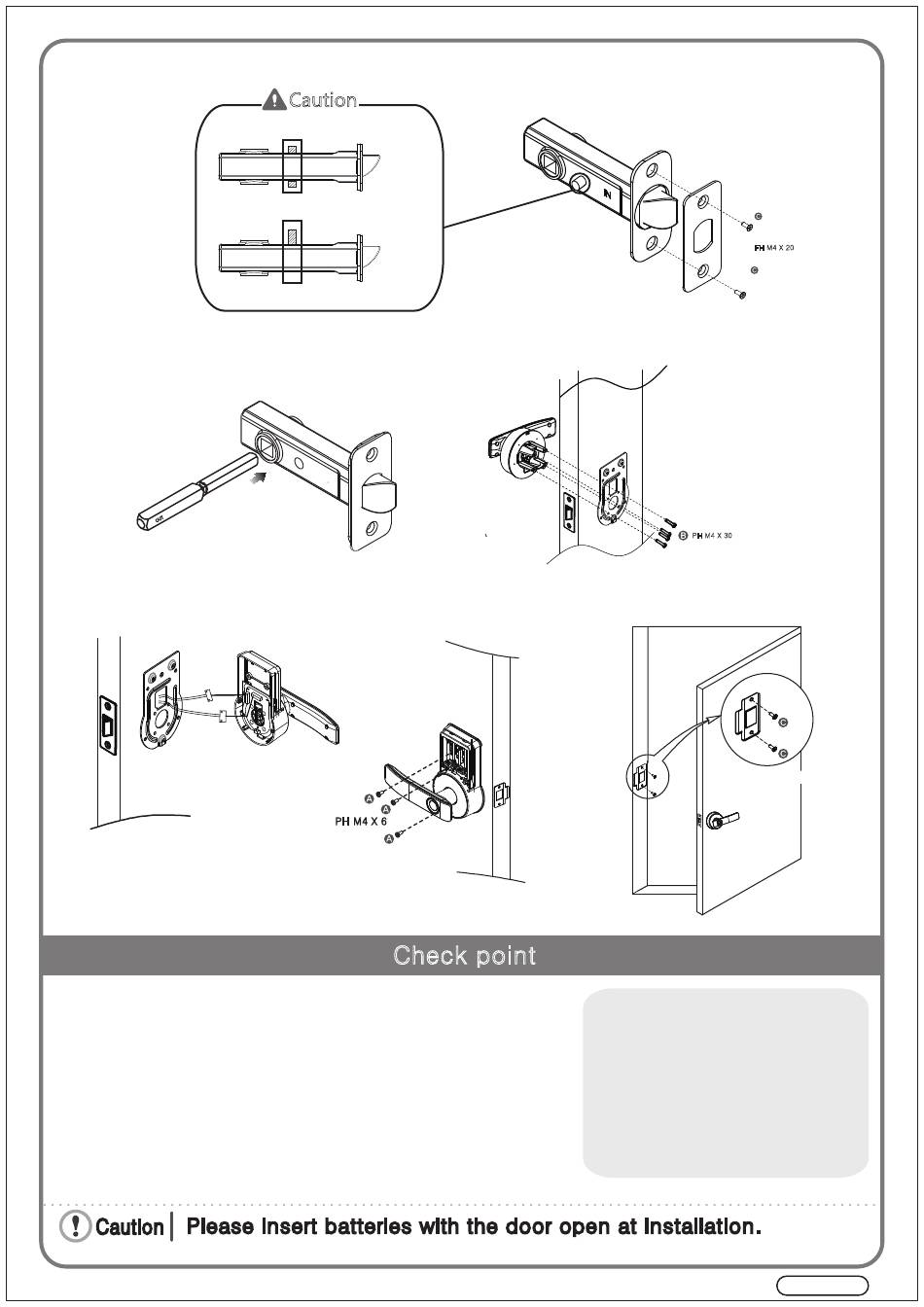

1. Install Mortise

3. Position indoor and outdoor body

6. Install Stricker

※Setting of direction of handle
①[Registration] button in inner side
②[Start] button in outer side
③[Registration] button in inner side
* Please press button in the order below
if the number plate is shown inside out
after installation.
FH M4 X 20
PH M4 X 30
<Enlarged view>
