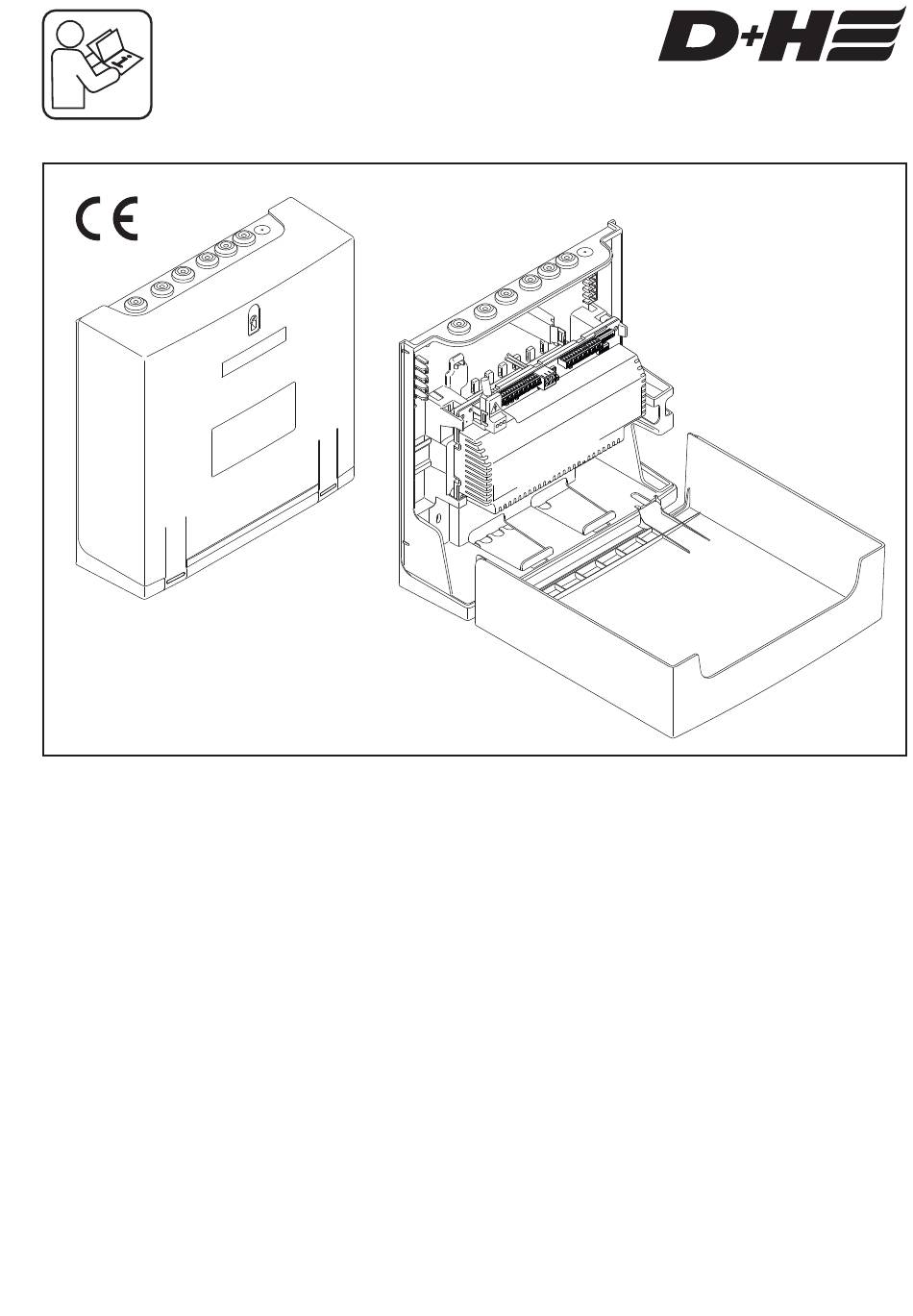

- Page 1 CPS-B1 en Table of contents ......Page ..2 Original instructions ..... . . Page ..3...
-
Page 2: Table Of Contents
View motherboard............................8 Pictogram explanation ..........................8 Signalling relais.............................8 Terminal assignment.............................9 DIP switch settings ............................10 Cables for D+H smoke an heat vent systems.....................11 Wiring plan (Paragon) ..........................11 24 V - Emergency supply..........................12 230 V - Power supply..........................13 Connection overview ..........................14 Connection of smoke vent buttons ......................15 Connection of fire detector..........................16... -
Page 3: Introduction
For all D+H SHEV systems, which have been service. The highest national and international installed by a D+H service and sales partner and are quality standards are therefore reliably fulfilled. regularly serviced, you will receive extended warranty services. -
Page 4: Intended Use
The yellow LED in the smoke vent button will start - Only for inside mounting flashing. - Just use unchanged original D+H parts A malfunction of the smoke vent system will be still indicated by the extinction of the green LED in the smoke vent button. -
Page 5: Technical Data
Plastic Colour white Dimensions WxHxD 310 x 310 x 104 mm * D+H Highspeed (HS) drives will be supported. SHEV opening Notes on drives Smoke gases are to be carried off as unhindered High-speed function (HS): as possible through smoke and heat vent opening All D+H drives with SHEV high-speed function are in case of fire. -
Page 6: Mounting Of Shev Control Panel
Mounting of SHEV control panel Mount control panel sheltered and easily accessible for maintenance in proximity of drive. Ø max. 5 mm (not included) 6/24 CPS-B1 English 99.828.32 1.4/07/21... -
Page 7: Overview
Jumper clamp holder Jumper clamp holder WAGO clamp 221 WAGO clamp 243 (not included) (not included) Document storage Screwless mounting of the motherboard 35 mm top hat rail for extension modules up to 29 mm width 7/24 99.828.32 1.4/07/21 English CPS-B1... -
Page 8: View Motherboard
View motherboard Line extension Extension Group Line socket socket socket ON-OFF-RESET (only CPS-B1-5-0101) Ventilation Service Mains Line DIP switch button socket socket* supply socket JP1** Control Alarm Group Line Rauchabzugszentrale fault fault Smoke Vent Controller Mains Fault CPS-B1-xx-0101 IN :... -
Page 9: Terminal Assignment
Output smoke vent button alarm display X5.8 Input smoke vent button reset line / close group X5.9 Output smoke vent button fault display Line extension socket X6 (only CPS-B1-5-0101) X6.1 B– FAS reference potential input X6.2 FAS alarm input +24V/+48V X6.3... -
Page 10: Dip Switch Settings
Actuate the DIP switch (ON/ OFF). All LEDs on the motherboard are switched on continuously for 10 seconds (except for the mains OK LED, which is lit as long as the mains voltage is present). 10/24 CPS-B1 English 99.828.32 1.4/07/21... -
Page 11: Cables For D+H Smoke An Heat Vent Systems
Cables for D+H smoke an heat vent systems When selecting and installing the cables, the Group cable (control panel - drive) regional electrical installation regulations At least three wire design: concerning wiring systems and the necessary - 2 wires for the supply of the drive... -
Page 12: 24 V - Emergency Supply
24 V - Emergency supply Emergency power supply for 72 hours. Use VdS approved storage batteries only! CPS-B1-2.5-0101: CPS-B1-5-0101: 2x 12V / 2,2 Ah ±0,3Ah 2x 12V / 3,4 Ah ±0,3Ah (Battery type 2) (Battery type 8) 12/24 CPS-B1 English... -
Page 13: 230 V - Power Supply
230 V - Power supply Funtional earth (FE) 230 V, 50 Hz Seperate electric circuit. Mark fuse. 13/24 99.828.32 1.4/07/21 English CPS-B1... -
Page 14: Connection Overview
Connection overview EM 47 K Drive LT 84-U (-SD) SD-O 371 RT 45 Mot.a Mot.b 10kW Mot.a Mot.b – – – LT (X3) MOT (X4) RM (X5) RT (X5) CPS-B1 14/24 CPS-B1 English 99.828.32 1.4/07/21... -
Page 15: Connection Of Smoke Vent Buttons
RT 45 10kW * Shunt connection by customer in the control panel – – RM (X5) RT (X5) CPS-B1 Parallel connection of 2x 2 buttons RT 45 RT 45 10kW * Shunt connection by customer in the control panel –... -
Page 16: Connection Of Fire Detector
Connection of fire detector Connection of fire alarm system Max. 8 fire detectors connectable. Connection via line socket. Only D+H approved detectors must be used. Triggering via switching contact. 1kΩ < optional > 10kΩ* SD-O 371 FD-T 271 – –... -
Page 17: Connection Of Magnetic Clamps
No output voltage during power failure! Magnetic Cutout clamps button Connection of alarm interlock Country specific function. B– B+ RS – B– B+ RS – LE (X6) LE (X6) CPS-B1 CPS-B1 1. Control Panel 2. Control Panel 17/24 99.828.32 1.4/07/21 English CPS-B1... -
Page 18: Informations For Starting
Mains still not available or line switch on "0" Connect battery or one of fuses faulty. lines. Control l ightens? Performance check alarm/reset and ventilation Smoke vent Possibly change poles in drive. flap opens and closes? 18/24 CPS-B1 English 99.828.32 1.4/07/21... -
Page 19: Inspection
Electrical devices, accessories, batteries and packa- according to D+H maintenance notes. Only original ging should be sorted for environmental-friendly D+H spare parts may be used. Repair is to be recycling. Do not dispose electrical devices and carried out exclusively by D+H. -
Page 20: Operation - Release In Case Of Alarm
Operation - Release in case of alarm Manual opening by smoke vent button: RAUCHABZUG Automatic opening by fire detector: Automatic opening by external control (e.g. fire alarm system): External control 20/24 CPS-B1 English 99.828.32 1.4/07/21... -
Page 21: Operation - Closing After Alarm
With manual release: In case of automatic release by fire detector or external control: Reset External control see DIP switch S1.3 page 10 Emergency closing in case of non-resettable alarm: OFF: (> 1 Sek.) Reset Service 21/24 99.828.32 1.4/07/21 English CPS-B1... -
Page 22: Operation - Day-To-Day Ventilation
The system will not automatically open again, Automatic if wind or rain has stopped. on/off Opening of the system for ventilation via vent button. LT 84-U-W 22/24 CPS-B1 English 99.828.32 1.4/07/21... - Page 23 23/24 99.828.32 1.4/07/21 English CPS-B1...
- Page 24 D+H Mechatronic AG Georg-Sasse-Str. 28-32 22949 Ammersbek , Germany Tel. : +49 40-605 65 : +49 40-605 65 254 E-Mail: info@dh-partner.com www.dh-partner.com © 2021 D+H Mechatronic AG, Ammersbek Rights to technical modifications reserved 100 % recycled paper 99.828.32 1.4/07/21...
