Adding or Replacing a SCSI Card

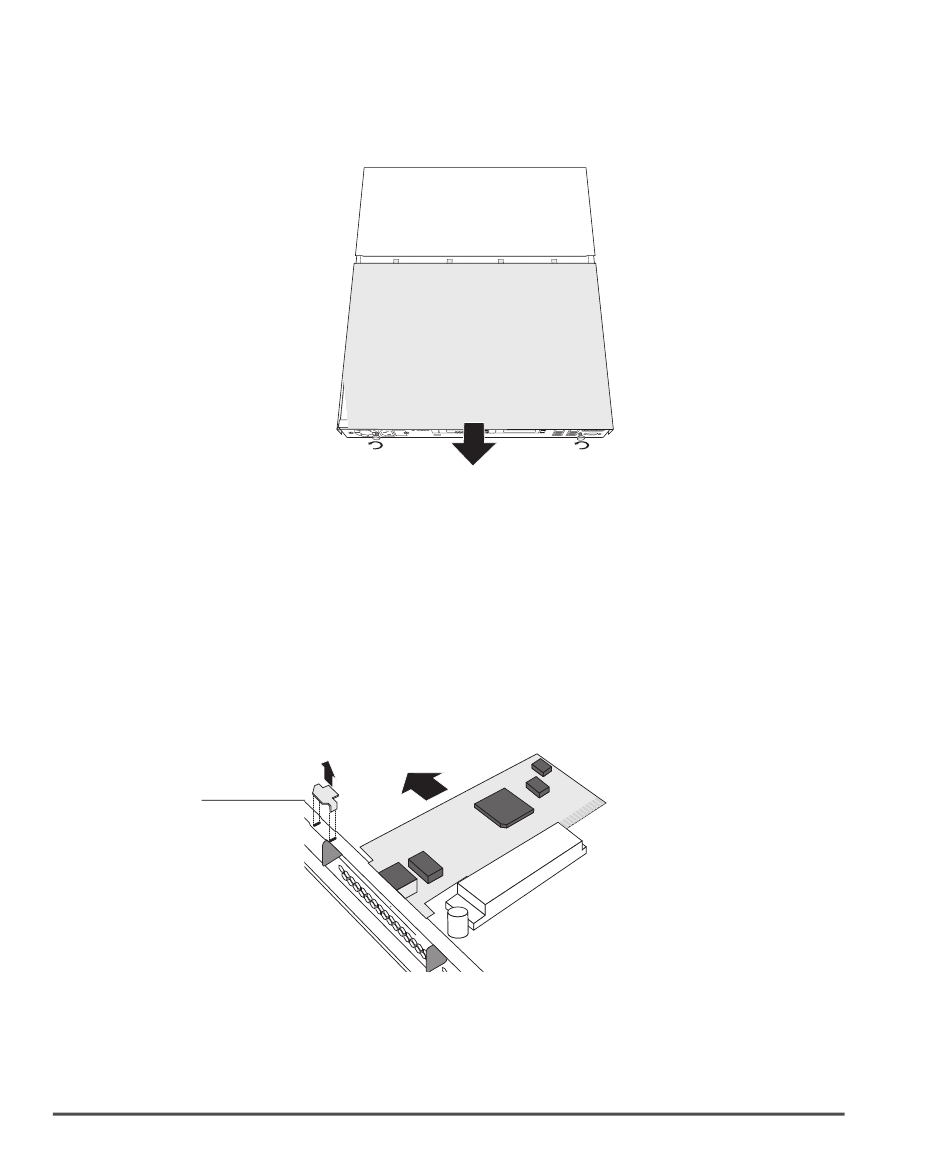

Removing the Top Cover

To release the cover, loosen the two thumbscrews on the rear of the server.
1
Slide the cover back from the rear of the server, lift it off, then set it aside.
2
Adding or Replacing a SCSI Card
Remove the PCI retention clip on the rear of the chassis.
1
Depending on whether you're adding or replacing a SCSI card:
2
If you are adding a SCSI card, remove the slot cover on the chassis where the
a
SCSI card will be located.
If you are replacing a SCSI card, remove the old card from the slot.
b
PCI retention
clip
Fit the new card into the PCI slot, snapping it securely in place.
3
Replace the PCI retention clip.
4
2
