Summary of Contents for Pitaka Air Essential

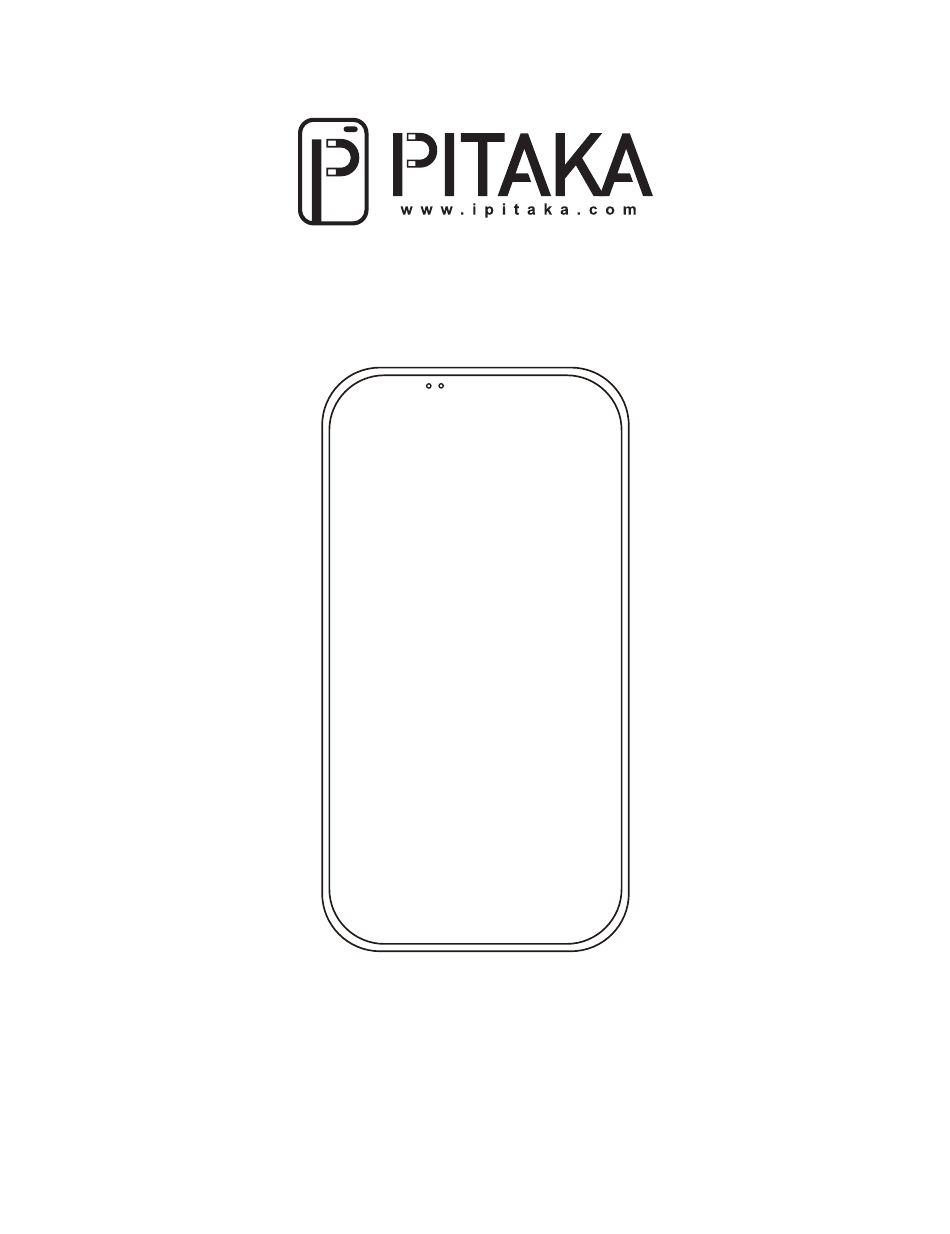

- Page 1 Air Essential User Manual...
-
Page 2: Table Of Contents
Contents Introduction Key Features Package Contains Compatible Devices Quick Guide LED Lighting Indicator Clean Tips Specification Warranty Exclusion IMPORTANT Customer Service FCC WARNING... -
Page 3: Introduction
Introduction Sincerely thanks for your generous support and selecting Air Essential. This product is a wireless charging device with stylish design, high quality, and extended durability. It nicely supports fast charging. And also it is a practical device that simplifies your charging. -
Page 4: Key Features
Key Features Compatible with all Qi-enabled devices. Engineered with premium aramid fiber. Comfortable to hold in hands. Safe and reliable. The Air Essential is designed to provide overvoltage protection, under-voltage protection, over-temperature protection, overcurrent protection, short-circuit protection and FOD. Optimized Fastest Charging. Supports both 10W fast charging for Samsung phones and 7.5W fast... -
Page 5: Package Contains
Package Includes 1. Air Essential *1 2. Charging Cable *1 3. Document Kit *1 Documents ① ② ③... -
Page 6: Compatible Devices
Compatible Devices IPhone 8/8 Plus/X/Xs/XR/Xs Max/11/11 pro/11pro Max Samsung S7 edge /S8 /Note8 /S9 /Note9 /S10 /S10+ /S10e/Note 10/Note10+ AirPods II All the other Qi-enabled devices Quick Guide Plug the adapter into the port of power socket. It is recommended to use an adapter that supports the PD or QC protocol and has a power of 18W or above. - Page 7 Connect the adapter to Air Essential with the Charging Cable. Connect the Charging Cable to the Air Essential’ s USB port and to the power adapter’ s USB port.
- Page 8 Place your device on the Air Essential. Place the device with Qi qualified in the middle of the charger. White LED will blink every second, which means wireless charging successfully. Power is transferred to your device via the Air Essential for wireless charging.
-
Page 11: Led Lighting Indicator
Essential, the LED2 indicator flashes as white. After it's fully charged both indicators will be always on. When the Air Essential is improperly used and detected FOD, the red indicator will be always on. When it's detected over-voltage or under-voltage,... -
Page 12: Clean Tips
when over-current and short-circuit, the LED1 will flash red once every 2 seconds; when overheat protection, theLED1 will flash red once every 0.5 second. Clean Tips Use the reusable dust-free cloth to remove the oil, fingerprints, smudges and dirt with just a swipe. -
Page 13: Specification
Specification Items Specification 89mm Width 172.40mm Length 12.40mm Thickness Input Current 2A, 9V Output Power 5W / 7.5W / 10W Transmission Distance ≤8mm Max Transfer Efficiency... - Page 14 89mm 12.4mm 172.4mm...
-
Page 15: Warranty
The PITAKA Air Essential is warranted for 12 months from the date of purchase. The Air Essential is warranted to be free defects in materials and function under normal use for the lifetime of the product. A defect is defined as an imperfection or flaw that is produced by a... -
Page 16: Exclusion
Exclusion Damages don t cover those resulting from abuse, not ‘ correctly maintained, alteration or misuse (including disassemble, drops), abnormal wear and tear, cosmetic damages that do not affect the functionality. -
Page 17: Important
Do not place it in fire or other excessively hot environments. 3. Do not keep and use the Air Essential in a humid environment. 4. Do not disassemble the Air Essential or attempt to modify it in any way. -
Page 18: Customer Service
8. If the Air Essential is intended by the purchaser to be used by a minor, purchasing adult agrees to provide detailed instructions and warnings to any minor prior to use, who agrees to indemnify manufacturer for any unintended use/misuse by a minor. -
Page 19: Fcc Warning
FCC WARNING This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. - Page 20 f requency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to r a d i o o r te l ev i s i o n re c e p t i o n , w h i c h c a n b e determined by turning the equipment off and on, the user is encouraged to try to correct the interference...
- Page 21 To maintain compliance with FCC s RF Exposure guidelines, this equipment should be installed and operated with minimum distance between 20cm the radiator your body: Use only the supplied antenna. FCC ID: 2ARI5-AE1001...
