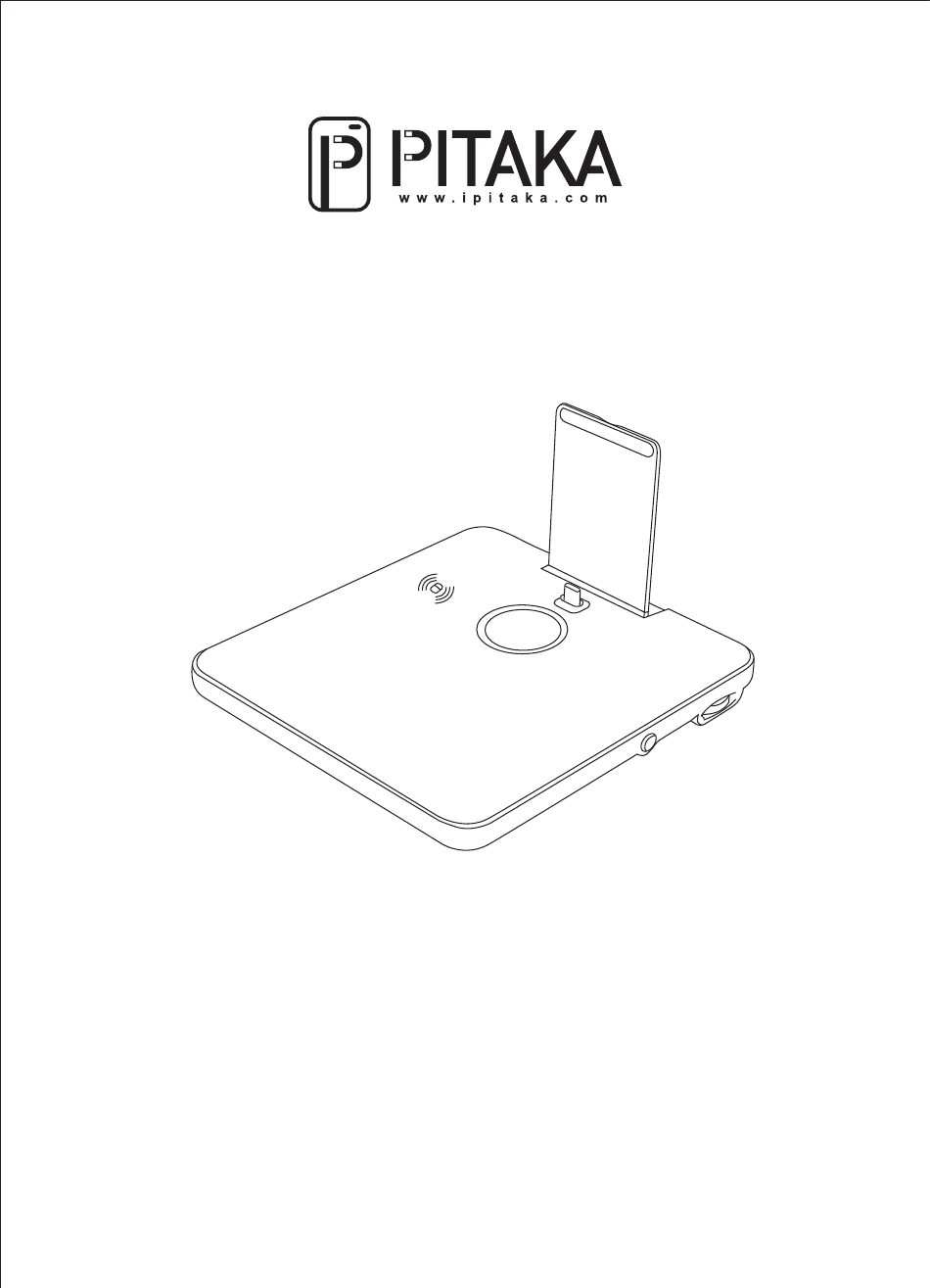

- Page 1 Air Quad User Manual...
-
Page 2: Table Of Contents
FCC WARNING Welcome & Intro Thank you for purchasing the PITAKA Air Quad. The Air Quad is a 4-in-1 wireless charger that is powered through DC connector. It can charge your phone, Apple Watch, iPad (Lightning or Type-C port) and AirPods at the same time. -
Page 3: Package Includes
Package Includes 1. Air Quad * 1 2. Adapter * 1 3. Document Kit *1 ① ② Documents ③... -
Page 4: Features
Features The Air Quad can charge 4 devices at the same time, including a phone, Apple Watch, AirPods wireless charging case, iPad(lighting/type-C connector); The adoption of both aramid fiber and zinc alloy assures the premium quality; Designed with over-temperature protection,... -
Page 5: Compatibility
Compatibility Apple Watch Wired Output Wireless Output Series Made for: iPhone 11 Pro Max, iPhone 11 Pro, iPhone 11, iPhone XS Max, iPhone XS, iPhone XR, iPhone X, iPhone 8 Plus, iPhone 8, iPhone 7 Plus, iPhone 7, Apple Watch 5, iPhone SE, iPhone 6s Plus, Apple Watch Series 4, iPhone 6s, iPhone 6 Plus,... -
Page 6: Spec
Spec Type-C Connector Items Specifications Input 15V/3.5A Output 5V/3A; 9V/2A; 12V/1.5A Apple watch Wireless Output 2.5W Earphone box Wireless Output QI Wireless Output 5W / 7.5W / 10W Short Circuit Protection Output shut down and auto restart Over Load protection Output shut down and auto restart Over Voltage Protection Output shut down and auto restart... - Page 7 Lightning Connector Items Specifications Input 15V/3.5A Output 5V / 2.4A Apple watch Wireless Output 2.5W Earphone box Wireless Output QI Wireless Output 5W / 7.5W / 10W Short Circuit Protection Output shut down and auto restart Over Load protection Output shut down and auto restart Over Voltage Protection Output shut down and auto restart Over Temperature Protection...
-
Page 8: Quick Guide
Quick Guide ①... - Page 9 ②...
- Page 10 Please insert and remove your device from the connector properly to avoid human damage.
- Page 12 ③...
- Page 13 ④ ⑤ Notice：Not available for Air Quad Lite.
-
Page 14: Led Light Indicator
LED Light Indicators LED Indicator Working Conditions The red and white indicators alternately Power on flash for about 2 seconds, then the red light is off, and the white light is on. Charge devices The white light flashes once a second. Overheat protection The red light flashes every 0.5 seconds. -
Page 15: Warranty
PITAKA Air Quad is warrantied for 12 months from the date of purchase. The Air Quad is warranted to be free defects in materials and function under normal use. A defect is defined as an imperfection or flaw that is... -
Page 16: Exclusions & Limitations
PITAKA shall not be liable for any special, incidental, indirect, punitive, or consequential damages of any type on any PITAKA product. In addition to and without limiting the generality of the foregoing disclaimers, the limited warranty... - Page 17 3. Do not disassemble the Air Quad or attempt to modify it in any way. 4. Do not attempt to power the Air Quad with any connection other than the Type-C connector. 5. Do not attempt to replace any part of the Air Quad.
-
Page 18: Customer Service
US and other countries. The ‘Qi’ symbol is a trademark of the Wireless Power Consortium. All associated logos and distinctive designs are the property of PITAKA and should be protected under design, trademark and other trade dress regulations. - Page 19 The manufacturer is not responsible for any damages to any device incurred through the use of this product. The manufacturer shall not, in any way, be liable to you or to any third party for any damages you or any third party may suffer as a result of use, intended or unintended, or misuse of this product in conjunction with any device or accessory other than the appropriate device for...
-
Page 20: Fcc Warning
FCC WARNING This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. - Page 21 If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna.
