Summary of Contents for Pitaka Air Tray

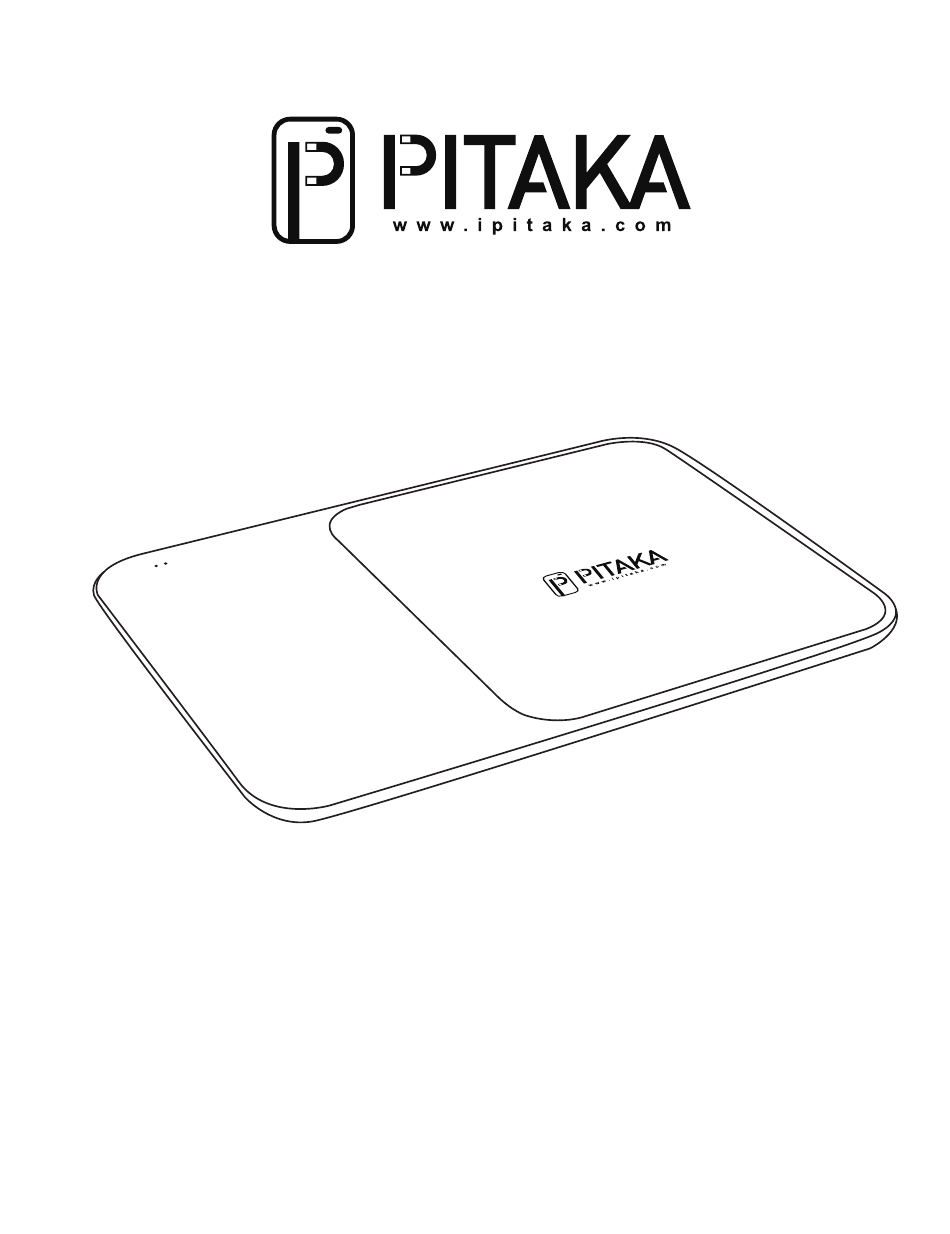

- Page 1 Air Tray User Manual...
-
Page 2: Table Of Contents
Contents Introduction Key Features Package Contains Compatible Devices Quick Guide LED Lighting Indicator Clean Tips Specs Warranty Exclusion & Limitation Important Customer Service FCC WARNING... -
Page 3: Key Features
Introduction Thank you for choosing Air Tray, this is a wireless charging device with high quality and elegant design. Besides, it can be used as a practical storage box to organize all your daily carrying necessities easily. Key Features Universal Compatibility: Compatible with all Qi-enabled devices. -
Page 4: Package Contains
Package Contains 1. Air Tray *1 2. Charging Cable *1 3. Charger *1 4. Document Kit *1 ① Documents ② ③ ④ Compatible Devices iPhone 8/8 Plus/X/Xs/XR/Xs Max Samsung S7 edge /S8 /Note8 /S9 /Note9 /S10 /S10+ /S10e AirPods II... -
Page 5: Quick Guide
Quick Guide Part I: Charging Your Phone on the Air Tray Plug the charger into the port of power socket. Please kindly note that the charger must be QC or PD ＊ certified. It is recommended to use the charger contained in the package or use an charger that supports the QC or PD with output that’s over 18W. - Page 6 Connect the charging cable to the charger, and then connect the charging cable to the Air Tray.
- Page 7 Place your device on left side of the Air Tray, then wireless charging will start on contact.
- Page 8 Part II: Store Your Essentials on the Air Tray This device can also be used as a catchall storage. Place your belongings like keys, wallet, etc., on the Air Tray.
-
Page 12: Led Lighting Indicator
2 seconds, then the red turns off and the white one turns on. When the phone is wirelessly charged by Air Tray, the LED2 indicator flashes as white. After it's fully charged both indicators will be always on. -
Page 13: Clean Tips
When the Air Tray is improperly used and detected FOD, the red indicator will be always on. When it's detected over-voltage or under-voltage, the LED1 will flash red once every second; when over-current and short-circuit, the LED1 will flash red once every 2 seconds;... -
Page 14: Specs
Specs Items Specification Width 171.70mm Length 238.00mm Thickness 12.60mm Type-C Input 2A, 9V Type-C Output 5W / 7.5W / 10W Transmission Distance ≤8mm Transfer Efficiency Output up to ≤75% Operating Temperature -10℃~30℃ Storage Temperature -20℃~60℃ Operating Frequency 110KHZ-205KHZ... -
Page 15: Warranty
Warranty The PITAKA Air Tray is warranted for 12 months from the date of purchase. The Air Tray is warranted to be free defects in materials and function under regular use. A defect is defined as an imperfection or flaw that is produced by a manufacturing error, including malfunction of wireless charging or surface defect, etc. -
Page 16: Exclusion & Limitation
fitness for a particular purpose, and especially you agree that PITAKA shall not be liable for any special incidental, indirect, punitive, or consequential damages of any type on any PITAKA product. -
Page 17: Important
Do not place it in fire or other excessively hot environments. 3. Do not keep and use the Air Tray in a humid environment. 4. Do not disassemble the Air Tray or attempt to modify it in any way. -
Page 18: Customer Service
8. If the Air Tray is intended by the purchaser to be used by a minor, purchasing adult agrees to provide detailed instructions and warnings to any minor prior to use, who agrees to indemnify manufacturer for any unintended use/misuse by a minor. -
Page 19: Fcc Warning
FCC WARNING This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. - Page 20 particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna.
