Summary of Contents for Pitaka Air Quad Lite

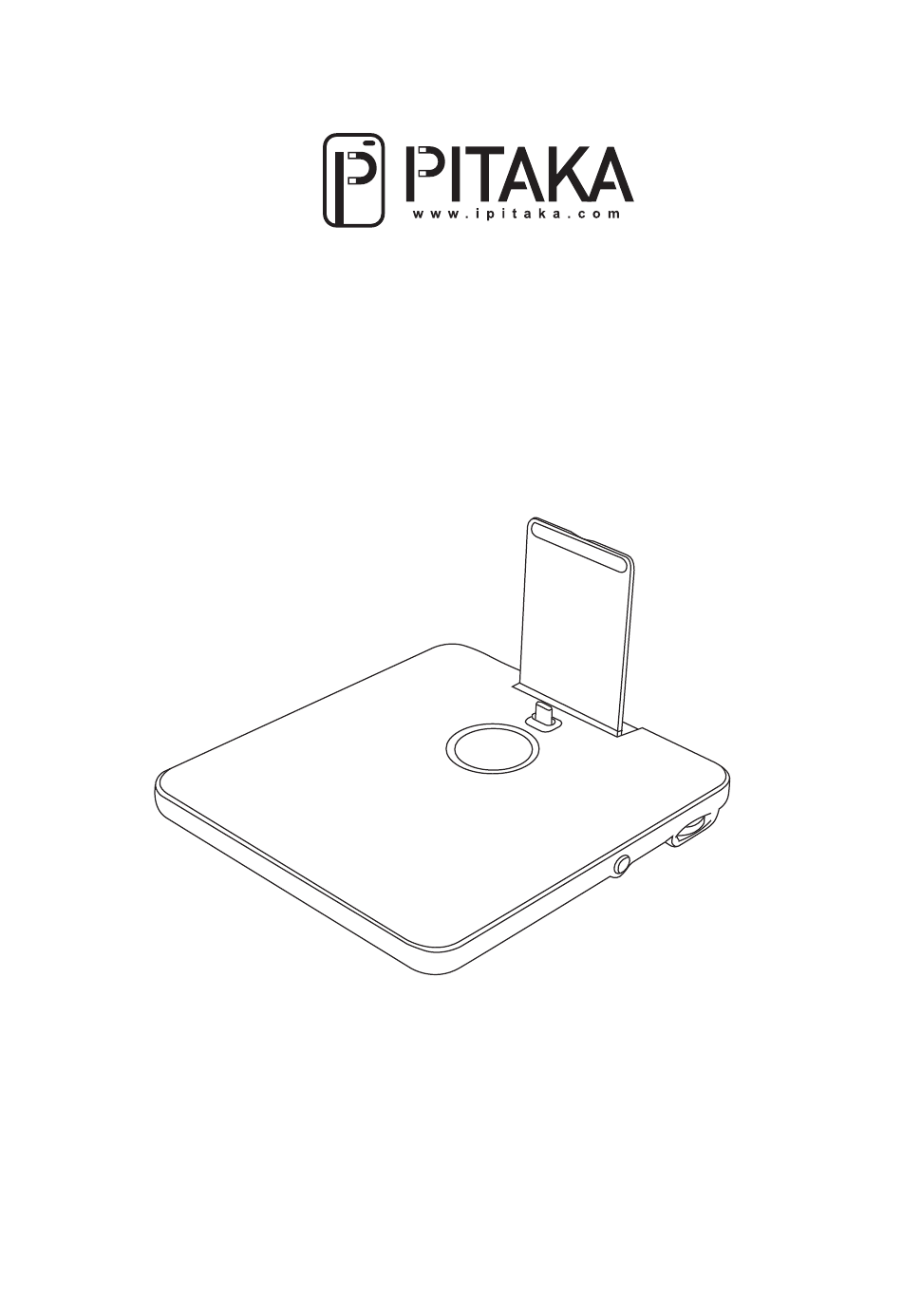

- Page 1 Air Quad Lite User Manual...
-
Page 2: Table Of Contents
FCC WARNING Welcome & Intro Thank you for purchasing the PITAKA Air Quad Lite. The Air Quad Lite is a 3-in-1 wireless charger that is powered through DC connector. It can charge phone, Apple Watch, iPad (Lightning or Type-C port) -
Page 3: Package Includes
Package Includes 1. Air Quad Lite * 1 2. Adapter * 1 3. Document Kit *1 ① ② ③... -
Page 4: Compatibility
Compatibility phone AirPods iPad Apple Watch Deck Area Terminal Area Made for: iPad Pro 10.5-inch, Apple Watch Series 5, AirPodsⅠ， iPhone XS Max, AirPodsⅡ iPad Pro 12.9-inch Apple Watch Series 4, iPhone XS, AirPods Pro (2nd Generation), Apple Watch Series 3, iPhone XR, iPad Pro 9.7-inch, Apple Watch Series 2,... -
Page 5: Spec
Spec Lightning Connector Items Specifications Input Voltage 3.5A Input Current 5/7.5/9V Output Voltage 5V/9A Lightning Apple watch Wireless （C94） Output max. Current 3A/2A Output min. Current Line Regulation ± 1% Output Voltage Toterance ± 5% Output shut down and auto restart Short Circuit Protection Output shut down and auto restart Over Load Protection... - Page 6 Type-C Connector Items Specifications Input Voltage 3.5A Input Current 5/7.5/9V Output Voltage Apple TYPE C watch Wireless （QC3.0） Output max. Current 1.5A Output min. Current Line Regulation ± 1% Output Voltage Toterance ± 5% Output shut down and auto restart Short Circuit Protection Output shut down and auto restart Over Load Protection...
-
Page 7: Quick Guide
Quick Guide ①... - Page 8 ②...
- Page 9 Please insert and remove your device from the connector properly to avoid human damage.
- Page 11 ③...
- Page 12 ④...
-
Page 13: Led Light Indicator
LED Light Indicators Working Conditions LED Indicator The red and white indicators alternately Power on flash for about 2 seconds, then the red light is off, and the white light is on. The white light flashes once a second. Charge devices Overheat protection The red light flashes every 0.5 second. -
Page 14: Warranty
PITAKA Air Quad Lite is warrantied for 12 months from the date of purchase. The Air Quad Lite is warranted to be free defects in materials and function under normal use. A defect is defined as an imperfection or flaw that is... -
Page 15: Exclusions & Limitations
2. Do not keep the Air Quad Lite in a high-tempera- ture environment, including heat caused by intense sunlight or other forms of heat. Do not place it in fire... - Page 16 3. Do not disassemble the Air Quad Lite or attempt to modify it in any way. 4. Do not attempt to power the Air Quad Lite with any connection other than the Type-C connector. 5. Do not attempt to replace any part of the Air Quad Lite.
-
Page 17: Customer Service
US and other countries. The ‘Qi’ symbol is a trademark of the Wireless Power Consortium. All associated logos and distinctive designs are the property of PITAKA and should be protected under design, trademark and other trade dress regulations. - Page 18 The manufacturer is not responsible for any damages to any device incurred through the use of this product. The manufacturer shall not, in any way, be liable to you or to any third party for any damages you or any third party may suffer as a result of use, intended or unintended, or misuse of this product in conjunction with any device or accessory other than the appropriate device for...
-
Page 19: Fcc Warning
FCC WARNING This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. - Page 20 If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna.
