Summary of Contents for Pitaka MagEZ Bar

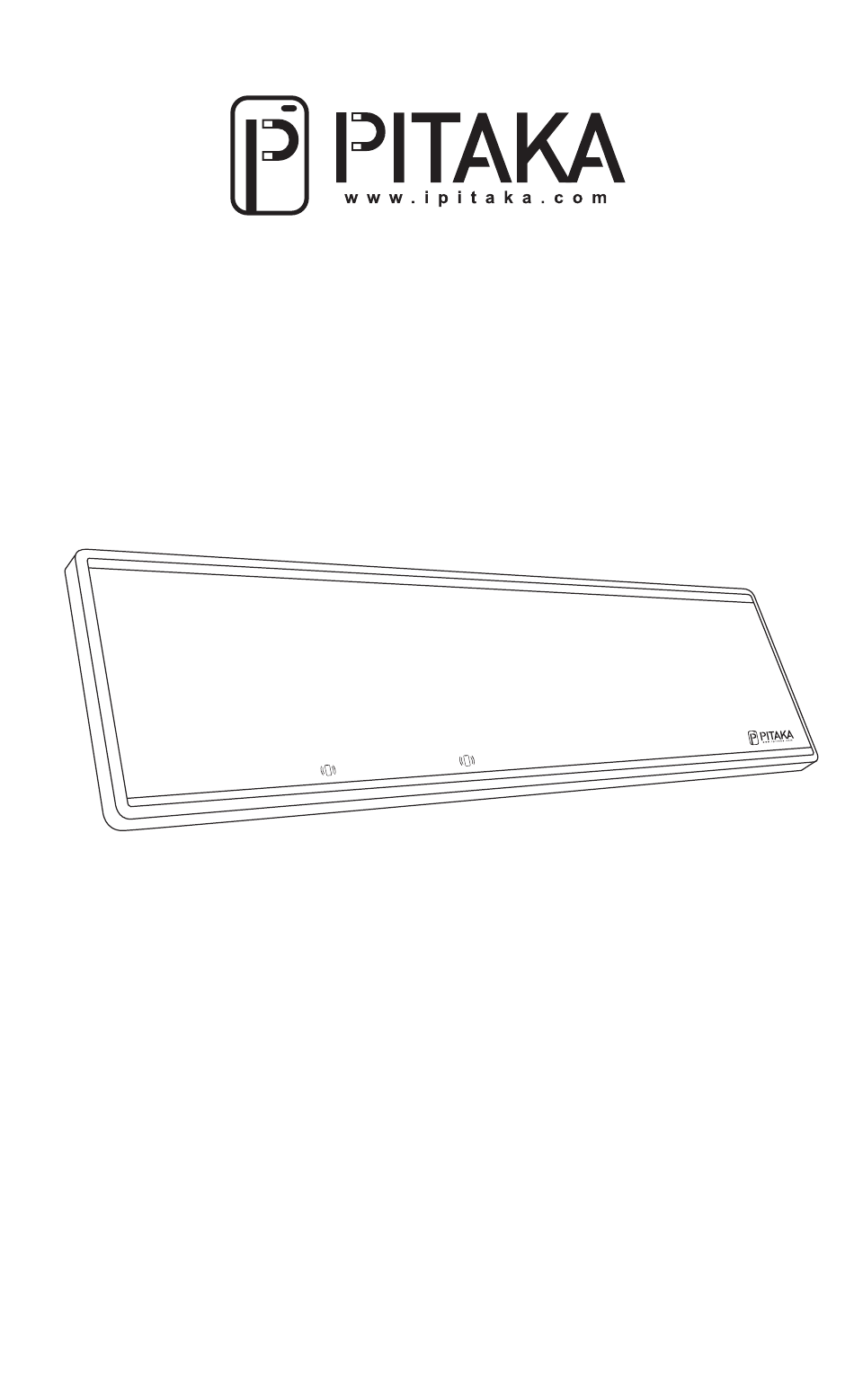

- Page 1 MagEZ Bar User Manual...
-
Page 2: Table Of Contents
Contents Compatibility Notice Package Contains Installation Guide Quick Guide Specs Warranty Exclusion Important Customer Support FCC Warning... -
Page 3: Compatibility Notice
MagCase (Pro) for iPhone 8/8 Plus/X/Xs/XR/Xs Max and Samsung Galaxy S10e/S10/S10+/S9/S9+/S8/S8+/S7 edge. Your phone cannot be attached on the MagEZ Bar when you use an other case or stick metal plates on your phone. Do not use the MagEZ Bar to charge your wireless charging devices that are not Qi-compatible. -
Page 4: Installation Guide
Installation Guide 1. Locate the wall mount on a proper place and make marks on the wall through four oval holes on the wall mount. 2. Drill the holes on the marks and hammer the expansion bolts in the holes. - Page 5 3. Place the wall mount on the wall, then tighten the screws firmly. *Scan QR code to watch the installation video. 4. Slide MagEZ Bar into the wall mount from right to left until you hear a click.
- Page 6 1. If you are a MagEZ Case user, put your phone into the MagEZ Case so that it is ready to use. 2. If you are not using a MagEZ Case, follow below steps to affix the supplied metal plate before using the MagEZ Bar to charge your phone. ①...
-
Page 7: Quick Guide
Quick Guide ① ②... - Page 8 ③ ④...
-
Page 9: Specs
Specs Item Specification Rated Input Voltage 5V~9V Rated Input Current Rated Output Voltage DC 5V/1A Rated Output voltage DC 9V/1.1A Transmission Distance ≤ 8mm Transfer Efficiency 75% Max Operating Temperature -10℃~30℃ Storage Temperature -20℃~60℃ Working Frequency 110KHz-205KHz 11mm 382mm 107mm... -
Page 10: Warranty
Warranty The PITAKA MagEZ Bar is warranted for 12 months from the date of purchase. The MagEZ Bar is warranted to be free defects in materials and function under regular use for the lifetime of the product. A defect is defined as an imperfection or flaw that is produced by a manufacturing error,... -
Page 11: Important
6. Please never connect power supply to your MagEZ Bar with the both sides Type C connectors at the same time. Improper operation resulting in the malfunction of the MagEZ Bar is the sole responsibility of the purchaser. Customer Support Phone：+852 9202 6223... -
Page 12: Fcc Warning
FCC WARNING This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, (2) this device must accept any interference received, including interference that may cause undesired operation. - Page 13 -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet the general RF exposure requirement.
