The system
The load cell system includes four 2,500 lbs (1,136 kg) load cells with a total capacity of 10,000 lbs (4,500 kg). As an
option, Tru-Test can supply brackets to mount the cells under large cattle chutes (crushes).
Inside the junction box, the cables from each cell are joined to a separate single cable connected to the weigh scale
indicator.
Load cells

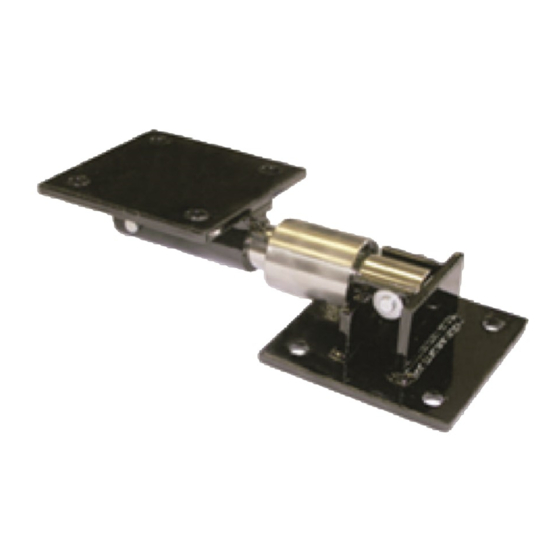

XHD2 Load Cell System
4 x load cells with mounting brackets
Junction box
Junction box lid
Mounting holes (x4)
Load cell cables

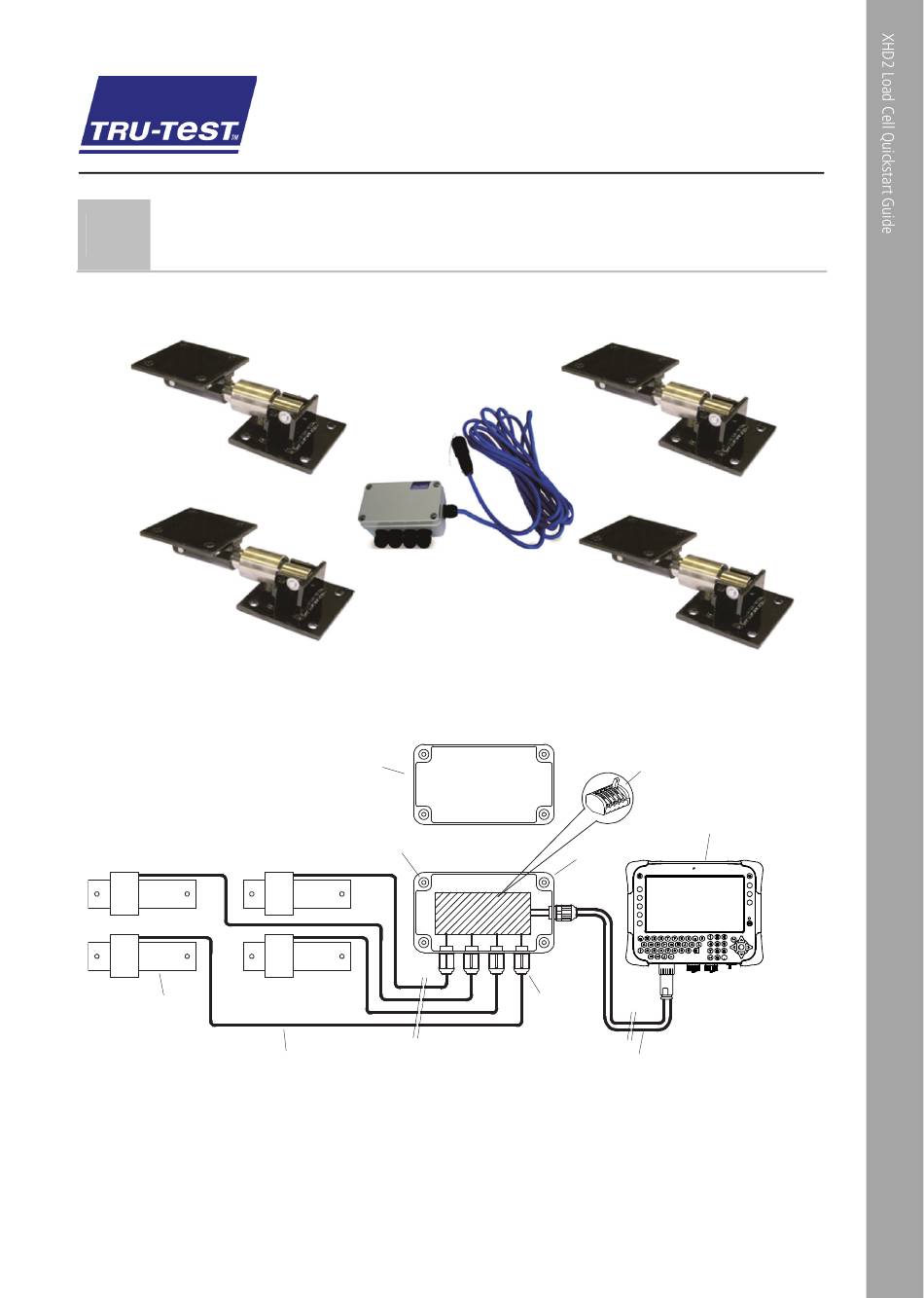

QUICKSTART GUIDE
Conductor
terminal
blocks (x4)
Indicator
(sold separately)
Junction box
Cable
glands
Indicator cable
1
