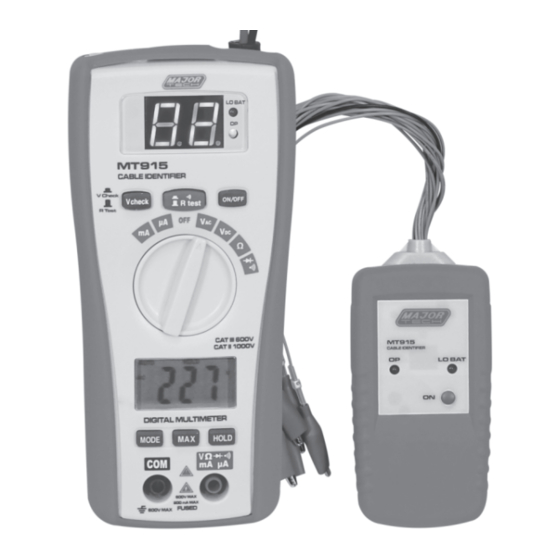

- Page 1 MT915 2-in-1 Cable Identifier & DMM...
- Page 2 INTRODUCTION Thank you for purchase of the 2-in-1 Cable Identifier & DMM. The MT915 is a transmitter/receiver device which enables one person to instantly match up ends of individual cores at either end of a multi-core cable. With the remote kit it can test cables installed far distances away either on wall plate or patch panel.
- Page 3 Receiver Description 7. Crocodile clips with cables (CH1 & reference cable) 8. LED display (Blue 2 bit) 9. Low battery indicator 10. Operation indicator 11. Tester switch for receiver test or test cable of put through and cable disconnection & identify 12.
- Page 4 2. At the other end of the cable, connect the “COM terminal” (black crocodile) of the receiver. When the “input terminal” (red crocodile) of the receiver is successively touched on the cores of the cable under test, the relevant number indicating the core is indicated on the display of the receiver (1-16).
- Page 5 Digital Multimeter test AC/DC Voltage Measurements 1. Insert the black test lead into the negative COM terminal and the red test lead into the positive V terminal. 2. Set the function switch to VAC or VDC position. 3. Connect the test leads in parallel to the circuit under test.
- Page 6 Resistance Measurement 1. Set the function switch to the Ω position. 2. Insert the black test lead into the negative COM terminal and the red test lead into the positive Ω terminal. 3. Touch the test probe tips across the circuit or part under test.
- Page 7 2. Press the “DATA HOLD” button to return to normal operation. Auto Power Off The auto off feature will turn the meter off after 15 minutes. Replacing The Fuses 1. Disconnect the test leads from the meter. 2. Remove the protective rubber holster. 3.
- Page 8 Dimensions (mm) 162(L) x 75(W) x 44(D) (DMM) 130(L) x 69(W) x 32(D) (Transmitter) Weight 308g MAJOR TECH (PTY) LTD T9 Industrial Village, Sam Green Road, Telephone: +27 11 8 2 7 5500 National Contact Number: 08 61 62 5678 Tunney Ext.
