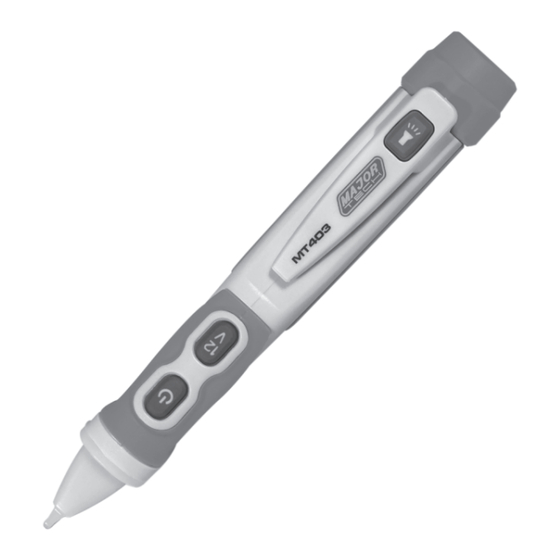

- Page 1 INSTRUCTION MANUAL MT403 NON-CONTACT AC VOLTAGE DETECTOR...
- Page 3 Warnings ! Read, understand and follow Safety Rules and Instructions in the manual before using this tester. ! The tester's safety features may not protect the user if not used in accordance with the manufacturer's instructions. ! Check on a known live source within the rated AC voltage range of the tester before use to ensure it is in working order.
- Page 4 4. General Specifications Detection Voltage Range 100V AC to 1000V AC, 12V to 1000V AC Frequency Range 50/60Hz Batteries 2 x AAA Operating Temperature 0°C to 50°C (32°F to 122°F) Storage Temperature -10°C to 60°C (-14°F to 140°F) Humidity 80% max Altitude 2000 meters Pollution Degree...
- Page 5 Low Voltage Mode (12 to 1 000V AC): Hold down the 12V button. The green LED will change to yellow to indicate the tester is in the low voltage mode. While pressing the 12V button, place the tip of the tester near an AC voltage. When AC voltage is detected, the yellow LED will turn off, the red LED will flash and the beeper will beep.
- Page 6 6. Changing Batteries 1. Carefully unscrew battery cap at the rear (flashlight end) of the tester. 2. Replace batteries with two AAA 1.5V batteries. Observe polarity. 3. Carefully align cover with tester as shown below. 4. Screw cover onto tester until it feels tight. Do not use excessive force. 5.
- Page 8 MAJOR TECH (PTY) LTD South Africa Australia www.major-tech.com www.majortech.com.au sales@major-tech.com info@majortech.com.au...
