IT Concepts iRis DVR X Operation Manual page 10

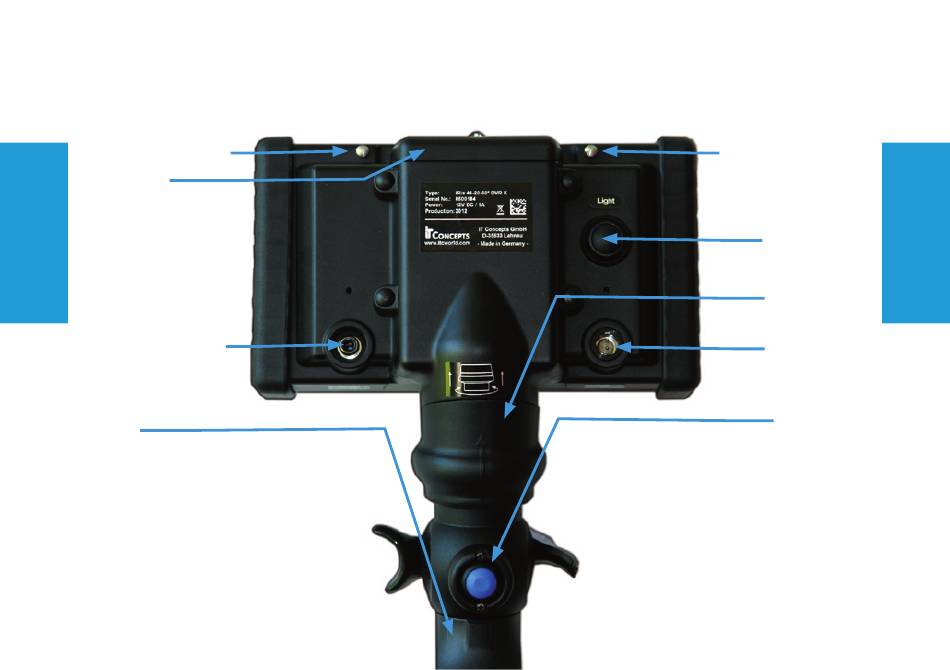

Presentation
Pins fpr sunshield
Battery
Compartment
Cinch OUT,
external display, etc.
Handle
The region to be inspected has
to be that large that movements
with the diameter and length of the
articulating part are possible and
don't result in seizing. The shea-
thing of the insertion tube is made
of tungsten netting and particular
increases the durability of the fl exible
probe. The inspection area can be
illuminated with a Light Source
(4 mm-Version
Source / 6 mm-Version LED on the
Tip).
10 10
Pins fpr sunshield
ON/OFF LED
Light Source
Swivel Lock
Mechanism
12V DC Plug
Capture Button
integrated Light
