  • Page 4: Foreword

    Foreword We thank you for purchasing our product and welcome you to IT Concepts! Diverse inspection objects, materials and lighting conditions often make it difficult to obtain sharp and high-quality images. Our product is easy to adjust to your application to obtain optimal inspection images even in difficult situations.

  • Page 5: Warnings And Precautions

    Warnings and Precautions Symbols and terms Danger Describes a dangerous situation which can lead to serious injury or even death if the operating instructions are not followed. Caution Describes a potentially hazardous situation which, if not avoided, may result in minor or moderate injury. "Caution"...
  • Page 6 Caution Do not open the housing. There is a risk of electric shock from live parts. Do not use the system in running or electrically live objects. There is a risk of electric shock to the user. Stop using the appliance immediately if smoke rises from the appliance, it smells abnormal, unusual noises are produced or other unusual operating phenomena occur.
  • Page 7 Caution Avoid damage, shocks and dropping the device. Do not use the probe if it may come into contact with liquids other than fresh and saltwater, diesel oil or machine oil. Do not continue to use the device if there is an unusual behavior of the angulation.

  • Page 8: Warnings On Handling The Battery

    Caution Do not continue to use the device when the battery indicator is flashing. Switch off the device and use an external power supply. The device may power down when the battery level is low and unsaved data may be lost. Do not exert excessive force when removing the system from the case.
  • Page 9 Danger Do not puncture the battery or hit it with any object. Do not use the battery in places where it is exposed to extreme heat or direct sunlight. If battery acid should get in your eye when the battery is damaged, it can cause blindness.
  • Page 10 Avoid touching the battery contacts with wet hands. Should the device not be used for a longer period of time, remove the battery from the device and store it in a dry place. Notice Charge the battery fully before first use or after a long period of storage. If the battery is used outside the recommended operating temperature, this may result in reduced performance and operating time.

  • Page 11: Notes On Disposal And Recycling

    Notes on disposal and recycling Our system is an electronic device and must not be disposed of in household waste. According to the European Directive 2002/96/EC on electrical, electronic and waste equipment and its implementation in national law, power tools that are no longer in use must be collected separately and recycled in an environmentally friendly manner.

  • Page 12: Introduction

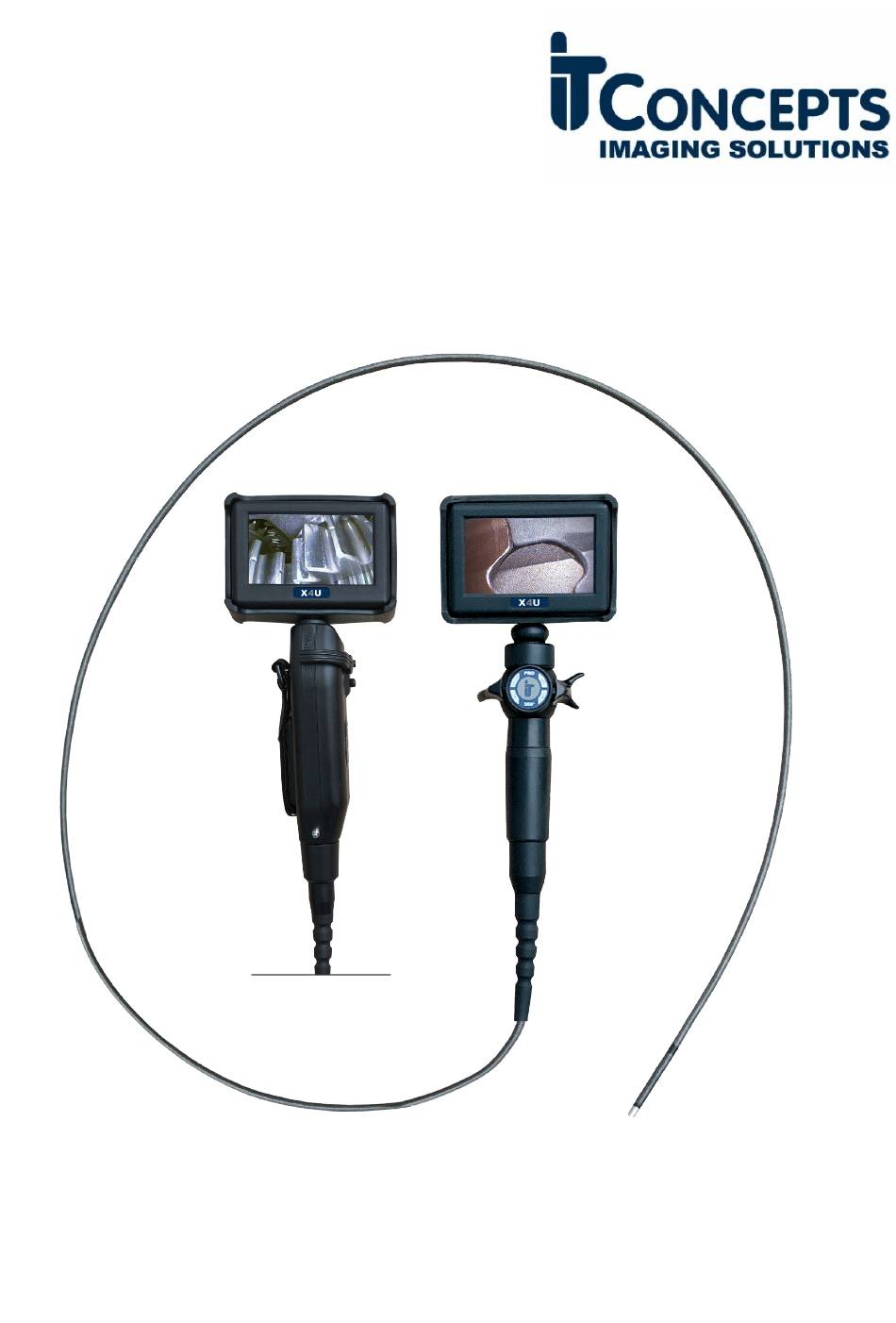

    Introduction 1) Documentation unit 7) Power button on/off with LED 2) 4.3” Touch screen 8) Status LED 3) Articulation 2-way (blue = loading / green = charging completed) 4) Articulation 4-way 9) Magnetic charging port 5V DC / 1A (5W) 5) Bend protection 10) USB connector / no charging 6) Sun shield...

  • Page 13: Preparation Of The Power Supply

    Preparation of the power supply Charging the battery ● Caution Only the supplied charging cable may be used to charge the battery. ● Caution Do not use USB port for charging ● Caution Always unplug the power cord by the plug. Pulling on the power cord may cause damage and malfunction.

  • Page 14: Switching On The System

    Switching on the system To turn on the system, press the Power button on backside. The system will start and show the home screen. The LED lights up blue when the device is switched on To switch off the system after use, use the button again. ●...

  • Page 15: Checking The Deflection Unit And Control

    Checking the deflection unit and control. First, lay the probe out straight. To check the mobility of the deflection unit, first move the control lever U/D from one maximum position to the other so that the deflection unit moves in a vertical plane. Then set the control lever to the neutral position again.
  • Page 16 Display Is there any dirt, e.g. foreign bodies such as dirt or liquid, on the system display? If so, please observe the cleaning instructions under "Cleaning and Care" -> "Display". Are there any damages, e.g. cracks, deformations or other conspicuous features? If so, this component must be repaired or replaced.
  • Page 17 Distal end Is there any contamination, e.g. foreign bodies such as dirt or liquid, on the probe or the sheathing? If so, please observe the cleaning instructions under "Cleaning and Care" -> "Distal end". Are there any damages, e.g. cracks, deformations or other conspicuous features? If so, this component must be repaired or replaced.

  • Page 18: System Operation

    System operation Rotating the display unit Control the deflection of the endoscope The deflection unit can be moved in two planes (see figure) using the control levers. The figure shows the operating levers in the "neutral" starting position. In this position, the angular deflection unit is straight.

  • Page 19: Passing Bends

    Passing bends Expansion and bending of the object to be examined must be large enough to allow the movement of the bending unit and the probe head. Prior to inspection, the general feasibility shall be checked visually or by means of a design drawing.

  • Page 20: Retracting The Endoscope

    Figure D After passing the bend the angular deflection unit is returned to the neutral position using the operating levers. Retracting the endoscope When retracting the endoscope, the deflection unit must first be straightened, i.e. the control levers must be positioned in the neutral position. By observing the display and moving the operating levers accordingly, an even distance between the probe head and the walls of the room must be maintained during the return process.

  • Page 21: Operating System

    Operating System Video capture Settings Image capture Settings: Go back Zoom Image gallery Move left Video gallery White balance Set date & time Select Brightness of the LED Move data to USB* Move right * Only visible if USB storage is inserted. otherwise USB icon is grey colored Page | 20...
  • Page 22 Zoom settings: Standard Zoom/View 1 x Zoom Zoom in Zoom out 2 x Zoom Zoom out Image gallery: Previous image Back to home screen Next image By touching the screen one's, operation panel will remove. To show operation panel touch again Page | 21...
  • Page 23 Video gallery: Tap on screen play/pause video. Video playing Previous video Back to home screen Next video White balance: Back to home screen White balance (page 13) Set time & date: Tap on screen to advance to next value. Set date Set time Set timezone Page | 22...
  • Page 24 Setting light: LED off 2nd brightness level brightness level Brighter Back to home screen Darker Move data to USB: Back to home screen Caution By moving data to USB the storage at the device will be completely deleted Page | 23...

  • Page 25: Cleaning And Care

    Cleaning and care Cleaning the probe If the probe is dirty, use a cloth moistened with clean water or a soft sponge and then wipe it with another dry and clean cloth. ● Caution Dirt on the probe must be removed immediately after use. If the contamination remains for a longer period of time, this can lead to corrosion of the tungsten braiding.

  • Page 26: Cleaning The Lens

    ● Caution Make sure that no dirt or moisture remains on the distal end. This can lead to disturbed illumination, increased heat development and damage to the lens or distal end. Dirt on the lens thread If possible, use a small brush or a cotton swab to remove existing dirt or liquid residues.

  • Page 27: Cleaning The Display

    Cleaning the display If the display is dirty, e.g. by fingerprints, use a cloth moistened with clean water and then wipe it with another dry and clean cloth. ● Caution Do not use solutions containing alcohol such as ethanol or isopropyl alcohol solutions, these are too aggressive and can damage the display.

  • Page 28: Battery

    Battery Battery life depends on the ambient temperature and the frequency of use. However, if the battery life is unusually short, please contact us for information. Storing the system Turn off the system or disconnect the power cord. Align the deflection unit so that it is straight.

  • Page 29: Standard Scope Of Delivery

    Standard scope of delivery 1) Device 2) Magnetic charging cable USB charger Page | 28...
  • Page 30 Do not open the system by yourself! Repairs may only be carried out by IT Concepts GmbH. Many thanks! Contact Tel.: +49 (0) 6441 679299 – 0 Fax: +49 (0) 6441 679299 – 99 IT Concepts GmbH Gewerbestr. 17 D- 35633 Lahnau www.itcworld.com service@itcworld.com Page | 29...
  • Page 31 Technical data X2U 2-way X4U 4-way Control unit Display size: 4.3“ Resolution: 800x480 Pixel Power supply: 5 V DC smart power function, chargeable with a powerbank Working time: 6 hours / expandable up to more than 6 hours (smart power)
  • Page 32 Revision 0.0 IT Concepts GmbH | 35633 Lahnau | Tel. +49 6441 679 299 0 | Gewerbestr. 17 Fax +49 6441 679 299 99 info@itcworld.com | www.itcworld.com Page | 31...
