Sonoma 61SRR4503BIS Assembly Instructions Manual

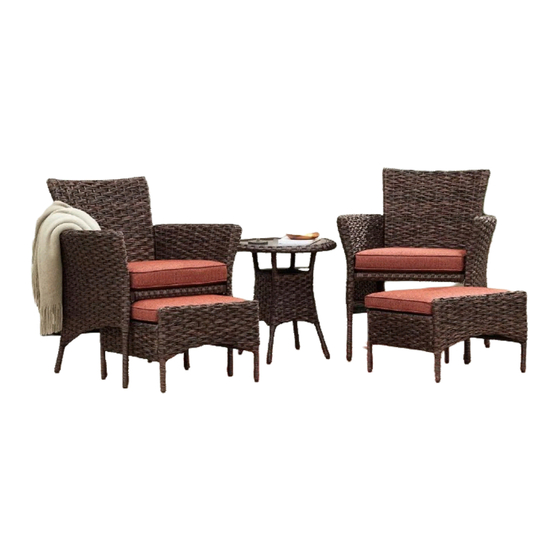

Biscay 5pc chat set chair
Hide thumbs
1
2
3
4
5
6

Advertisement

Table of Contents

SONOMA BISCAY 5PC CHAT SET CHAIR ASSEMBLY INSTRUCTIONS
FIGURE
PART LIST
A
B
C
D
E
F
G
H
I
SAVE THESE INSTRUCTIONS
STYLE #: 61SRR4503BIS
ASSEMBLE ON A FLAT, PROTECTED SURFACE
QUANTITY
1 PC
1 PC
1 PC
1 PC
6 PCS + 1 PC
4 PCS + 1 PC
10 PCS + 1 PC
1 PC
1 PC
DESCRIPTION
LEFT SIDE
RIGHT SIDE
SEAT
BACK
LONG BOLT
(M6*40MM)
SHORT BOLT
(M6*20MM)
FLAT WASHER
ALLEN WRENCH
CUSHION
Page 1/6

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 61SRR4503BIS and is the answer not in the manual?

Questions and answers

Related Manuals for Sonoma 61SRR4503BIS

Summary of Contents for Sonoma 61SRR4503BIS

  • Page 1 SAVE THESE INSTRUCTIONS SONOMA BISCAY 5PC CHAT SET CHAIR ASSEMBLY INSTRUCTIONS STYLE #: 61SRR4503BIS ASSEMBLE ON A FLAT, PROTECTED SURFACE FIGURE DESCRIPTION PART LIST QUANTITY 1 PC LEFT SIDE 1 PC RIGHT SIDE 1 PC SEAT 1 PC BACK LONG BOLT...
  • Page 2 ASSEMBLY INSTRUCTIONS (CONTINUED) STYLE #: 61SRR4503BIS STEP 1 A. ATTACH BACK (D) TO LEFT SIDE (A) AND RIGHT SIDE (B) WITH LONG BOLTS (E) AND FLAT WASHERS (G) USING ALLEN WRENCH (H). DO NOT TIGHTEN COMPLETELY. STEP 2 A. ROTATE PREASSEMBLED UNIT UPSIDE DOWN.
  • Page 3 SAVE THESE INSTRUCTIONS SONOMA BISCAY 5PC CHAT SET OTTOMAN ASSEMBLY INSTRUCTIONS STYLE #: 61SRR4503BIS ASSEMBLE ON A FLAT, PROTECTED SURFACE FIGURE DESCRIPTION PART LIST QUANTITY 1 PC FRONT LEG 1 PC BACK LEG 1 PC LONG BOLT 2 PCS + 1 PC...
  • Page 4 ASSEMBLY INSTRUCTIONS (CONTINUED) STYLE #: 61SRR4503BIS STEP 1 A. PLACE TOP (C) UPSIDE DOWN ON A FLAT, PROTECTED SURFACE. B. ATTACH TOP (C) TO FRONT LEG (A) AND BACK LEG (B) WITH SHORT BOLTS (E) AND FLAT WASHERS (F) USING ALLEN WRENCH (G). DO NOT TIGHTEN COMPLETELY.
  • Page 5 SAVE THESE INSTRUCTIONS SONOMA BISCAY 5PC CHAT SET TABLE ASSEMBLY INSTRUCTIONS STYLE #: 61SRR4503BIS ASSEMBLE ON A FLAT, PROTECTED SURFACE FIGURE DESCRIPTION PART LIST QUANTITY 1 PC TOP FRAME 2 PCS 2 PCS LEG CONNECTOR 1 PC GLASS TOP BOLT...
  • Page 6 ASSEMBLY INSTRUCTIONS (CONTINUED) STYLE #: 61SRR4503BIS STEP 1 A. PLACE TOP FRAME (A) UPSIDE DOWN ON A FLAT, PROTECTED SURFACE. B. ATTACH LEGS (B) TO TOP FRAME (A) WITH BOLTS (E) AND FLAT WASHERS (F) USING ALLEN WRENCH (G). DO NOT TIGHTEN COMPLETELY.
