ColorKey CKU-7060 User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
SKU: CKU-7060
USER MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the CKU-7060 and is the answer not in the manual?

Questions and answers

Related Manuals for ColorKey CKU-7060

Summary of Contents for ColorKey CKU-7060

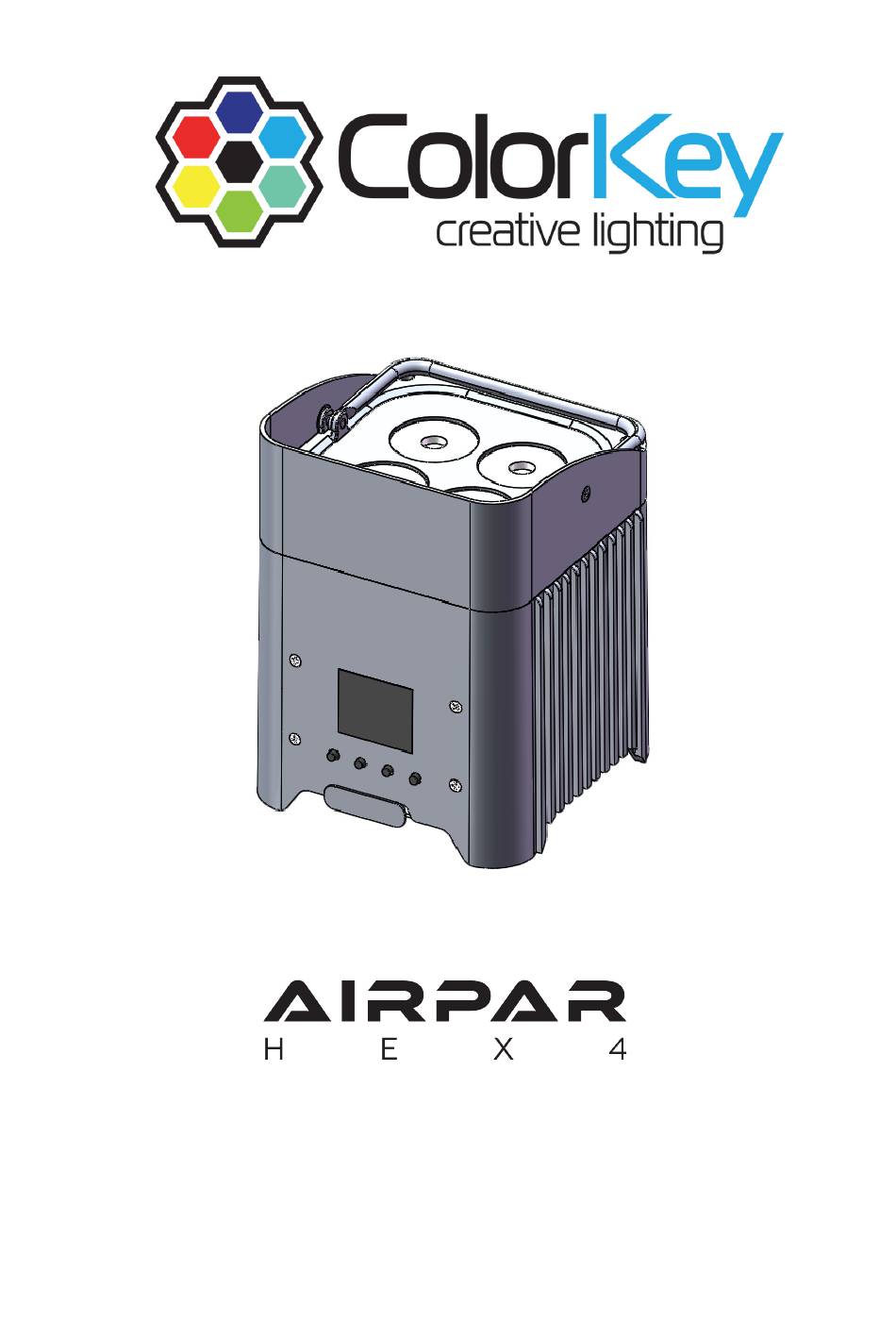

  • Page 1 SKU: CKU-7060 USER MANUAL...

  • Page 2: Table Of Contents

    Table of Contents INTRODUCTION ....................ERROR! BOOKMARK NOT DEFINED. SAFETY ......................... ERROR! BOOKMARK NOT DEFINED. BATTERY LIFE ..................... ERROR! BOOKMARK NOT DEFINED. DISPLAY OPERATION ............................3 MENU GUIDE ................................7 INFRARED REMOTE CONTROL (IRC) ......................... 8 DMX VALUES ................................. 10 DMX CONNECTIVITY ...................
  • Page 3 • Do not operate this fixture if the power cord has been damaged. Turn off fixture and replace with a power cord of similar rating. Service & Support Your ColorKey product includes a 2-year warranty. For technical support or to register your https://www.colorkeyled.com/support/ product, please visit...
  • Page 4 Introduction Thank you for purchasing the ColorKey AirPar HEX 4! The AirPar is part of the ColorKey Air Series, an ecosystem of battery-powered, wireless DMX lighting fixtures, with a wireless DMX hub for greater control and connectivity options. DOWN ENTER...
  • Page 5 Power & Charging The AirPar HEX 4 features a rechargeable lithium-ion battery for wire free use. The battery can power the light for up to 20 hours from a full charge. An adaptive power supply with an input voltage range of 100 to 240 VAC 50/60Hz is also included.

  • Page 6: Battery Life

    Display Operation Working Temperature Battery Life Wireless DMX Group ID DMX Signal Connected ESC: Navigate to the previous higher-level menu item. Down: Scrolls through the menu items and numbers in descending order. Scrolls through the menu items and numbers in ascending order Enter: Is used to select and confirm/store the current menu selection...

  • Page 7: Menu Guide

    Menu Guide Address Set DMX Address (001 to 512) Channel Set DMX Channel Mode (3, 6, 8, 11) Slave Set light to Slave or Master Auto Activate Auto mode and adjust speed (1-15) Fade Activate Fade mode and adjust speed (1-15) Color Set light to Color mode and scroll through preset colors (1-15) Sound...

  • Page 8: Infrared Remote Control (Irc)

    Infrared Remote (IR) Control To use the IR remote, simply point the remote at the IR receiver on the lighting fixture. The IR receiver on the AirPar HEX 4 is located top panel with the LED lenses. Black Out Black Out mode instantly turns all LED’s off. Press the Black Out button to engage or disengage Black Out mode.
  • Page 9 Auto In Auto mode, the light loops through various preprogrammed colors. To turn on Auto mode, press the Auto button, then press (+) or (-) to increase or decrease the speed of the program. Strobe In Strobe mode, the light will flash at the desired rate. To turn on Strobe mode, press the Strobe button, then press (+) or (-) to increase or decrease the strobing rate.

  • Page 10: Dmx Values

    DMX Values 3 channel mode Channel Value Function 000-255 000-255 Saturation 000-255 Value 6channel mode Channel Value Function 000-255 000-255 Green 000-255 Blue 000-255 Amber 000-255 White 000-255 8 channel mode Channel Value Function 000-255 Master Dimmer 000-255 000-255 Green 000-255 Blue 000-255...
  • Page 11 11 channel mode Channel Value Function 000-255 Master Dimmer 000-255 000-255 Green 000-255 Blue 000-255 Amber 000-255 White 000-255 000-255 Strobe 000-015 None 016-095 Auto Mode 096-175 Fade Mode 176-255 Sound Active 0-255 Dimmer Speed 000-005 Default Dimmer 006-065 Linear Dimmer 066-125 Curve Dimmer 126-185...
  • Page 12 Setup Examples Master / Slave AIRBAR HEX 6 AIRBAR HEX 6 The AirPar HEX 4 includes an integrated W-DMX transceiver for instant wireless connectivity. This enables the AirPar to wirelessly control any Air Series fixture in the same wireless group. To achieve this, simply set an AirPar to Master and all other fixtures to Slave.
  • Page 13 The AirPar can also transmit wireless DMX to most 2.4ghz enabled W-DMX lights outside of the Air Series ecosystem through group ID 0-5 (such as the ColorKey MobilePar Mini HEX 4). Simply scroll through the wireless bands on your lights until a signal connection is made...

  • Page 14: Troubleshooting

    Troubleshooting Problem Solutions • Confirm the Wireless Group ID is the same as the transmitter • Make sure the fixture is in DMX mode No DMX control • Make sure wireless is enabled on your AirBar, or that a DMX cable is properly connected to your controller.

  • Page 15: Technical Information

    Technical Information • 4x12W RGBWA+UV 6-in-1 LEDs • 25˚ beam angle • DMX Channel Modes: 3 / 6 / 8 / 11 channels • Built-in 2.4Ghz W-DMX transceiver for wireless connectivity • Lithium-Ion battery (+/-) 20 hours single color; (+/-) 6 hours full color, (+/-) 5 hours charge time •...
