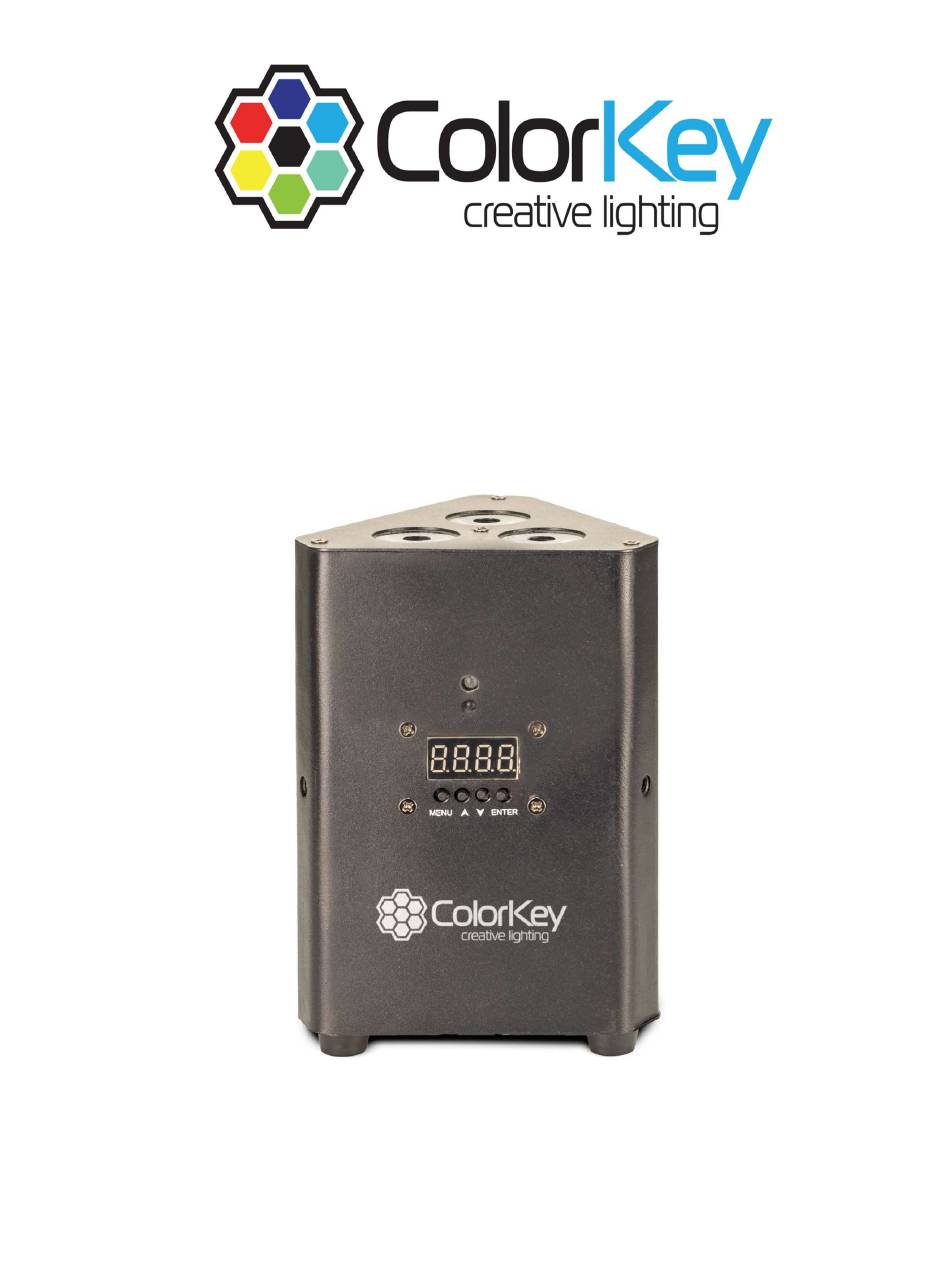

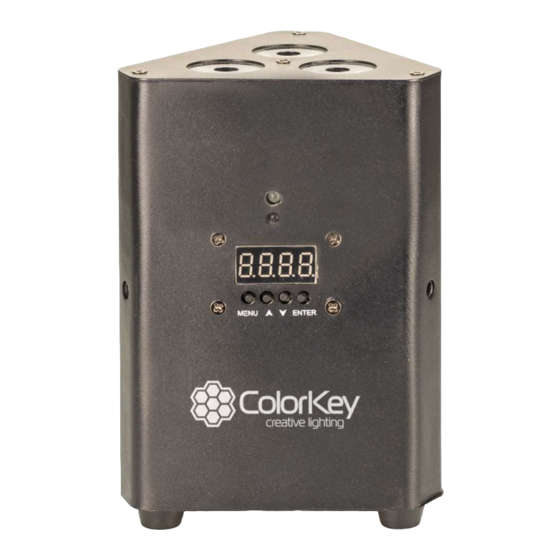

- Page 1 TrussPar QUAD 3 GO CKU-2060 USER MANUAL...
- Page 2 Introduction Thank you for purchasing the ColorKey TrussPar QUAD 3 GO. Please read these instructions carefully before use. O perating this fixture according to these instructions is important to avoid any possible damage or accidents caused by misuse. Packing list ...
-
Page 3: Display Operation
Display Operation A: Menu: Select to scroll through menu options B: UP: Press to scroll up through menu selections or increase parameters C: DN: Press to scroll down through menu selections or decrease parameters D: Enter: Select the current menu option ... -
Page 4: Menu Guide
Menu Guide Display value Function and description A 001-512 Set DMX address in 5CH mode H 001-512 Set DMX address in 9CH mode CC 00-99 Set Color Change speed CP 00-99 Set Color Fade speed DE 00-99 Set Color Pulse speed BE 0-4 Set Sound Active program R 0-255... -
Page 5: Dmx Values
DMX Values 5 channel mode Channel Value Function 0-255 0-255 Green 0-255 Blue 0-255 White 000-004 DMX 512 ID 0 005-009 DMX 512 ID 1 010-014 DMX 512 ID 2 015-019 DMX 512 ID 3 020-024 DMX 512 ID 4 …... -
Page 6: Power And Charging
Power and Charging Switch Settings for Use and Charging “AC POWER” is the power switch- when “AC POWER” is IN (right side pressed down), the light can be powered by an external power source, “BATTERY POWER” is a battery switch, when “BATTERY POWER”... -
Page 7: Master/Slave Mode Operation
Master/Slave Mode Operation Master/Slave Master/Slave mode allows you to connect multiple units together using one (1) unit to control others in a chain. When a fixture is set to ‘Master Mode,’ this unit will always act as a controlling unit until it is switched out of ‘Master Mode’. The Master unit will send out signal via DMX to Slave units which will react in synchronization. -
Page 8: Technical Information
Battery working time: (+/-) 6 hours Full color, (+/-) 5 hours charge time Product size: 110 x 110 x 135 mm Net Weight: 0.8kg Notice to consumer: ColorKey offers a 2-year limited warranty. Please visit our website at www.ColorKeyLED.com to register your product. - Page 9 and specifications at www.ColorKeyLED.com or you may contact us directly at info@colorkeyled.com.
