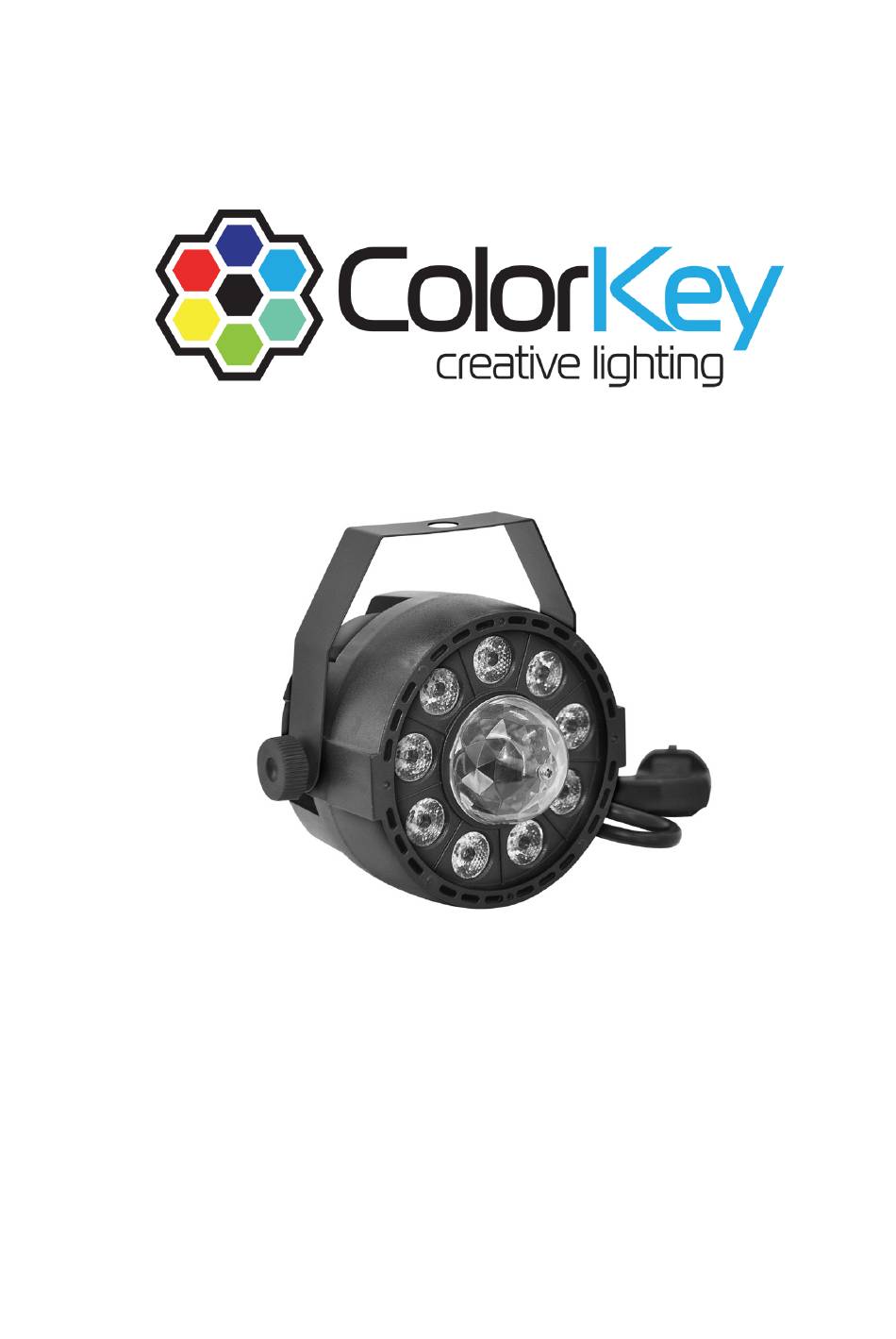

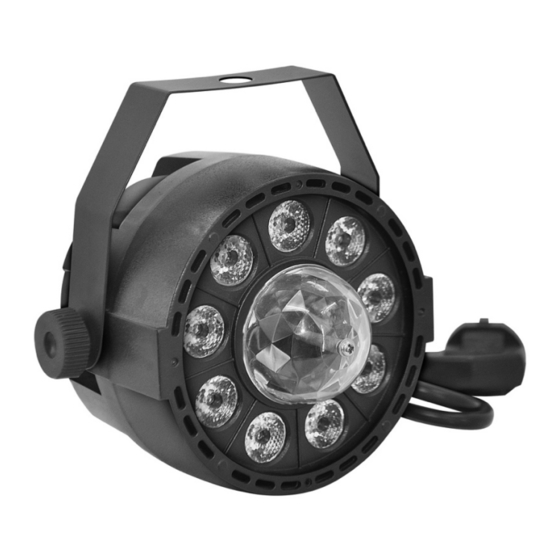

- Page 1 PartyLight FX CKU-1080 USER MANUAL...
-
Page 2: Table Of Contents
Table of Contents INTRODUCTION ............................... 3 SAFETY ..................................3 SERVICE & SUPPORT ............................3 DISPLAY OPERATION ............................4 MENU GUIDE ................................5 INFRARED REMOTE (IR) CONTROL ........................6 DMX VALUES ................................8 SETUP & CONNECTIONS ............................9 TROUBLESHOOTING ............................. 9 TECHNICAL INFORMATION .......................... -
Page 3: Introduction
• Do not operate this fixture if the power cord has been damaged. Turn off fixture and replace with a power cord of similar rating. Service & Support Your ColorKey product includes a 1-year warranty. For technical support or to register your product, please visit https://www.colorkeyled.com/support/... -
Page 4: Display Operation
Display Operation MENU: Access the menu/Scroll through menu options Scroll through menu selection or increase parameter DOWN: Scroll through menu selection or parameters decrease ENTER: Open/Select the current menu option... -
Page 5: Menu Guide
Menu Guide Menu Item Values Function Show d0001 1-512 Set DMX Address (001 to 512) IP.01 1-64 Set IP Code (0 to 64) A1.01 A1.19 Static Color Mode A2.01 Color Chase Mode A3.01 Color Pulse Mode A4.01 Sound Active Mode A5.01 Strobe Mode R.000... -
Page 6: Infrared Remote (Ir) Control
Infrared Remote (IR) Control To use the IR remote, simply point the remote at the IR receiver on the lighting fixture. The IR receiver on the AirPar HEX 4 is located top panel with the LED lenses. A1 – Static Mode In Static mode, the light will hold a preprogrammed color. - Page 7 A3 –Pulse Mode In Pulse Mode, the light creates smooth, pulsing color transitions. To turn on Pulse mode, press the A3 button, then press (+) or (-) change colors or to increase or decrease the speed of the program. A4 – Sound Active Mode Sound-Active mode enables the light to respond to ambient sounds in the room using the fixture’s built-in microphone.
-
Page 8: Dmx Values
DMX Values 8 channels mode Channel Value Description 0-10 No Function 11-50 Macro A1 51-100 Macro A2 Macro Function 101-150 Macro A3 151-200 Macro A4 201-255 Macro A5 0-39 All Color 40-49 50-59 Green 60-69 Blue 70-79 Yellow 80-89 Cyan 90-99 Purple 100-109... -
Page 9: Setup & Connections
Setup & Connections ① Wired DMX Cable Connections Use a DMX to cable to connect to the in/out sockets on the bottom of the light for use with a cabled connection for DMX 512 control. WIRELESS WIRELESS WIRELESS MASTER MASTER MASTER SOUND SLAVE... -
Page 10: Technical Information
Technical Information • 9x1W RGB LEDs + 3pc RGB Ball • DMX Channel Modes: 8 channels • Control modes: DMX 512, IR Remote, Master /Slave, Sound Active, Stand Alone • 0-100% Dimmer • Lamp rated life: >50000 Hours • Working temperature: up to 40˚C •...
