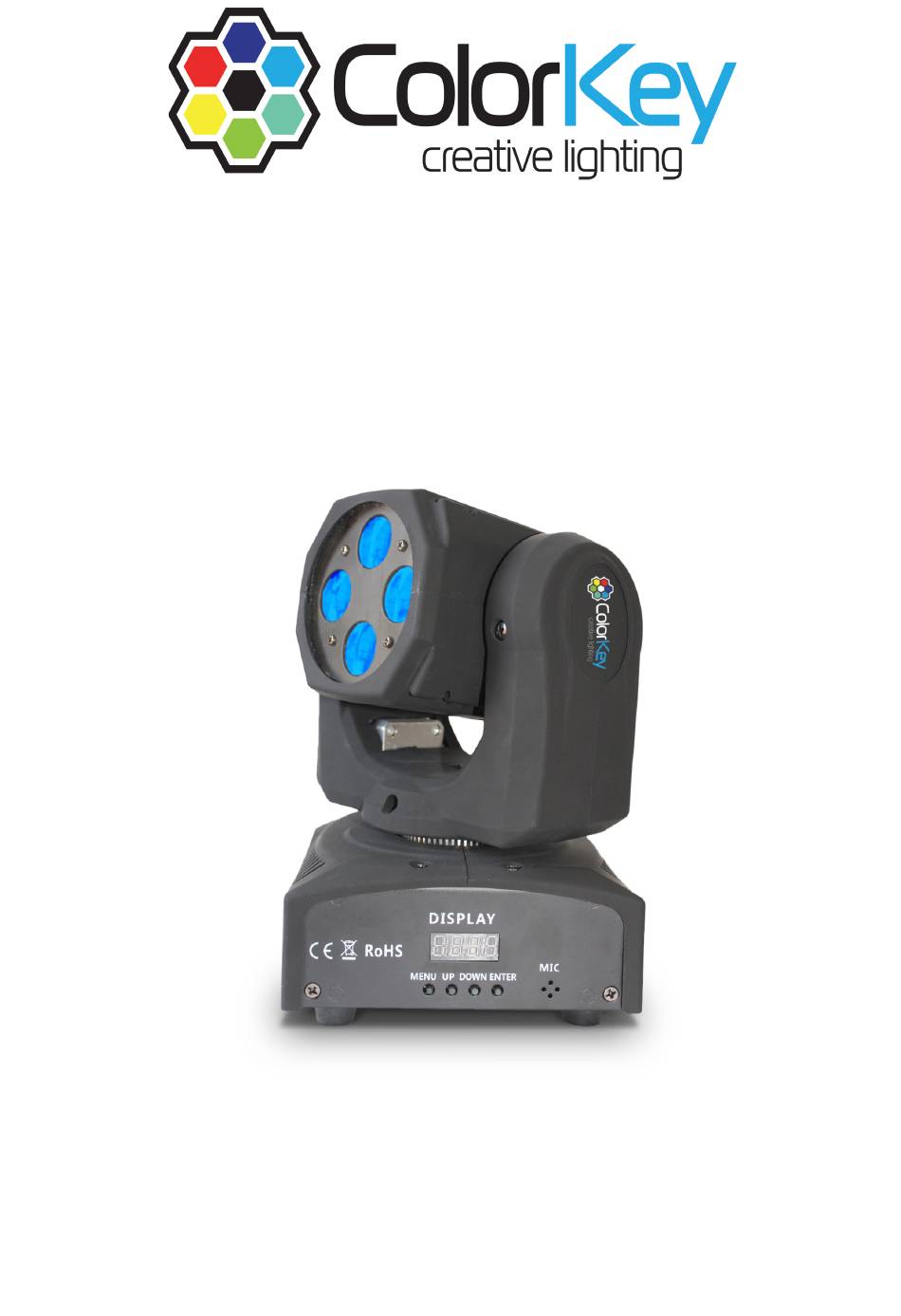

- Page 1 Mover Mini Superbeam QUAD 4 CKU01-5034 USER MANUAL...
- Page 2 Introduction Thank you for purchasing the ColorKey Mover Mini Superbeam QUAD 4. Please read these instructions carefully before use. Operating this fixture according to these instructions is important to avoid any possible damage or accidents caused by misuse. Packing list...
-
Page 3: Display Operation
Display Operation Ø MENU: Access the menu/Scroll through menu options Ø ENTER: Open/Select the current menu option Ø UP: Scroll through menu selection or parameter increase Ø DOWN: Scroll through menu selection or parameters decrease... -
Page 4: Menu Guide
Menu Guide Addr A001-A512 DMX 512 address CHnd 10CH 10 channel setting 17CH 17 channel setting SLnd MAST Master mode SLAV Console control SHnd Soud Sound active Auto Speed (sp0-sp9), Auto selection SEnS 0-100 Sensitivity adjustment (Sound active) bLnd Standby Mode (ON) Standby Mode (OFF) LED display OFF (5 seconds later) LED display ON (always) -
Page 5: Dmx Values
DMX Values 10 Channel mode Value Function 0-255 PAN running (0° - 540°) 0-255 TILT running (0° - 220°) 0-255 Motor speed (PAN / TILT), from fast to slow 0-127 Rotation motor: 360°running route locate 128-191 Forward infinite rotation (from fast to slow) 192-255 Forward infinite rotation (from slow to fast) 0-255... - Page 6 17 Channel mode Value Function 0-255 PAN running (0° - 540°) 0-255 Hint adjustment (PAN) 0-255 TILT running (0° - 220°) 0-255 Hint adjustment (TILT) 0-255 Motor speed (PAN / TILT), from fast to slow 0-127 Rotation motor: 360°running route locate 128-191 Forward infinite rotation (from fast to slow) 192-255...
-
Page 7: Dmx Connections
DMX Connections Ø DMX Cable ： The Mover Mini Superbeam QUAD 4 can be controlled via DMX using a 3-pin XLR connection. The standard DMX connection is XLR is: one end connects to the male plug, and the other connects to the female. As below: pin 1: ground, pin 2: negative signal, pin 3: positive signal Noted：In order to avoid failures and interference signal transmission，we connect a... -
Page 8: Master/Slave Mode Operation
Master/Slave Mode Operation Master/Slave Master/Slave mode allows you to connect multiple units together using one (1) unit to control others in a chain. When a fixture is set to ‘Master Mode,’ this unit will always act as a controlling unit until it is switched out of ‘Master Mode’. The Master unit will send out signal via DMX to Slave units which will react in synchronization. -
Page 9: Technical Information
Pan: 540˚ Tilt: 220˚ IP rate: IP20 Notice to consumer: ColorKey offers a 1-year limited warranty. Please visit our website at www.ColorKeyLED.com to register your product. Please note: As we continue to work towards improving our products and your experience as a user, we recommend that you check our website periodically for updates to user manuals and specifications at www.ColorKeyLED.com or you may contact us directly at...
