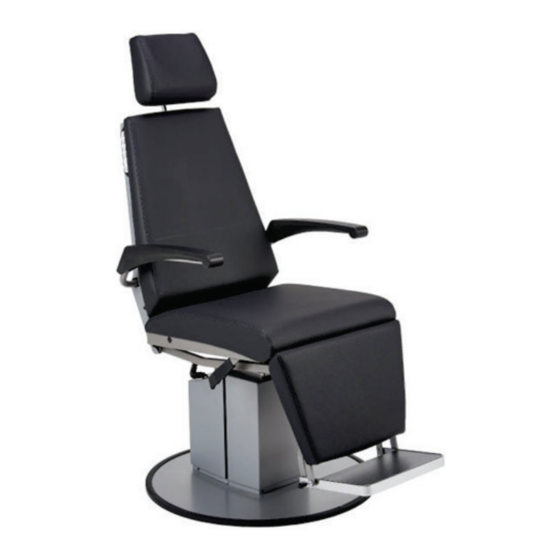

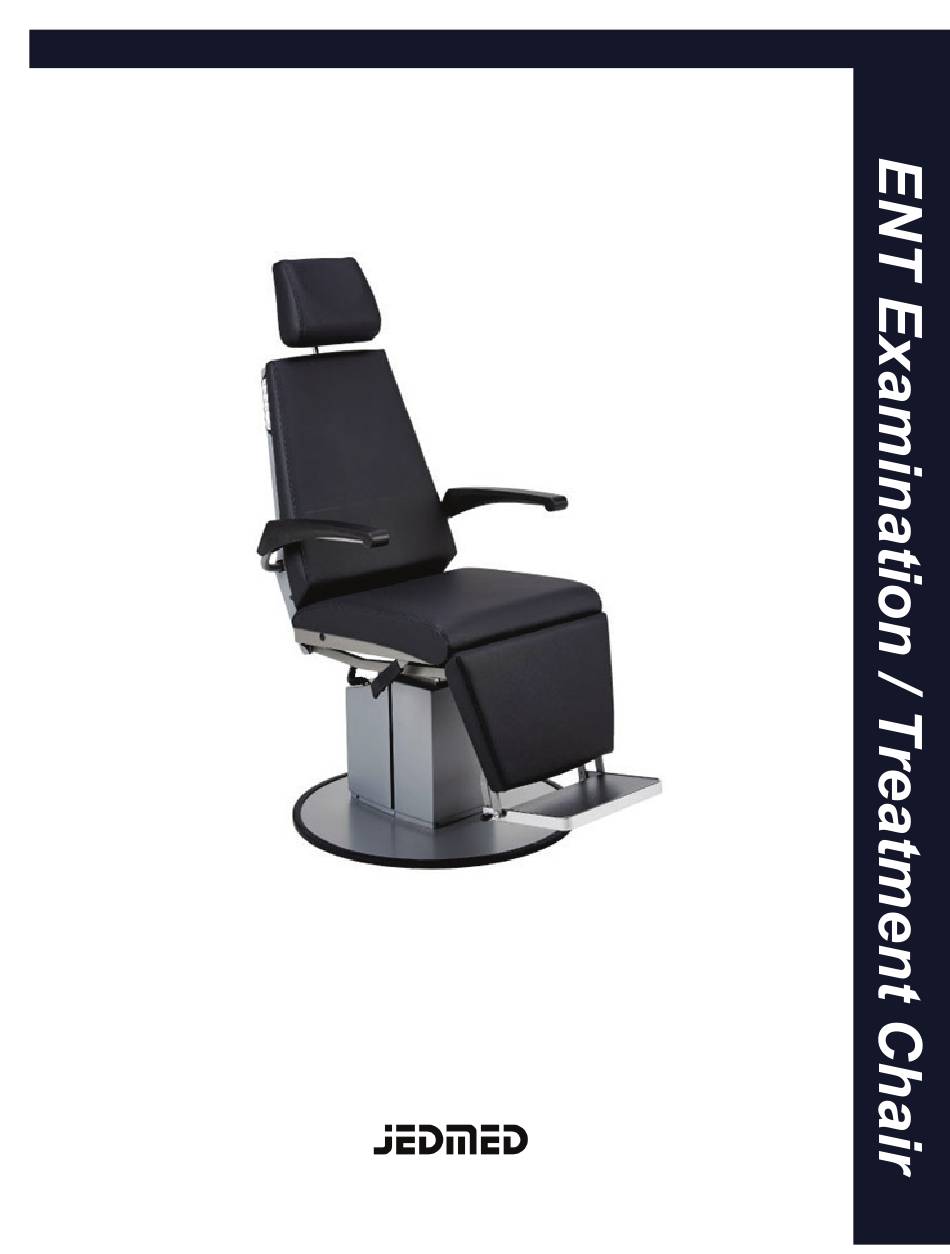

- Page 1 Instructions for Use S-II Plus Chair Operating / Service Manual IMPORTANT: Read all instructions before assembling or using this device. Employee-Owned...
- Page 2 JEDMED is committed to delivering reliable and cost-effective solutions to medical professionals everywhere. The employee-owners of JEDMED would like to take this opportunity to thank you for all your support. We are pleased and proud to serve the ever-changing medical community.
-
Page 3: Table Of Contents
S-II Plus Chair Operating / Service Manual CONTENTS Section Page OPERATING Precautions................. Description & Indications for Use........Contents................Options................7 Unpacking................Assembly................Identification and Operation Main Parts................. Headrest Height and Tilt Adjustment........Armrests................... Electronic Controls..............Reset Function................. Rotation Lock................List of Warnings…............ -
Page 4: Precautions
S-II Plus Chair Operating / Service Manual PRECAUTIONS The following conventions are used throughout this manual: WARNING Read Instruction Application part Alerts user to the possibility of Manual is type B PERSONAL INJURY. CAUTION General hazard Alerts user to the possibility of... -
Page 5: Description & Indications For Use
Given reasonable care, these products will provide many years of JEDMED’s S-II Plus Chair offers power recline of the trouble-free service. backrest and footrest together, which lays the chair out into a table. The chair has a powered electric lift base which contains an integrated rotation lock. -
Page 6: Contents
CONTENTS Carefully unpack all components. Verify contents and inspect for shipping damage. NOTE Any shipping damage should be documented and reported immediately to the carrier or JEDMED. S-II Plus Chair, 115V (Item #04-1545-P) S-II Plus Chair, 230V (Item #04-1547-P) -
Page 7: Options
S-II Plus Chair Operating / Service Manual OPTIONS Examination Light Kit Examination Light Kit Light Installed Headrests Standard Headrest Fully-Articulating Headrest Pediatric Booster Seat Foot Control... -
Page 8: Unpacking
Use care not to cut upholstery or scratch chair with sharp tools. NOTE Any shipping damage should be documented and reported immediately to the carrier or JEDMED. The S-II Plus Chair may only be shipped in an upright position and carefully secured. -
Page 9: Assembly
S-II Plus Chair Operating / Service Manual ASSEMBLY INSTRUCTIONS Assembly: Typically, all chairs arrive fully assembled. No on-site assembly is required other than mounting base to the floor for additional security, as desired. WARNING For maximum protection, securely fasten lift base to floor to prevent accidental tipping. -
Page 10: Identification And Operation
S-II Plus Chair Operating / Service Manual IDENTIFICATION / OPERATION Main Parts WARNING Do not sit or lean on leg rest or backrest. Chair may tip if incorrectly or excessively loaded! Headrest Safe load limit of 440 lbs (200 kg) - Must be evenly... -
Page 11: Headrest Height And Tilt Adjustment
S-II Plus Chair Operating / Service Manual IDENTIFICATION / OPERATION Headrest Height Adjustment • Securely hold headrest in position with one hand. Unlock position by rotating headrest height adjustment handwheel counter-clockwise. • • Raise or lower headrest to new desired position. -
Page 12: Electronic Controls
Continue holding both buttons until beeping becomes silent. Note: Reset may be performed with the chair in any arbitrary height or layout position. Chair does NOT need to be fully down and upright. If beeping continues after resetting chair several times, contact JEDMED •... -
Page 13: Rotation Lock
IDENTIFICATION / OPERATION ROTATION LOCK The S-II Plus Chair can rotate a maximum of 350ֹ ° . Internal stops limit excess rotation and prevent damage to electrical connections. The rotation lock prevents the chair frame from rotating on base. Engagement levers are located on either side of the chair, under the seat. -
Page 14: List Of Warnings
S-II Plus Chair Operating / Service Manual LIST OF WARNINGS (Additional) – Also, General Precautions (page 4) WARNING ALWAYS use Extreme Care when chair is running in Automatic Mode! Pressing any button will cancel automatic operation. WARNING NEVER sit or lean on leg rest or backrest. -
Page 15: Cleaning / Disinfection
S-II Plus Chair Operating / Service Manual CLEANING AND DISINFECTING WARNING Always unplug unit from main power outlet before cleaning, disinfecting, maintenance, or service. Chairs should be cleaned and disinfected before initial use and between each patient. Cleaning Chair frame, upholstery and base may be wiped clean using a soft cloth moistened with water and a mild detergent. -
Page 16: Specifications
S-II Plus Chair Operating / Service Manual SPECIFICATIONS Mechanical Data English Metric Seat Width 20 in 513 mm Seat Depth 18 in 452 mm Overall Height (without headrest) 44 in 1124 mm Overall Width (without accessories) 28 in 704 mm... -
Page 17: Dimensions
S-II Plus Chair Operating / Service Manual DIMENSIONS Note: Dimensions shown in mm... -
Page 18: Maintenance
Scheduled Maintenance The S-II Plus Chair should be cycled fully up and down 8-10 times every 60 days. Even if a chair is used regularly, often the working height is within a limited range. Cycling the chair through its entire range will insure proper lubrication of the hydraulic piston and seals, thus maximizing the life of the base. -
Page 19: Testing Electrical Safety
Testing Electrical Safety Electrical safety must be checked, as needed, periodically, to assure continued safety. JEDMED recommends checking at least once every six (6) months or as needed. Visual Inspection Remove plastic covers on the base unit and the back section. Check all cables for damage. If a cable is defective, replace before the inspection is continued. - Page 20 S-II Plus Chair Operating / Service Manual Blank...
-
Page 21: Service
S-II Plus Chair Operating / Service Manual SERVICE INFORMATION... - Page 22 S-II Plus Chair Operating / Service Manual WARNING Always unplug unit from main power outlet before cleaning, disinfecting, maintenance, or service. Service should only be performed by a qualified technician. Contact JEDMED for further information.
-
Page 23: Troubleshooting
S-II Plus Chair Operating / Service Manual TROUBLESHOOTING Problem Possible Cause Solution Chair base or backrest will not lift at Chair base is not plugged into a Test power outlet with another all. powered outlet. device to assure power is available. -
Page 24: Assembly Drawing
S-II Plus Chair Operating / Service Manual ASSEMBLY DRAWING Contact JEDMED... - Page 25 Notes...
- Page 27 5416 JEDMED Court St. Louis, MO 63129 (314) 845-3770 phone (314) 845-3771 e-mail: info@jedmed.com website: www.JEDMED.com...
