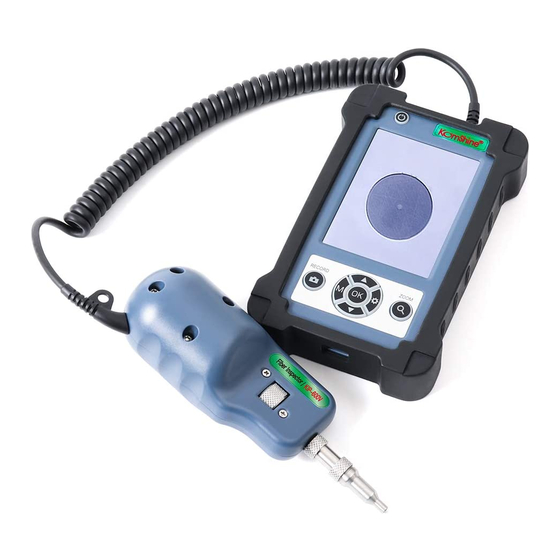

KIP-600V fiber inspection probe instruction manual
1
Description of external and function keys
1
2
3
4
5
1
Switch:Turn the device on or off
2
Silicone case: shock-proof, drop-proof, dust-proof
3
Display: display the cleaning state of the end face
4
Record key: record measurement information, support
information playback.
5
M key: select different modes for testing.
6
▽key:Switch to the next page
8
Zoom in and out
2
Switch machine and LCD display
Long press the "
" key for
more than two seconds,the meter
will be turn on. Press this key for
more than two seconds again to
turn off the instrument.Using 3.5-
inch high-definition LCD display to
further improve the display
brightness and clarity, there by
avoiding visual fatigue.
9
M
OK
7
6
7
Setting key
9
△key:Switch to previous page
M
OK
3
8
4
"M"Key can convert capture, save
and viewing page.The setting key
can set the time,Language etc.
M
5
M
Record, zoom in and out
Press the "
real time recording and record
measurement information,It supports
data return,easy to check and
statistics.The " " key can be switched
between 200X and 400X
magnifications, It is clear to view
cleanliness of the fiber end face.
M
OK
Modes and settings
Up and down key switch
Up and down keys to scroll through
the saved pictures and videos.
OK
" button to do the
OK
