KFL-11M Visual Fault Locator Manual
1

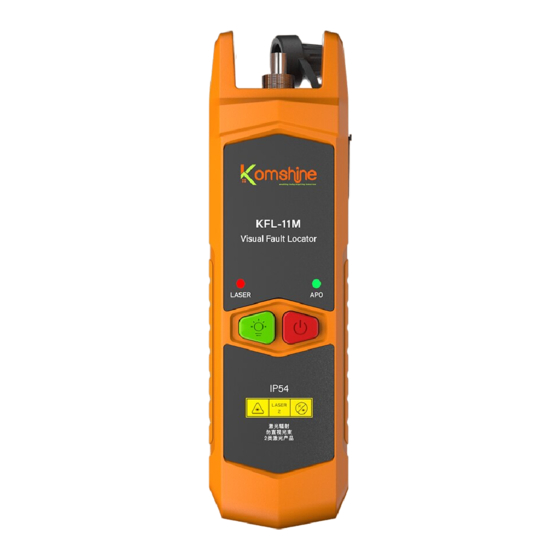

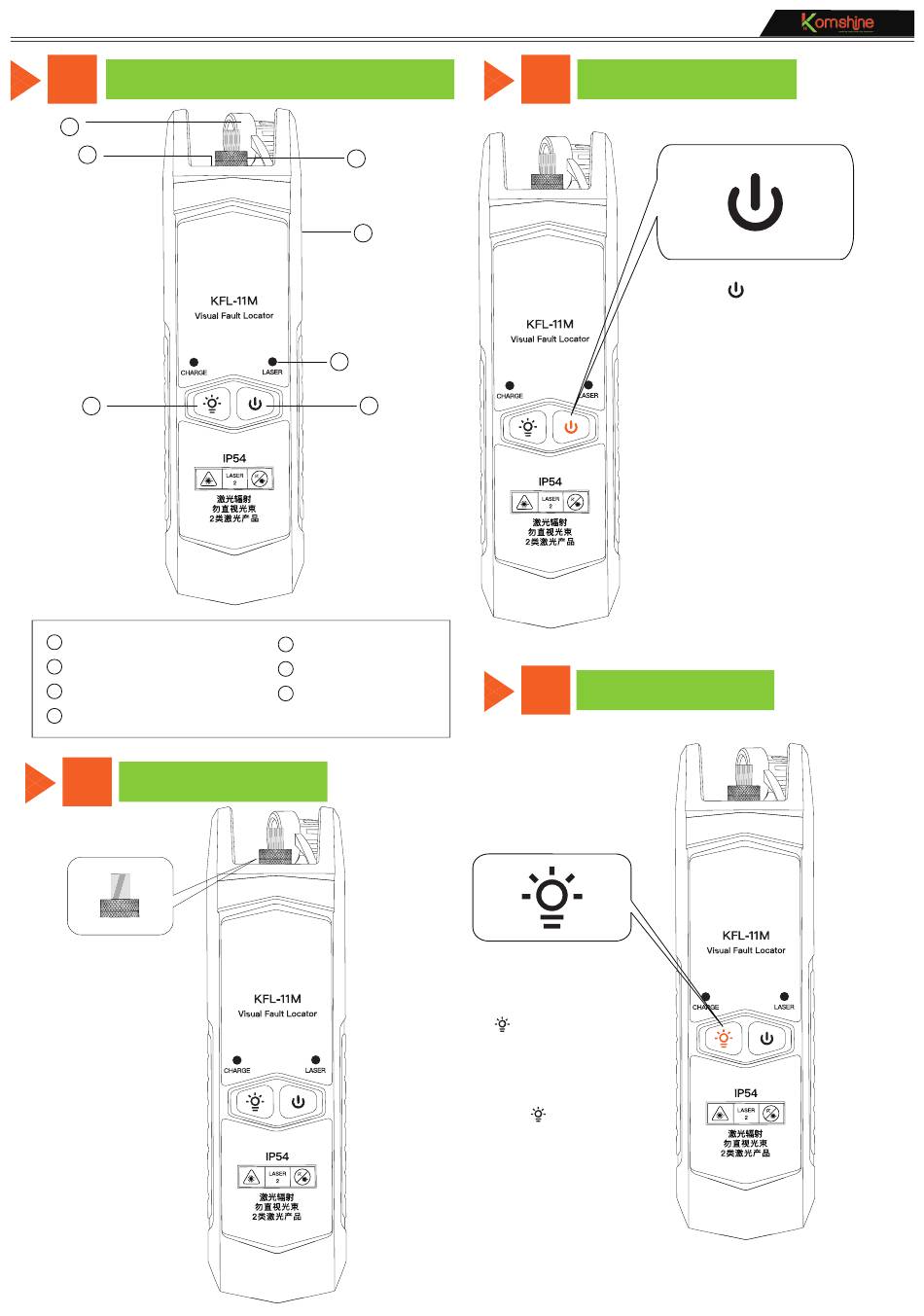

External and key function description
2
3
7
1
Ceramic ferrule
2
Silicone cap
3
LED light: flashlight lighting
4
USB charging port
2
Laser connector
Open the dust cap and
insert the tested fiber into the
laser connector.
1
4
6
5
5
On/off key
6
Indicator light
7
LED lighting switch
(干电池款不可充电)
3
On/off key
red indicator light will light up, and the laser will
output continuous wave at the same time;
（If the optical fiber is connected, red light can
be seen at the end of the fiber under normal
circumstances; If the fiber is disconnected, there
is no red light output at the end of the fiber)
light flashes, and the laser pulse wave is output at
the same time; short press again to turn off the
red light.
matically shut down if there is no operation for
15 minutes to extend the battery life.
4
LED flashlight
Flashlight switch: long press
the " " button to turn on the
flashlight, which is convenient to
use in a dark environment and
realize the lighting function; short
press the " " button to turn off
the flashlight.
Long press " " to turn on the device, the
Short press the power button, the indicator
Under normal circumstances, it will auto-
