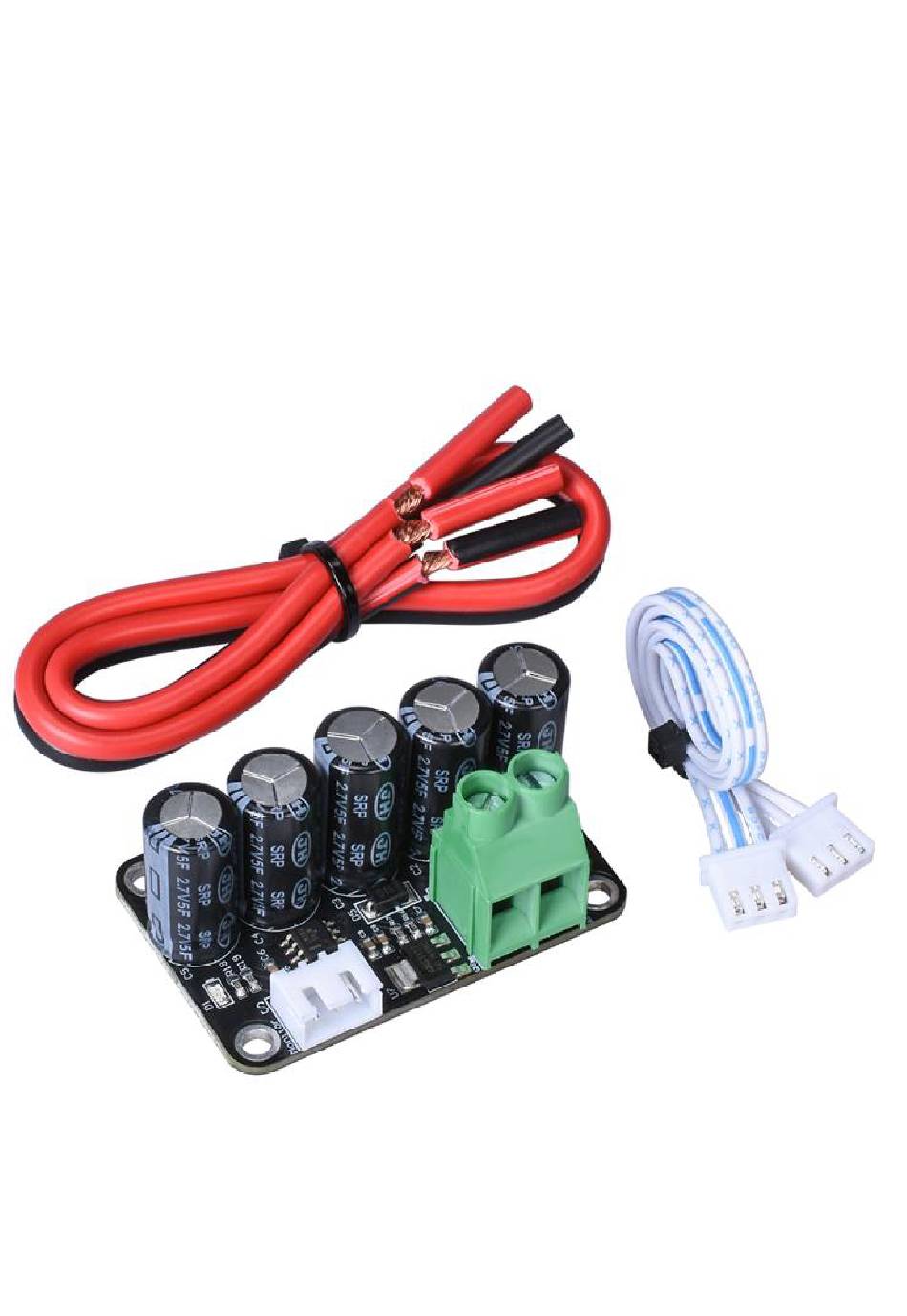

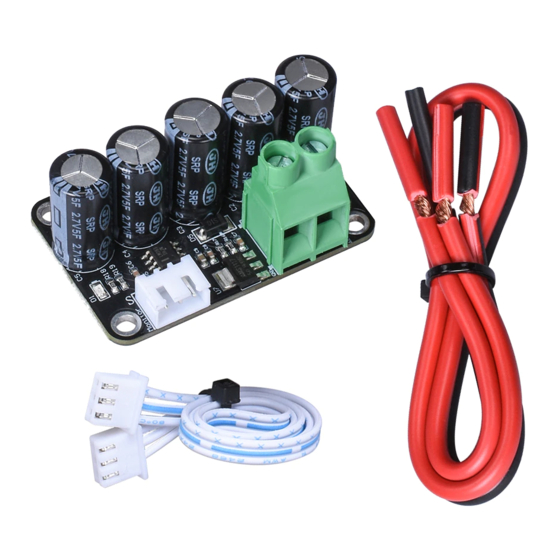

- Page 1 MINI UPS V2.0 Power failure module User Manual SHENZHEN BIGTREE TECHNOLOGY CO., LTD. BIGTREE-TECH.COM VERSION BETA 1.0 AUTHOR: MERT CAPKIN & BTT AFTER-SALES TEAM...
- Page 2 Product Introduction BigTree Technology Co., Ltd. developed this power failure module to detect a power failure during printing and ensuring the print can be resumed after power is returns. Board specifications 1) Size: 50 x 32.5mm 2) Input voltage: min. 10V DC, max.12V DC 3) Max.
- Page 3 Connect to BIGTREETECH SKR V1.3...
- Page 4 Firmware Download the Marlin 2.0: https://github.com/MarlinFirmware/Marlin/tree/bugfix-2.0.x Please modify the parameters according to the printer and then add the function of this power failure module. 1. Enable “SDSUPPORT” in “Configuration.h” file 2. Enable “POWER_LOSS_RECOVERY” in “Configuration_adv.h” file Enable “BACKUP_POWER_SUPPLY” means that we have a backup power supply for the stepper so that the hotend can leave the printed model when power failed.
