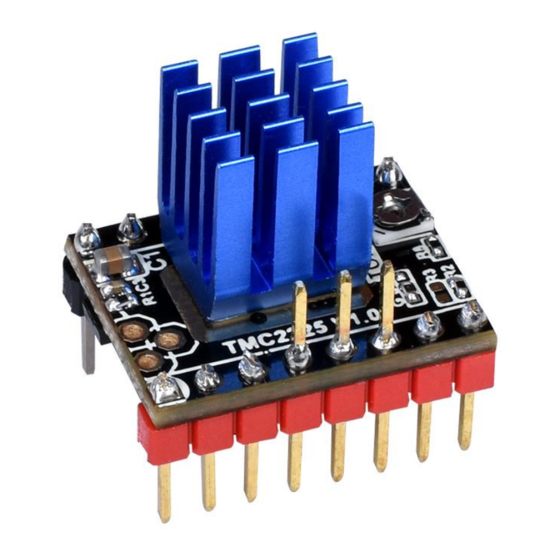

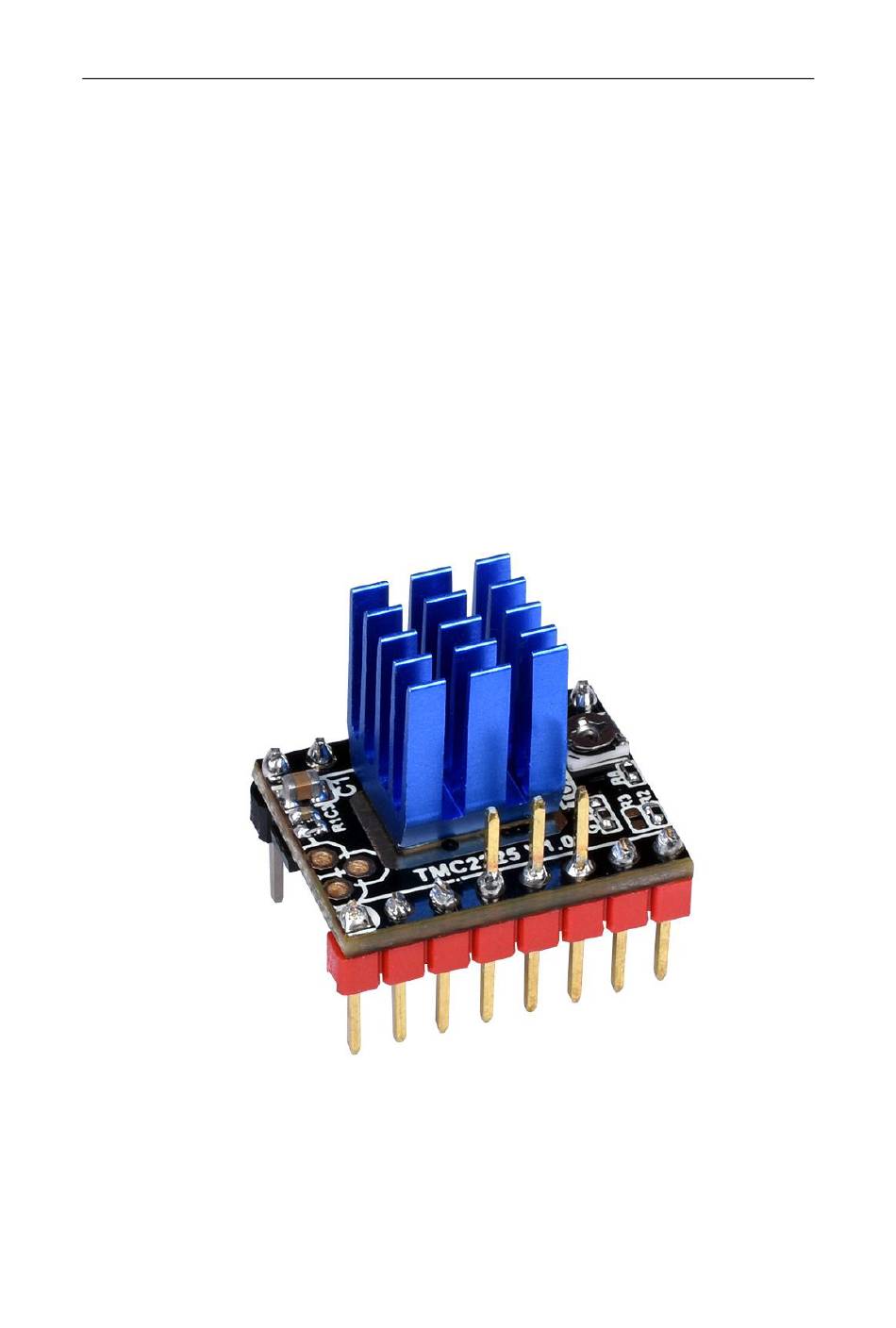

- Page 1 Shenzhen BIGTREE technology co., LTD. BIG TREE TECH BIGTREETECH TMC2225-V1.0 Stepper motor driver module...
- Page 2 Shenzhen BIGTREE technology co., LTD. BIG TREE TECH I.Size information...
- Page 3 Shenzhen BIGTREE technology co., LTD. BIG TREE TECH Parameter description 2-phase stepper motors up to 2A coil current (peak) STEP/DIR Interface with 4, 8, 16 or 32 microstep pin setting Smooth Running 256 microsteps by MicroPlyer interpolation StealthChop2 silent motor operation SpreadCycle highly dynamic motor control chopper Low RDSon LS 280mΩ...
- Page 4 Shenzhen BIGTREE technology co., LTD. BIG TREE TECH Working mode choice：MS1、MS2： Spread：The default spread setting is stealthChop mode, and users can change it as they like。...
- Page 5 Shenzhen BIGTREE technology co., LTD. BIG TREE TECH 2.UART mode： Benefits of UART mode: Motor current can be set arbitrarily through the firmware; Microsteps can be set arbitrarily through firmware (up to 256 actual microsteps); Actual and interpolated microsteps can be combined to achieve maximum torque; The firmware can dynamically switch the stealthChop2 and spreadCycle modes through UART.
- Page 6 Shenzhen BIGTREE technology co., LTD. BIG TREE TECH Clockwise Rotating Potentiometer - Reduce Vref, thereby reducing drive current; Counterclockwise rotating potentiometer - Increase Vref, thereby increasing the driving current. The accurate voltage of Vref can only be measured when the main board is supplied with 12V or 24V voltage.
- Page 7 Shenzhen BIGTREE technology co., LTD. BIG TREE TECH Configuration_adv.h: Default settings: 16 microsteps, 800mA current *Use Trinamic Stealthchop mode. *When disabled, Marlin uses spreadCycle step mode。 IV. Notes 1. When hardware chooses UART working mode, cautiously use soldering iron to prevent scalding hands. After treatment, carefully observe whether there is residual tin slag in the module.
- Page 8 If you encounter problems in use, welcome to contact us, we will be answer to you ASAP. If you have any good comments or suggestions on our products, please tell us, we will carefully consider your comments or Suggestions. Thank you for choosing BIGTREETECH products, thank you!
