  • Page 1  User Manual Remote Control RUNNER ...
  • Page 2 IT’S FORBIDDEN TO FULLY OR PARTIALLY REPRODUCE THIS MANUAL WITHOUT THE PRIOR WRITTEN AUTHORISATION FROM ITOWA. IN THE EVENT OF INFRINGEMENT, ITOWA RESERVES THE RIGHT TO TAKE THE ACTION IT DEEMS NECESSARY IN ACCORDANCE WITH THE CURRENT LAW. ITOWA RESERVES THE RIGHT TO MODIFY THIS MANUAL WITHOUT PRIOR...
  • Page 3  REMOTE CONTROL RUNNER USER MANUAL PLEASE FULLY CHARGE THE BATTERIES BEFORE USING THE EQUIPMENT FOR THE FIRST TIME...

  • Page 4: Table Of Contents

     REMOTE CONTROL RUNNER USER MANUAL INDEX: 1. INTRODUCTION 2. GENERAL TERMS FOR THE CORRECT AND SAFE USE OF RADIO REMOTE CONTROL 2.1. KEYBOARD LOCKING PROCEDURE 3. DESCRIPTION OF ITEMS 3.1. REMOTE CONTROL 3.2. BATTERY CHARGER 3.2.1. BATTERY CHARGING PROCESS 4.

  • Page 5: Introduction

     REMOTE CONTROL RUNNER USER MANUAL 1. INTRODUCTION The manual you have in your hands is a guide for the correct use of the RUNNER remote control. This unit, together with the associated receiver, has been specifically designed for the wireless remote control of electromechanically operated machinery.

  • Page 6: Description Of Items

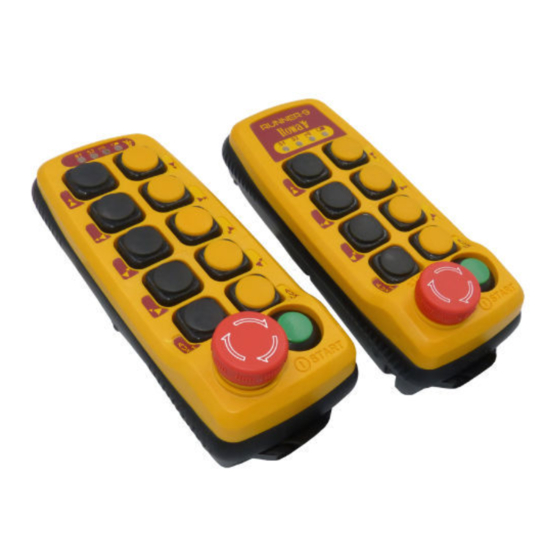

     REMOTE CONTROL RUNNER USER MANUAL 3. DESCRIPTION OF ITEMS Remote control, batteries and charger. 3.1. REMOTE CONTROL It’s a sealed pushbuttons box made of highly resistant plastic material. On the front side you can find the control buttons and LED indicators, and on the back side there is the housing for the interchangeable batteries.
  • Page 7  REMOTE CONTROL RUNNER USER MANUAL Power LED Loading Led Detail of the LEDs on the battery charger.

  • Page 8: Technical Specifications

     REMOTE CONTROL RUNNER USER MANUAL 4. TECHNICAL SPECIFICATIONS 4.1. REMOTE CONTROL Order response time: <50 ms Active emergency time: <50 ms Passive emergency time: 1600 ms Range of action: 100 meters 433,050 to 434,775 MHz Frequency bands (I-ETS 300 220): 868,000 to 870,000 MHz Temperature range : From -20ºC to +70ºC...

  • Page 9: Installation And Start-Up

     REMOTE CONTROL RUNNER USER MANUAL 5. INSTALLATION AND START-UP 5.1. INSTALLATION OF THE RECEIVER The details of the installation of the receiver can be found in the corresponding manual. It’s essential that you consult this manual before the start-up. 5.2.

  • Page 10: Maintenance Of Radio Remote Control Equipment

    It’s advisable that this revision is done by a Technical Assistance Service accredited by ITOWA, since a bad waterproofing can cause irreparable damage to the equipment.

  • Page 11: Battery Charging

    USER MANUAL 6.2. BATTERY CHARGING The batteries included in the ITOWA equipment have no memory effect, which means that they can be put into charge without being completely discharged. For this reason, and in order to extend their useful life, it’s recommended to use one battery every half working day.

  • Page 12: Display Of The Equipment Code

     REMOTE CONTROL RUNNER USER MANUAL 7. DISPLAY OF THE EQUIPMENT CODE In case you need to know the equipment's code, the receiver allows you to display it. You can consult the manual of the receiver associated to this remote control to see the procedure that has to be followed, in order to see this code.

  • Page 13: Channel Assignment Table

     REMOTE CONTROL RUNNER USER MANUAL 8. CHANNEL ASSIGNMENT TABLE 8.1. CHANNELS IN FREQUENCY 433 MHZ Channel 1: 433.050 MHz Channel 25: 433.650 MHz Channel 49: 434.250 MHz Channel 2: 433.075 MHz Channel 26: 433.675 MHz Channel 50: 434.275 MHz Channel 3: 433.100 MHz Channel 27: 433.700 MHz Channel 51: 434.300 MHz...

  • Page 14: Channels In Frequency 868 Mhz

     REMOTE CONTROL RUNNER USER MANUAL 8.2. CHANNELS IN FREQUENCY 868 MHZ Channel 1: 868.000 MHz Channel 28: 868.675 MHz Channel 55: 869.350 MHz Channel 2: 868.025 MHz Channel 29: 868.700 MHz Channel 56: 869.375 MHz Channel 3: 868.050 MHz Channel 30: 868.725 MHz Channel 57: 869.400 MHz Channel 4: 868.075 MHz...

  • Page 15: Possible Incidents And Solutions

     REMOTE CONTROL RUNNER USER MANUAL 9. POSSIBLE INCIDENTS AND SOLUTIONS INCIDENT STATE SOLUTION Check that the battery is correctly inserted. None of the indicators from the remote Check the charge status of the battery or control light up replace it directly with a charged one. Remote control with blocked keyboard, Both LEDs from...

  • Page 16: Quick Display Guide

     REMOTE CONTROL RUNNER USER MANUAL 10. QUICK DISPLAY GUIDE 10.1. SUMMARY OF FUNCTIONALITY OF THE REMOTE CONTROL LEDS ICON INDICATION LED off Slow blinking Fast blinking LED on steady STATUS Remote control in operation Communication between Tx/Rx (together with LED flashing, keyboard locked) Remote control stopped...

  • Page 17: Recyclability

     REMOTE CONTROL RUNNER USER MANUAL 11. RECYCLABILITY INFORMATION FOR THE CORRECT MANAGEMENT OF ELECTRICAL WASTE AND ELECTRONIC EQUIPMENT (RAEE) At the end of the lifetime of the device, it must not be disposed together with general waste. It can be delivered, free of charge, to specific collection centers, differentiated by local authorities, or distributors that provide this service.
  • Page 18  REMOTE CONTROL RUNNER USER MANUAL www.itowa.com SINDITO, S.L. Faraday, 159 08224 Terrassa (Barcelona) España Tel. +34 93 733 98 50...
