- Page 1 Cochlear Implants FineTuner Echo User Manual...
-
Page 3: Table Of Contents
Indications........................3 Contraindications ......................3 3. FineTuner Echo ..................... 4 System components......................4 Using the FineTuner Echo for the first time ..............6 FineTuner Echo keys .....................8 FineTuner Echo display ....................9 Additional functions of your FineTuner Echo ............. 12 Wearing options for your FineTuner Echo ..............13 4. -
Page 4: Introduction
(e.g. changing batteries). The user of the FineTuner Echo does not need any special skills or elevated level of education, however, for young children and those who, for a variety of reasons, lack the ability to appropriately handle and manipulate small parts, the parents and/or carer shall operate the device. -
Page 5: Intended Use - Indications - Contraindications
MED‑EL Cochlear Implant System are applicable. Contraindications A patient must not receive a FineTuner Echo if the individual is known to be intolerant of the materials used in the FineTuner Echo. The FineTuner Echo is not intended to be used in environments where RF transmissions are prohibited. -
Page 6: Finetuner Echo

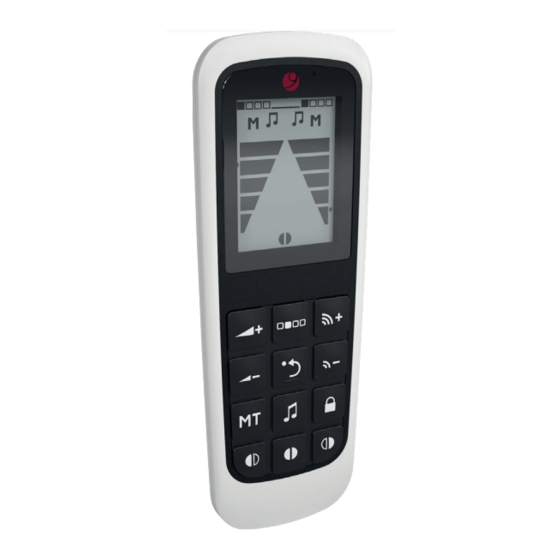

3. FineTuner Echo The FineTuner Echo is a small and light‑weight remote control for compatible MED‑EL audio processors. The FineTuner Echo is provided to help you optimally use your audio processor in changing daily listening situations. Its ergonomic design and display facilitate changing the settings of your audio processor. - Page 7 FineTuner Echo Front view Green light Display Keypad Back view Battery lid Silicone ring Battery Battery compartment Fig. 2 FineTuner Echo overview...
-
Page 8: Using The Finetuner Echo For The First Time
FineTuner Echo Using the FineTuner Echo for the first time Clean the FineTuner Echo screen with the microfibre cloth. 2. To apply the display protection foil, pull off a small section of the backing and attach the adhesive side to the top part of the display. Slowly pull off the backing from the foil while carefully pressing out any trapped air bubbles with the microfi‑... - Page 9 To pair the FineTuner Echo, proceed as follows: Switch off the audio processor. 2. Place the coil on the battery lid of the FineTuner Echo (Fig. 4). 3. Switch on the audio processor. 4. If the pairing process was successful, a � appears next to the pairing screen. If the pairing process was not successful, a �...
-
Page 10: Finetuner Echo Keys
Processor selection key Selects right audio processor Your FineTuner Echo does not have an ON/OFF switch. If you want to switch off the device completely, you must remove the battery. Please note that the FineTuner Echo may still show the last screen even after removing the battery. -
Page 11: Finetuner Echo Display
FineTuner Echo FineTuner Echo display The FineTuner Echo has a display to provide direct feedback. The display reflects only actions executed with the keys of the FineTuner Echo. It does not update automatically. Status symbols Symbol Meaning Required action Bilateral mode: right side selected... - Page 12 FineTuner Echo battery low Change battery of FineTuner Echo Pairing Screen: The Pair your FineTuner Echo See chapter Using the FineTuner Echo must FineTuner Echo for the first be paired with an audio time for instructions processor Screen indicating successful None pairing Screen indicating Repeat the pairing process.
- Page 13 (e.g. the displayed. When you try to FineTuner Echo may be switch settings again, the too far away from the FineTuner Echo will indicate if audio processor) it is within range. • The audio processor did not respond to the last command •...
-
Page 14: Additional Functions Of Your Finetuner Echo
FineTuner Echo Additional functions of your FineTuner Echo Testing your audio processor You can use your FineTuner Echo to test proper function of the audio processor microphones: Switch on the audio processor. 2. Place the coil over the battery compartment of FineTuner Echo (see Fig. 5). -
Page 15: Wearing Options For Your Finetuner Echo
Do not use the lanyard with children under 3 years to avoid the risk of strangu‑ lation. Keep the lanyard out of the reach of children under 3 years. Due to its smaller size, the FineTuner Echo can also be worn comfortably in a pocket. -
Page 16: General Precautions And Warnings
+5 °C to +40 °C, e.g. because it was stored in a cool or hot place, put the FineTuner Echo in a place with room temperature (typ. +20 °C to +25 °C) and wait at least 30 minutes before you use the FineTuner Echo. This ensures that the FineTuner Echo is not operated outside its defined operating temperature range. - Page 17 Do not use the FineTuner Echo in environments where radio frequency (RF) trans‑ missions are prohibited. • Do not use the FineTuner Echo in the vicinity of strong ionising radiation (e.g. x‑ray machines) or electromagnetic fields (e.g. MRI machines). •...
-
Page 18: Care And Maintenance
• Do not drop the device. • Do not try to repair electronic parts of your FineTuner Echo and do not try to open the device as this invalidates the warranty. • Store the FineTuner Echo in a safe place when not in use. -
Page 19: Battery
• If you are not going to use your FineTuner Echo for an extended period of time, you should remove the battery and dispose of or store it separately. •... - Page 20 Care and maintenance �� WARNING Misuse may result in the battery causing heat, smoke, rupture, flame or leakage which could lead to injury. Swallowing batteries could cause suffocation or internal injuries. �� To prevent children from swallowing or choking on batteries, always keep new and used batteries out of the reach of children.
- Page 21 To change the battery, proceed as follows: Open the lid on the back of the FineTuner Echo. Use a coin to turn the lid until the arrow on the lid meets the � symbol on the housing (Fig. 7.1).
-
Page 22: Troubleshooting
For assistance and reporting of issues associated with this MED‑EL product or to report unexpected operation or events, contact your healthcare provider or local MED‑EL representative. If the audio processor does not respond to FineTuner Echo commands, consult the following table for potential reasons and solutions. Display... - Page 23 When the audio processor is switched on again it will automatically start with the � (microphone) setting activated. If you press � or � for more than 3 seconds, your FineTuner Echo and the • respective audio processor will be unpaired. Repeat the pairing process described in chapter FineTuner Echo, Using the FineTuner Echo for the first time.
-
Page 24: Technical Data
Technical data 7. Technical data FineTuner Echo Model FineTuner Echo (Ma010201) Dimensions Length: 104 mm Width: 38 mm Height: 11 mm Weight 32 g (incl. battery) Mode of operation Continuous Controls/Indicators • Keypad with 12 keys • Display • 1 green LED Power supply •... - Page 25 There are no actions needed to maintain basic safety with regard to electromagnetic disturbances for the expected service life. Applied parts The surface of the FineTuner Echo, which is in contact with the user, is a Type BF Applied Part. Degree of protection IP52: Dust‑protected.
-
Page 26: Regulatory Statements
Technical data Regulatory statements Applicable in Canada only: Model: FineTuner Echo (Ma010201) IC: 11986A‑FTE This device contains licence‑exempt transmitter(s)/receiver(s) that comply with Inno‑ vation, Science and Economic Development Canada’s licence‑exempt RSS(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. -
Page 27: Symbols
2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.medel.com/compliance Type BF (IEC 60601–1/EN 60601‑1): The surface of the FineTuner Echo, which is in contact with the user, is a Type BF Applied Part Manufacturer... - Page 28 Technical data Serial number Catalogue number Refer to instructions for use Not suitable for children under 3 years Caution, consult the instructions for use (manual) for important cautionary information Non‑ionizing radiation Fragile; handle with care Information indicating a hazardous situation that, if not avoided, could result in death or serious injury Information indicating a hazardous situation that, if not avoided, could result in inconvenience or minor injury for the user and/or property damage...
-
Page 29: Guidance And Manufacturer's Declaration
Electromagnetic emissions – for all equipment and systems The FineTuner Echo is intended for use in the home healthcare environment. The customer or the user of the FineTuner Echo should assure that it is used in such an environment. Emissions test Compliance Electromagnetic environment –... - Page 30 Electromagnetic immunity – for all equipment and systems The FineTuner Echo is intended for use in the home healthcare environment. The customer or the user of the FineTuner Echo should assure that it is used in such an environment. Immunity test IEC 60601 test level...
- Page 31 Electromagnetic immunity – for equipment and systems that are not life‑supporting The FineTuner Echo is intended for use in the home healthcare environment. The customer or the user of the FineTuner Echo should assure that it is used in such an environment.
-
Page 32: Appendices
Appendices 8. Appendices Supplies and accessories Description Model number¹ Battery CR2032² 34307 For ordering replacement parts please contact your local MED‑EL representative. Warranty Please refer to the accompanying Warranty Statement for information on our warranty provisions. Manufacturer address MED‑EL Elektromedizinische Geräte GmbH Worldwide Headquarters Fürstenweg 77a 6020 Innsbruck, Austria... -
Page 33: Contact Med-El
Contact MED‑EL 9. Contact MED‑EL Please refer to the accompanying Contact Sheet for your local office. - Page 36 MED‑EL Elektromedizinische Geräte GmbH Fürstenweg 77a, 6020 Innsbruck, Austria offi ce@medel.com medel.com...
