MED-EL SONNET 2 Quick Manual

Ci and eas audio processor
Hide thumbs Also See for SONNET 2:
Table of Contents

Advertisement

Quick Links

SONNET 2
CI and EAS Audio Processor
Quick Guide
AW37283_1.0 (English)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SONNET 2 and is the answer not in the manual?

Questions and answers

Related Manuals for MED-EL SONNET 2

Summary of Contents for MED-EL SONNET 2

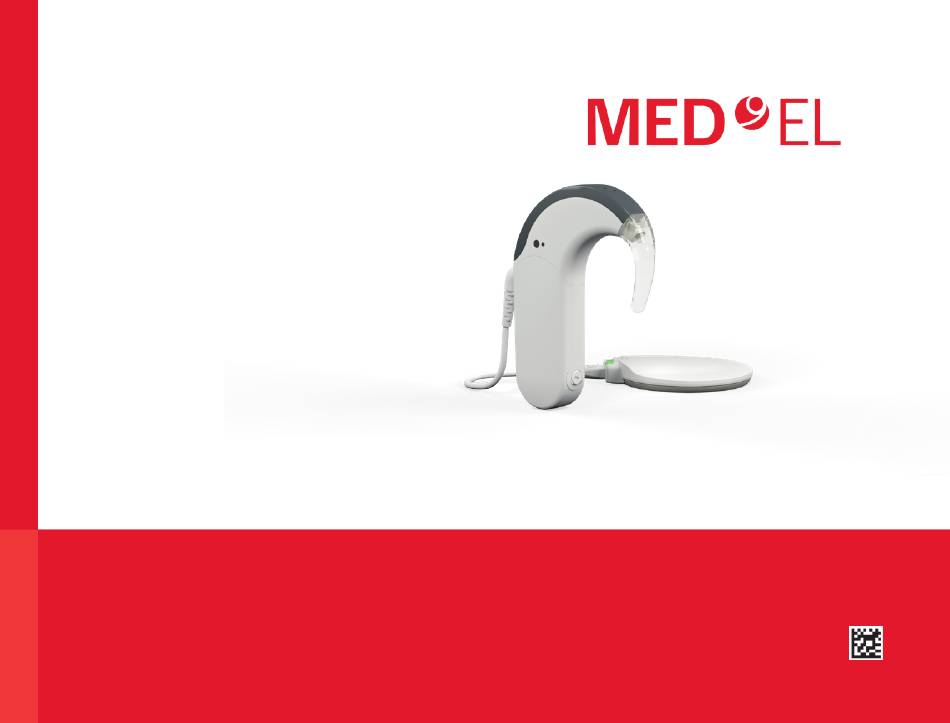

  • Page 1 SONNET 2 CI and EAS Audio Processor Quick Guide AW37283_1.0 (English)

  • Page 2: Table Of Contents

    Troubleshooting ..... 34 The SONNET 2 Quick Guide contains easy-to-use instructions to get you started with your SONNET 2. For detailed information on the intended use, indications, contraindications, warnings and precautions of the SONNET 2 audio processor, please refer to the instructions for use.

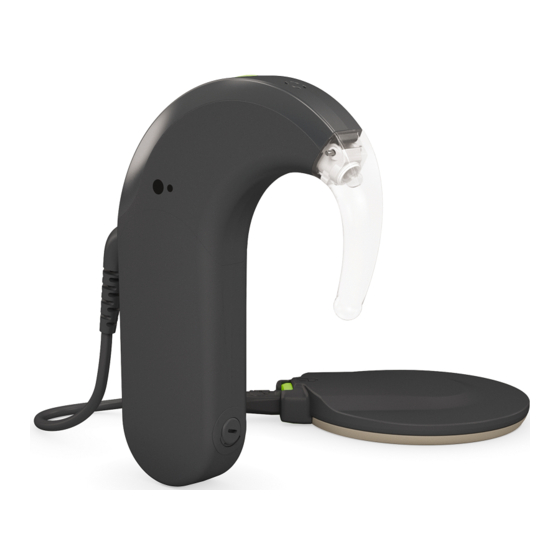

  • Page 3 SONNET 2 CI and EAS Audio Processor Processor Indicator Light Earhook Microphones DL-Coil Control Unit Microphone Cover Battery Pack Earhook Earhook DL-Coil Cable DL-Coil Battery Pack Indicator Light Cover Lock Air Inlets...

  • Page 4: Rechargeable Batteries

    SONNET 2 Assembling SONNET 2 With Rechargeable Batteries To remove, press the tip of the Click! release lever. Attach the rechargeable battery Note the mechanism that secures adapter to the control unit. the rechargeable battery adapter to the control unit.
  • Page 5 Click! Insert the rechargeable Gently press the rechargeable battery at an angle. The side battery back into the adapter with the higher lip should be until it clicks into place. facing towards the earhook.
  • Page 6 Make sure that the battery pack cover lock is in the unlocked position. Slide the battery pack cover over the rechargeable battery adapter. Your SONNET 2 is now switched on. Plug the coil cable Battery Pack into the control unit.
  • Page 7 To remove the rechargeable battery, simply To see which batteries you can reverse steps 3 and 2. The rechargeable use with your SONNET 2, see the battery adapter does not need to be removed Battery Overview on page 25. when changing the rechargeable battery.

  • Page 8: Disposable Batteries

    SONNET 2 Assembling SONNET 2 With Disposable Batteries Click! To remove, press the tip of the release lever. Note the mechanism that secures Attach the battery pack frame the control unit to the frame. to the control unit.
  • Page 9 (+) poles facing out. Make sure the battery pack cover lock is in the unlocked position. Slide the battery pack cover over the battery pack frame. Your SONNET 2 is Plug the coil cable into now switched on. the control unit. Battery Pack...

  • Page 10: Dl-Coil

    SONNET 2 Changing the Coil Cover DL-Coil Cover DL-Coil Magnet DL-Coil Base DL-Coil Indicator Light DL-Coil Cable...
  • Page 11 Insert your fingernail or the plastic Insert the coil cable into screwdriver into the front of the the base. DL-Coil cover, and slide around the base to gently detach it. Place the new cover over the base, and gently press together until they snap into place.

  • Page 12: Earhook

    Attach new earhook, and lock out with the supplied pin removal tool. into place with the earhook pin. Remove the earhook by gently If you have a SONNET 2 EAS, a hearing professional will fit your pushing it down. earhook with an earmould.

  • Page 13: Microphone Cover

    Gently lever the Starting at the earhook cover away from end, press down until the the control unit. cover snaps into place. The cover should be changed every three months to maintain best possible hearing with SONNET 2.

  • Page 14: Waterwear

    SONNET 2 Attaching WaterWear Make your SONNET 2 waterproof with WaterWear, and enjoy the water activities you love. – WaterWear makes your processor completely waterproof. – Can be used in fresh-, salt-, and chlorinated water. – The WaterWear covers are reusable.

  • Page 15: Babywear

    SONNET 2 Attaching BabyWear 28 cm DL-Coil Cable Earhook Cover Attachment Clip...
  • Page 16 Slide the silicone ring of Slide the end of the 28 cm Plug the coil cable the attachment clip over coil cable through the ring into SONNET 2. the battery pack cover in the attachment clip. with the small cable ring to the back.
  • Page 17 Slide the battery pack cover over Replace the earhook with the the battery pack. Lock into place earhook cover (see page 10). by turning the lock with the plastic screwdriver.

  • Page 18: Activewear

    SONNET 2 Attaching ActiveWear ActiveWear Connector ActiveWear Connector Cover Cover Lock Attachment Clip ActiveWear Battery Pack Connector...
  • Page 19 Unlocked Locked Attach the ActiveWear Slide the cover over the connector to the control unit. connector and lock into place.
  • Page 20 Unlocked Locked Attach any SONNET 2 battery Slide the regular battery pack option to the ActiveWear battery cover over the battery pack, and pack connector. lock into place.
  • Page 21 Slide the silicone ring of the attachment clip over the battery pack cover. The hole in the attachment clip should snap onto the button on the battery pack connector. Attach the clip to clothing.

  • Page 22: Finetuner Echo

    SONNET 2 FineTuner Echo Volume Increase or decrease volume Sensitivity Increase or decrease audio sensitivity Programme Selection Choose a programme Default Set volume and audio sensitivity to default setting as determined by your audiologist Input Selection Select input from microphone, telecoil or...
  • Page 23 Pairing the FineTuner Echo Changing the Battery 1. Switch off SONNET 2. Place the coil on 1. Using a coin, turn the battery the back of the FineTuner Echo. compartment cover until it points to the � symbol. 2. Switch on SONNET 2. It will pair automatically with the FineTuner Echo.

  • Page 24: Audiokey

    SONNET 2 Using AudioKey The AudioKey app can be used to control your SONNET 2 from your phone, and has several other useful features. – Control the volume, audio sensitivity, and other settings straight from your phone. – Find your lost SONNET 2 with the “Find My Processor”...

  • Page 25: Audiolink

    Connecting via AudioLink AudioLink is a pocket-sized universal connectivity device that can be used to wirelessly stream phone calls, audio, and music to your SONNET 2. – Make phone calls from your Android, iPhone or any other smartphone. – Listen to music from your phone or music device.

  • Page 26: Wireless Microphone System

    Refer to the user manual for your wireless microphone system for instructions on changing settings. Other Connectivity Options: SONNET 2 makes it easy to connect, wherever you are. For more details about Bluetooth neckloops, digital wireless systems, telecoils, and direct audio input, ®...

  • Page 27: Flight Mode

    SONNET 2 Activating the Flight Mode Activate the flight mode whenever you board a flight or enter an environment where RF transmissions are prohibited. Switch off the audio processor and wait 2 seconds. Switch on the audio processor and wait 2 seconds.

  • Page 28: Battery Overview

    SONNET 2 Battery Overview SONNET 2 comes with flexible battery options. The table below gives you an overview of all the battery types that can be used with SONNET 2. Maximum Compatible battery life with WaterWear 675 Zinc-Air Batteries 60 hours...

  • Page 29: Processor Indicator Light

    FineTuner Echo command has been successfully received. Programme Change Programme 1 is selected. Programme 2 is selected. Programme 3 is selected. Programme 4 is selected. Status If the optional status light has been activated: SONNET 2 is initialised and working. Scale in seconds...
  • Page 30 Error Pattern Problem Solution Temporary error or 1. Switch SONNET 2 off. electronic malfunction 2. Switch SONNET 2 on. The setting you selected has not Select another setting. yet been programmed, or there has been a programming failure. Temporary error or 1.
  • Page 31 Warning Status Solution Batteries are empty. Change the batteries. Either minimum or maximum volume Adjust volume or or audio sensitivity has been reached sensitivity if necessary. Flight Mode Confirmation Pattern Flight mode successfully activated Scale in seconds...

  • Page 32: Dl-Coil Indicator Light

    SONNET 2 DL-Coil Indicator Light Confirmation The DL-Coil, DL-Coil cable, and SONNET 2 are working; your SONNET 2 and implant are successfully connected (applicable to SYNCHRONY, CONCERTO, SONATA, and PULSAR implants). The DL-Coil, DL-Coil Cable, and SONNET 2 are working (applicable to C40+ and C40 implants).
  • Page 33 Position the DL-Coil over the implant. The DL-Coil and implant are disconnected. 5 min SONNET 2 is in microphone Switch SONNET 2 off and on again. monitoring mode. The DL-Coil is positioned Position the DL-Coil over over the wrong implant.

  • Page 34: Care And Maintenance

    SONNET 2 and extend its life. General Cleaning Clean SONNET 2 regularly by wiping it with a soft, damp cloth. Do not use cleaning solutions. Use extra care when cleaning small parts such as the battery contacts and microphone covers.
  • Page 35 Drying Use the drying kit every night to allow SONNET 2 to dry out completely. Disposable batteries may remain in the battery pack frame but you should remove the battery pack cover. Do not put rechargeable batteries into the drying kit.

  • Page 36: Troubleshooting

    1. Change the batteries of your SONNET 2. If that does not solve the problem, go to 2. 2. Disassemble your SONNET 2 into five parts: control unit, battery pack frame, battery pack cover, DL-Coil cable, and DL-Coil.
  • Page 37 7. Adjust the volume setting on your FineTuner Echo. If the green light still does not flicker, go to 8. 8. Replace the DL-Coil cable with a new one, and try again. 9. If your SONNET 2 is still not working correctly, contact your CI centre for assistance.
  • Page 38 Notes...
  • Page 40 MED-EL Elektromedizinische Geräte GmbH MED-EL Elektromedizinische Geräte GmbH Fürstenweg 77a, 6020 Innsbruck, Austria Fürstenweg 77a, 6020 Innsbruck, Austria offi ce@medel.com offi ce@medel.com medel.com medel.com...
