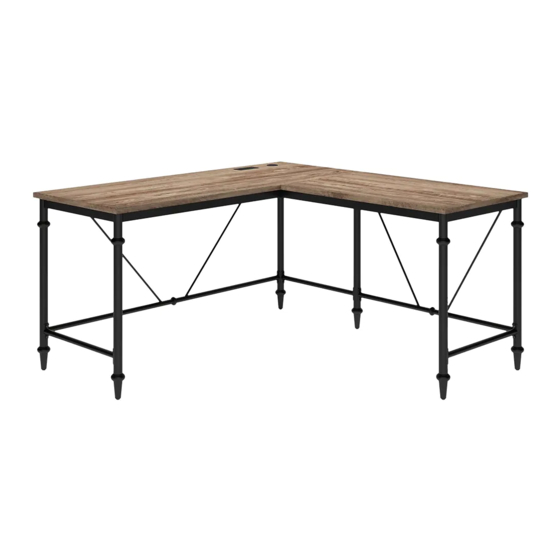

Thomasville Breslyn SPLS-BRLD-TV Manual

L desk with powerstrip
Hide thumbs

Advertisement

Quick Links

Download this manual
Breslyn L Desk with Powerstrip
ADULT ASSEMBLY REQUIRED DUE TO THE PRESENCE OF SMALL PARTS, SHARP
POINTS, SHARP EDGES AS RECEIVED
If you have any questions regarding assembly or if parts are missing, DO NOT return this item to the
store where it was purchased. Please call our toll-free customer service number and have your
instructions and parts list ready to provide the model name, part name or factory number:
Or visit our web site 24 hours a day, 7 days a week for product assistance at
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.
Thomasville™ is a trademark of HHG IPCo, LLC. ©HHG IPCo, LLC. thomasville.com
Model # SPLS-BRLD-TV
Pacific Standard Time: 8:30 a.m. - 4:30 p.m., Monday - Friday
www.whalenfurniture.com
Or e-mail your request to parts@whalenfurniture.com
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Date 2021-02-24
1-866-942-5362
Rev. 0001-A
LOT NUMBER:
DATE PURCHASED: /
/

Advertisement

loading
Need help?

Need help?

Do you have a question about the Breslyn SPLS-BRLD-TV and is the answer not in the manual?

Questions and answers

Related Manuals for Thomasville Breslyn SPLS-BRLD-TV

Summary of Contents for Thomasville Breslyn SPLS-BRLD-TV

  • Page 1 Or visit our web site 24 hours a day, 7 days a week for product assistance at www.whalenfurniture.com Or e-mail your request to parts@whalenfurniture.com THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. Date 2021-02-24 Rev. 0001-A Thomasville™ is a trademark of HHG IPCo, LLC. ©HHG IPCo, LLC. thomasville.com...

  • Page 2: Special Note

    M A X I M U M R E C O M M E N D E D W E I G H T L O A D S MANUFACTURER: Whalen Furniture Manufacturing CATALOG: Breslyn L Desk with Powerstrip MODEL # SPLS-BRLD-TV MAXIMUM LOAD 90.7 kg / 200 lb.
  • Page 3 FURNITURE POWER DISTRIBUTION CENTER IMPORTANT SAFETY INSTRUCTIONS Carefully read all instructions installing and operating fixture IF YOU HAVE ANY QUESTIONS REGARDING THE PROPER INSTALLATION CONSULT A QUALIFIED ELECTRICIAN. TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK OR INJURY TO PERSONS, PLEASE FOLLOW THE NEXT: ...

  • Page 4: Specifications

    Furniture Power Distribution Unit User Guide Please read this user guide before installing and using your power distribution Center. INTRODUCTION This device complies with Part 15 of the FCC Rules. The integrated power and USB center offer 480 Mbps Operation is subject to the following two conditions: (1) high transmission rate and can connect up to three This device may not cause harmful interference, and (2) devices, such as a digital camera, MP3 player, cell...
  • Page 5 Parts and Hardware List Please read completely through the instructions and verify that all listed parts and hardware are present before beginning assembly. A- Desk Top (Qty. 1) B- Return Top (Qty. 1) C- Desk Left Side Frame (Qty. 1) D- Desk Right Side Frame (Qty.
  • Page 6 Parts and Hardware List Please read completely through the instructions and verify that all listed parts and hardware are present before beginning assembly. (1) 1/4” x 15 mm Bolt (2) 1/4” x 30 mm Bolt (3) 1/4” x 55 mm Bolt (Qty.
  • Page 7 Assembly Instructions NOTE: Please do not fully tighten all bolts until you finish assembling all parts. Once assembled, go back and fully tighten all bolts. This will make the assembly easier. 1. Unpack the unit and confirm that you have all the hardware and required parts. Assemble the unit on a carpeted floor or the empty carton to avoid any scratch.
  • Page 8 Assembly Instructions 4. Attach the Return Bottom Stretcher (K) between the Desk Right Side Frame (D) and Return Side Frame (E) with four 15 mm Bolts (1). DO NOT fully tighten the Bolts. The mounting holes for The mounting holes for cord clip cord clip 5.
  • Page 9 Assembly Instructions 7. Align and attach Return Supports (M) to the Return Back Upper Stretcher (H) with two 15 mm Bolts (1). 8. Insert two 30 mm Bolts (2) through the Return Bottom Stretcher (K) and screw into the bottom thread inserts of the Return Supports (M).
  • Page 10 Assembly Instructions 12. Insert two 30 mm Bolts (2) through the Desk Bottom Stretcher (J) and screw into the bottom threaded inserts of the Desk Support (L). 13. Ask for assistant from another adult, position the Return Top (B) onto the previous assembly. Make sure that the mounting holes overlap the threaded inserts underneath the Return Top (B).
  • Page 11 Assembly Instructions 15. Fasten the Cord Clips (8) to the backside of the Desk Back Upper Stretcher (F) and the Return Back Upper Stretcher (H) with three 12 mm Screws (6) per Cord Clip (8). You can use the Cord Clip to help keep your cords organized.
  • Page 12 Assembly Instructions Power Center Floor Leveler 18. Position the unit at the desired location against a wall. If necessary, adjust the Floor Levelers at the bottom of the Side Frames (C, D and E) to level the unit. 19. The unit is now ready for use.

  • Page 13: Care And Maintenance

    Care and Maintenance  Use a soft, clean cloth that will not scratch the surface when dusting.  Gently rub the surface with a soft dry cloth, soft damp cloth, or soft damp cloth with neutral detergent, and then dry it well. ...
